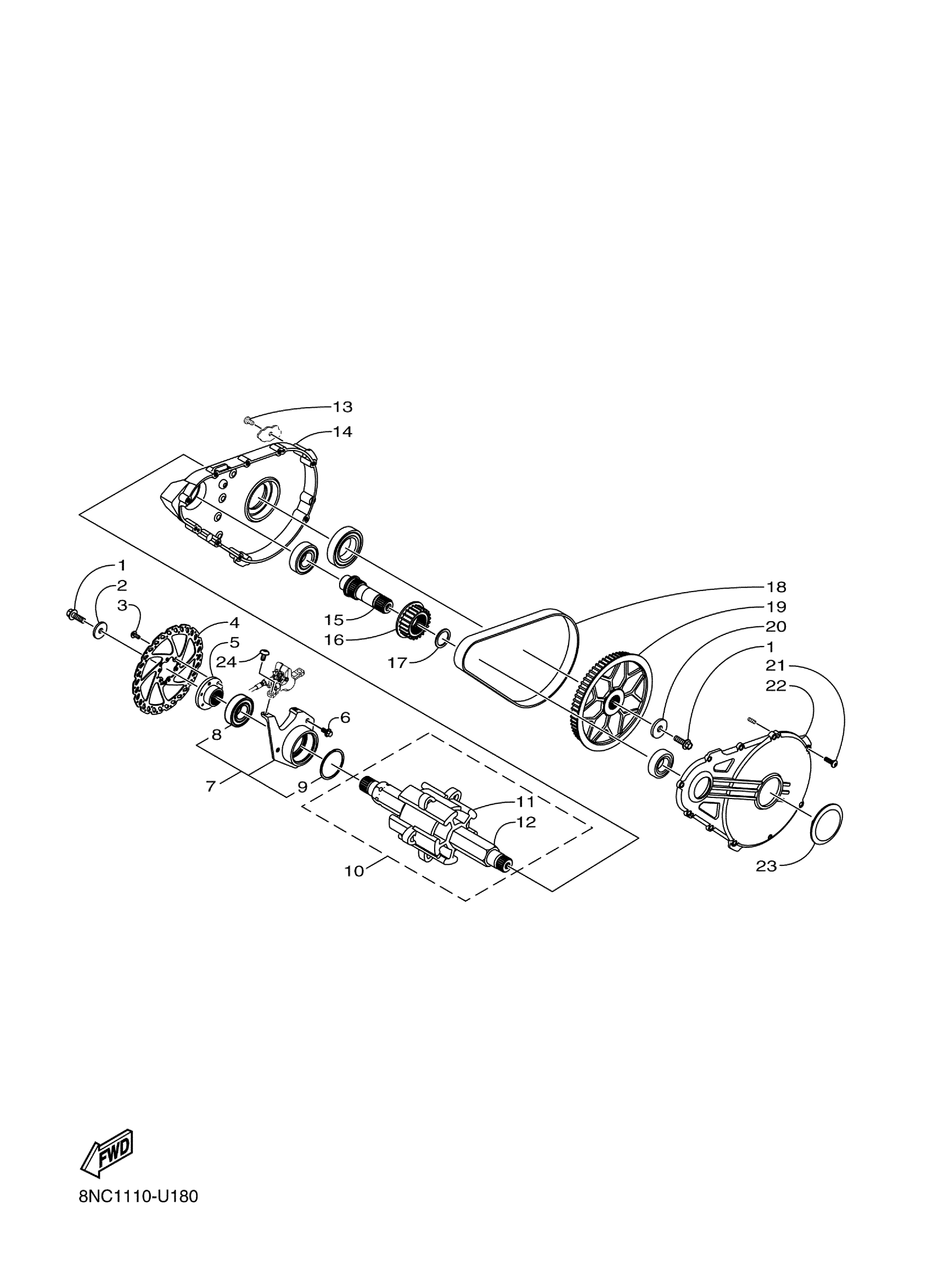

Yamaha SXR2NEMR (SNOSCOOT ES) 8NP31 2021 TRACK DRIVE 1 Diagram

#

Description
Price

1

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.48

2

WSHR, .343X1 1/8X.120TH Z&Y

8JM-RA401-00-00

$2.00

3

SCREW, M5X0.8X12

8JP-RA241-00-00

Unavailable

4

DISK BRAKE ASSY (R

8ML-F581U-00-00

Unavailable

5

HUB, FRONT

8ML-F5111-00-00

Unavailable

6

BOLT, FLG. M6X1.0X

8JP-RA179-00-00

Unavailable

7

HUB ASSY, FRONT

8ML-F5110-00-00

Unavailable

8

BEARING, 6206

8ML-RAG07-00-00

$28.06

9

CIRCLIP, 1

8ML-RAH03-00-00

Unavailable

10

FRONT AXLE SUB-ASS

8ML-G7501-00-00

Unavailable

11

WHEEL, SPROCKET 1

8ML-G7531-00-00

$37.42

12

AXLE, FRONT

8ML-G7511-00-00

$122.89

13

SCREW,M6-16

8KC-RA200-00-00

$3.05

14

CASE, GEAR

8ML-G6365-00-00

$142.56

15

SHAFT, DRIVE

8ML-G8242-00-00

$302.03

16

PULLEY 1

8ML-G6256-00-00

Unavailable

17

WASHER, 12X26X1

8ML-RA444-00-00

Unavailable

18

BELT

8ML-G6241-00-00

Unavailable

19

PULLEY 2

8ML-G6257-00-00

Unavailable

20

WASHER, PLAIN 11/3

8ML-RA401-00-00

Unavailable

21

SCREW

8ML-RA200-00-00

$0.03

22

COVER, HOUSING

8ML-G7721-00-00

Unavailable

23

PLUG

8ML-G7339-00-00

Unavailable

24

SCREW, M6X1.0X16

8JP-RA255-00-00

Unavailable
