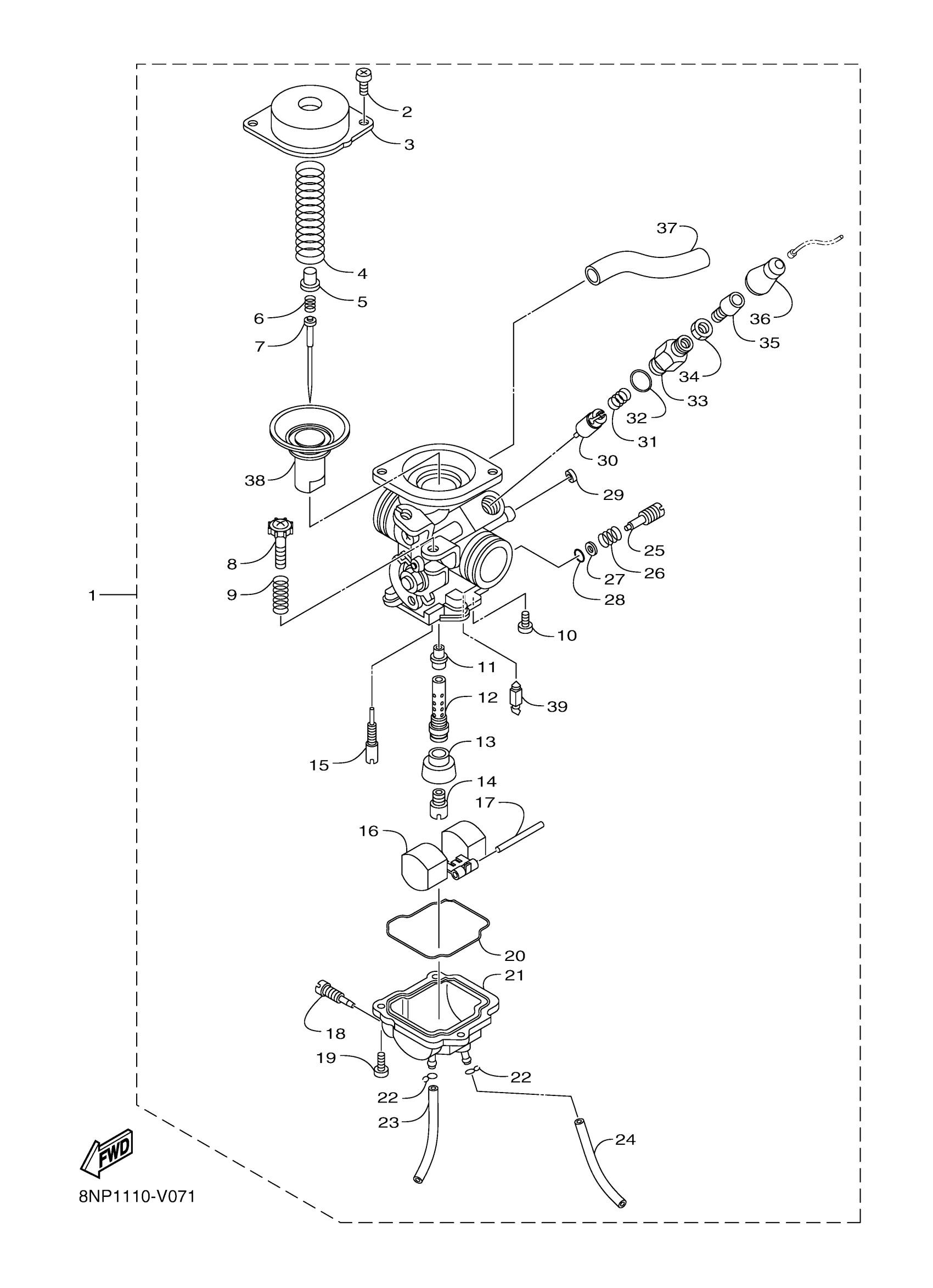

Yamaha SXR2NEMR (SNOSCOOT ES) 8NP31 2021 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
7DH-E4901-01-00
$561.99
2
GASKET, EXHAUST
98507-05008-00
$3.55
3
COVER, DIAPHRAGM
5LW-14958-00-00
Unavailable
4
SPRING
18D-14589-10-00
Unavailable
5
HOLDER
4VJ-14261-00-00
$3.69
6
SPRING
18C-14589-00-00
$7.99
7
. NEEDLE (4EDJ8)
3L2-14116-F2-00
Unavailable
7
NEEDLE (4EDJ9)
3L2-14116-F3-00
$53.99
8
IDLER ADJ.SCREW
2LN-14122-00-00
Unavailable
9
IDLE ADJ.SPRING
4BH-14934-00-00
$3.17
10
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
11
NOZZLE, MAIN
5P0-14141-13-00
Unavailable
12
HOLDER, NEEDEL JET
7DH-1496A-00-00
Unavailable
13
PLATE,BAFFLE
7DH-14153-00-00
Unavailable
14
JET, MAIN (#97.5)
3G2-1414A-70-00
$12.99
14
JET, MAIN (#102.5)
3G2-1414A-71-00
Unavailable
14
JET,MAIN #107.5
3G2-1423A-72-00
Unavailable
14
JET, MAIN (#100)
3G2-14231-20-00
Unavailable
14
JET, MAIN (#105)
3G2-14231-21-00
Unavailable
14
. JET, MAIN (#110)
3G2-14231-22-00
Unavailable
14
. JET, MAIN (#925)
3G2-1423A-69-00
Unavailable
15
JET, PILOT (# 15)
5P0-14142-15-00
Unavailable
15
JET, PILOT
5P0-14142-17-00
Unavailable
15
JET, PILOT (# 20)
5P0-14142-20-00
Unavailable
16
. FLOAT
18D-14985-00-00
Unavailable
17
PIN, FLOAT
353-14186-00-00
Unavailable
18
PLUG, DRAIN
5LW-14191-00-00
Unavailable
19
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
20
O-RING
5HK-14147-00-00
Unavailable
21
BODY, FLOAT CHAMBER
7DH-14981-00-00
Unavailable
22
. CLIP, PIPE
22F-14139-00-00
Unavailable
23
PIPE, OVER FLOW 1
1GC-14196-00-00
Unavailable
24
PIPE, OVER FLOW 1
7DH-14196-00-00
Unavailable
25
SCREW, PILOT
7DH-14923-10-00
Unavailable
26
SPRING
5K7-14134-00-00
Unavailable
27
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
28
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
29
NET, FILTER
5LW-14994-00-00
Unavailable
30
PLUNGER, STARTER
7DH-14171-00-00
Unavailable
31
SPRING, PLUNGER
127-14135-00-00
Unavailable
32
O-RING
1AE-14147-00-00
Unavailable
33
CAP, PLUNGER
8KX-14174-00-00
Unavailable
34
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
35
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
36
CAP
8A7-14169-00-00
Unavailable
37
PIPE
7DH-14197-00-00
Unavailable
38
DIAPHRAGM ASSY
7DH-14940-00-00
Unavailable
39
NEEDLE ASSY
5LW-14150-00-00
Unavailable
