- SXR2NELY (SNOSCOOT ES) 8NP11 2020
SHROUD WINDSHIELD

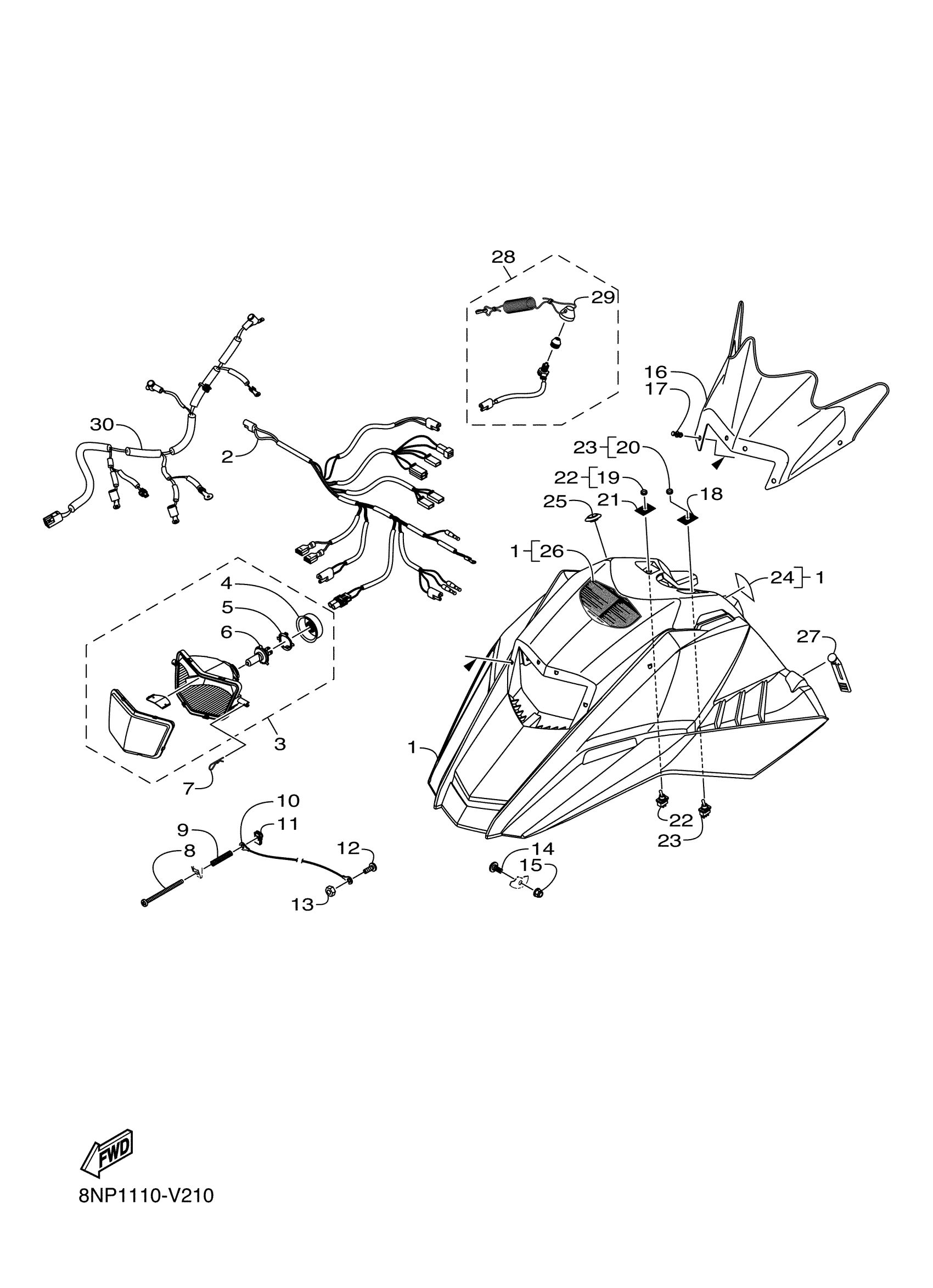

Yamaha SXR2NELY (SNOSCOOT ES) 8NP11 2020 SHROUD WINDSHIELD Diagram
#
1
SHROUD, WITH LABELS (SKY BLUE)
8ML-RAS30-61-00
Unavailable
2
WIRE HARNESS ASSY
8NC-H2590-00-00
Unavailable
3
HEADLIGHT UNIT ASS
8ML-H4310-00-00
Unavailable
4
COVER, SOCKET
8ML-H4397-00-00
$4.88
5
HOLDER BULB
8JP-H4393-00-00
$26.99
6
BULB, HEADLIGHT
8JR-H4314-00-00
$17.99
7
CLIP
8MV-H4374-00-00
$0.74
8
SCREW,10-24X2
8MV-RA210-00-00
Unavailable
9
SPRING, COMPRESSIO
8MV-RAD07-00-00
Unavailable
10
STOPPER, SHROUD
8NP-K7118-00-00
$13.49
11
NUT, CLIP M6
8JP-RA354-00-00
$0.96
12
SCREW
8JM-RA209-10-00
$1.96
13
NUT, SELF-LOCKING
8JM-RA319-00-00
Unavailable
14
SCREW, M6-1.0X18
8JP-RA253-00-00
$1.86
15
NUT, FLG. LOCKING
8MV-RA357-00-00
$0.38
16
WINDSHIELD COMP.
8ML-K7210-00-00
Unavailable
17
RIVET 2
8ML-RA511-01-00
Unavailable
18
LABEL
8ML-K7229-00-00
Unavailable
19
NUT, 1
8JM-RA345-00-00
Unavailable
20
NUT, 1
8JM-RA345-00-00
Unavailable
21
LABEL
8MV-K7229-00-00
Unavailable
22
SWITCH ASSY
8JM-H1860-00-00
Unavailable
23
SWITCH ASSY
8ML-H1860-00-00
Unavailable
24
LABEL, CAUTION
8ML-F1696-00-00
Unavailable
24
LABEL, CAUTION 2
8ML-F1697-00-00
Unavailable
25
CAP, PLUG
8NP-H2371-00-00
Unavailable
26
LABEL, WARNING 1
8ML-K7761-00-00
Unavailable
27
STRAP, HOLD DOWN-HOOD
8JM-K7171-00-00
Unavailable
28
STOP SWITCH
8NC-H6284-00-00
Unavailable
29
. CAP, SWITCH
8KN-H2552-00-00
Unavailable
30
WIRE HARNESS
8NC-H2105-00-00
Unavailable
