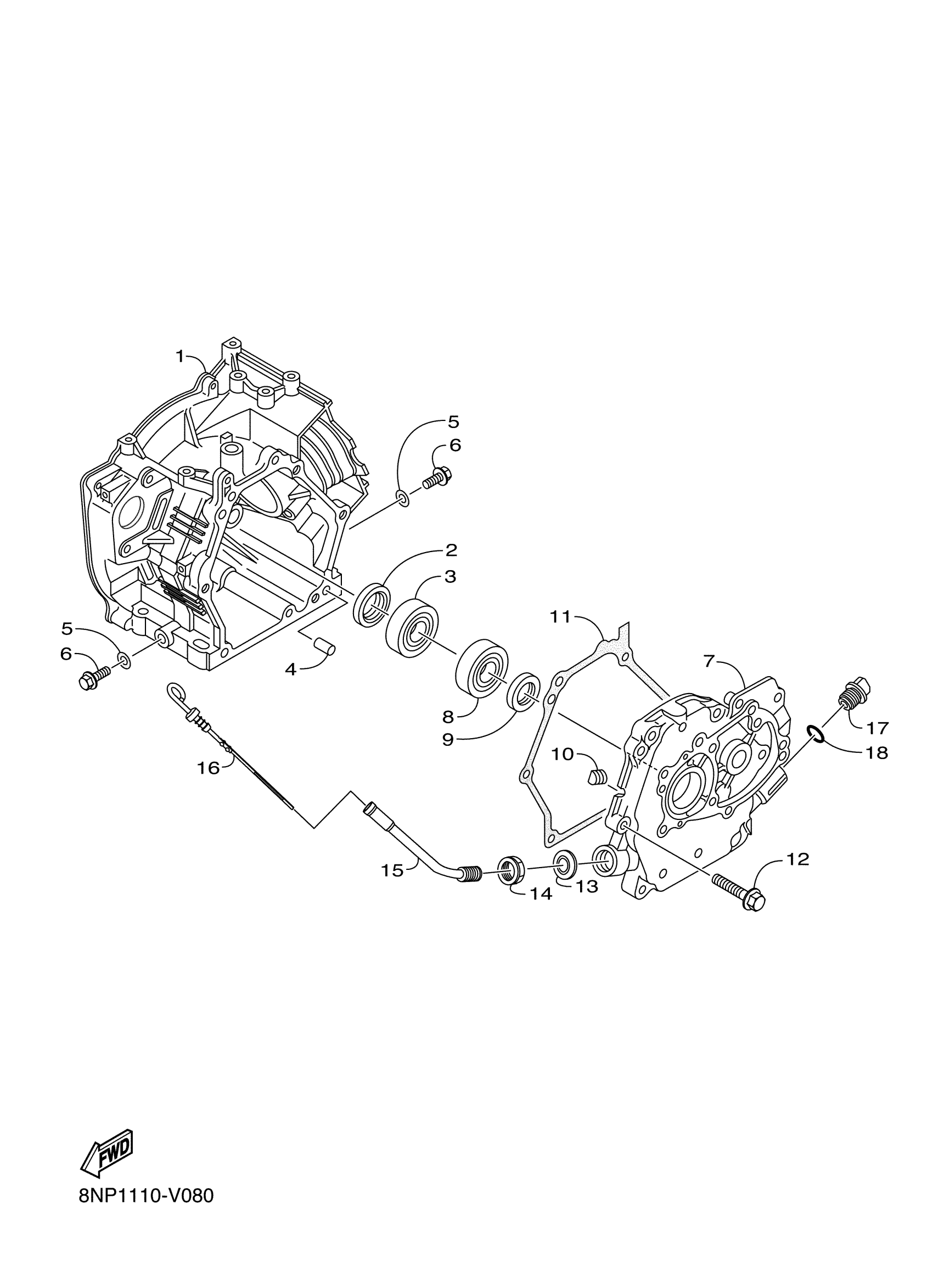

Yamaha SXR2NELY (SNOSCOOT ES) 8NP11 2020 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 2

7DH-E5121-50-00

Unavailable

2

OIL SEAL (25X40X5-256)

93102-25090-00

$11.19

3

BEARING

93306-206Y4-00

Unavailable

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

GASKET

90430-10801-00

$5.72

6

BOLT, FLANGE

95022-10016-00

$5.86

7

CRANKCASE COVER ASSY 1

7DH-E5410-00-00

$168.12

8

BEARING

93306-205XV-00

$60.00

9

OIL SEAL

93102-25805-00

$8.57

10

PLUG

90338-06800-00

$2.28

11

GASKET, CRANKCASE COVER 1

7CN-E5451-10-00

$14.37

12

BOLT, FLANGE

95822-08035-00

$2.69

13

OIL SEAL

8NC-E511A-10-00

$2.22

14

NUT

90170-20803-00

$4.68

15

. PIPE, OIL

7DH-E5112-00-00

$15.00

16

GAUGE, LEVEL

7DH-E5361-00-00

$25.00

17

PLUG, OIL LEVEL

7CN-E5362-00-00

Unavailable

18

O-RING

93210-13801-00

Unavailable
