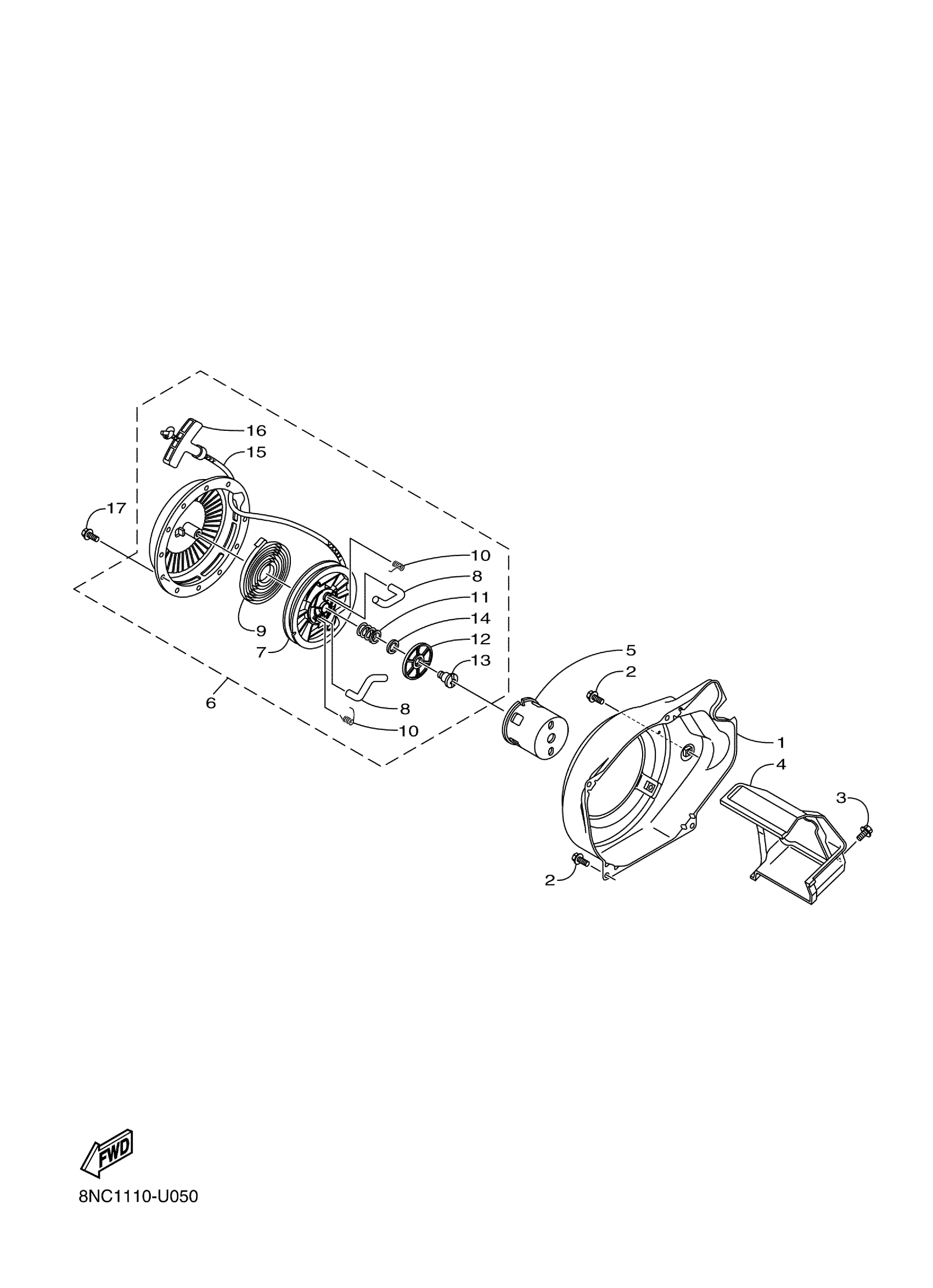

Yamaha SXR2NELY (SNOSCOOT ES) 8NP11 2020 AIR SHROUD STARTER Diagram

#

Description
Price

1

CASE, FAN

7CN-E2621-31-00

Unavailable

2

BOLT, FLANGE

95817-06012-00

$1.43

3

BOLT, FLANGE

95817-06012-00

$1.43

4

AIR SHROUD, CYLINDER 1

7CN-E2651-01-00

Unavailable

5

PULLEY, STARTER

7DH-E5723-00-00

$23.99

6

STARTER ASSY

7DH-E5710-30-00

Unavailable

7

DRUM, SHEAVE

7DH-E5714-01-00

Unavailable

8

PAWL, DRIVE

7DH-E5741-00-00

$7.99

9

SPRING, STARTER

7DH-E5713-00-00

$22.99

10

SPRING, RETURN

7DH-E5743-00-00

Unavailable

11

SPRING, FRICTION

7DH-E5715-00-00

$5.49

12

PLATE, DRIVE

7DH-E5716-00-00

Unavailable

13

SCREW

7DH-E5793-00-00

Unavailable

14

WASHER, THRUST

7DH-E5719-00-00

$8.99

15

. WIRE, STARTER

7DH-E5751-10-00

Unavailable

16

HANDLE, STARTER

7DH-E5755-00-00

Unavailable

17

BOLT, FLANGE

90105-068B9-00

Unavailable
