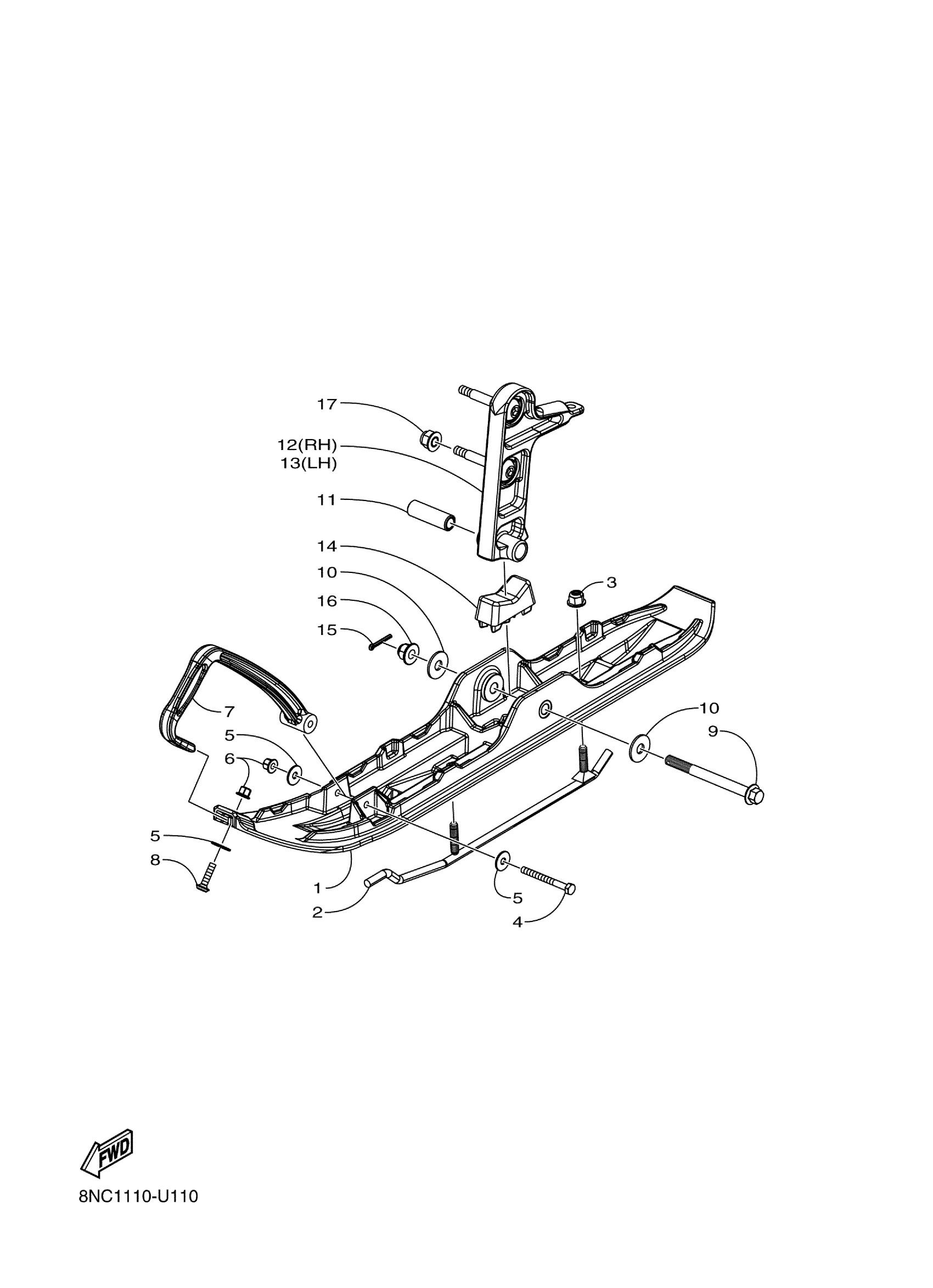

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 SKI Diagram

#

Description
Price

1

SKI COMP. 1 (DEEP PURPLISH BLUE SOLID E)

8ML-F3710-10-00

Unavailable

2

RUNNER 1

8ML-F3731-00-00

Unavailable

3

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

4

BOLT, REINFORCEMENT HEAD 2

8ML-F3756-00-00

Unavailable

5

WASHER 1

8ML-F3737-00-00

Unavailable

6

NUT

8ML-F3778-00-00

Unavailable

7

REINFORCEMENT, HEAD (DEEP PURPLISH BLUE SOLID E)

8ML-F3712-30-00

Unavailable

8

BOLT, REINFORCEMENT HEAD 1

8ML-F3755-00-00

Unavailable

9

BOLT, FLANGE M8-1.

8ML-RA100-00-00

Unavailable

10

WASHER, PLATE

90201-10043-00

$2.22

11

COLLAR, 9

8ML-RA702-00-00

$7.49

12

KNUCKLE, STEERING

8MV-F3521-10-00

$128.99

13

KNUCKLE, STEERING

8MV-F3511-10-00

Unavailable

14

STOPPER 1

8ML-F3743-10-00

Unavailable

15

PIN, 1

8JP-RAK01-00-00

$0.43

16

NUT

8ML-RA309-00-00

Unavailable

17

NUT, FLG. LOCKING

8MV-RA358-00-00

Unavailable
