- SXR2NEKO (SNOSCOOT ES) 8NC10 2019
SHROUD WINDSHIELD

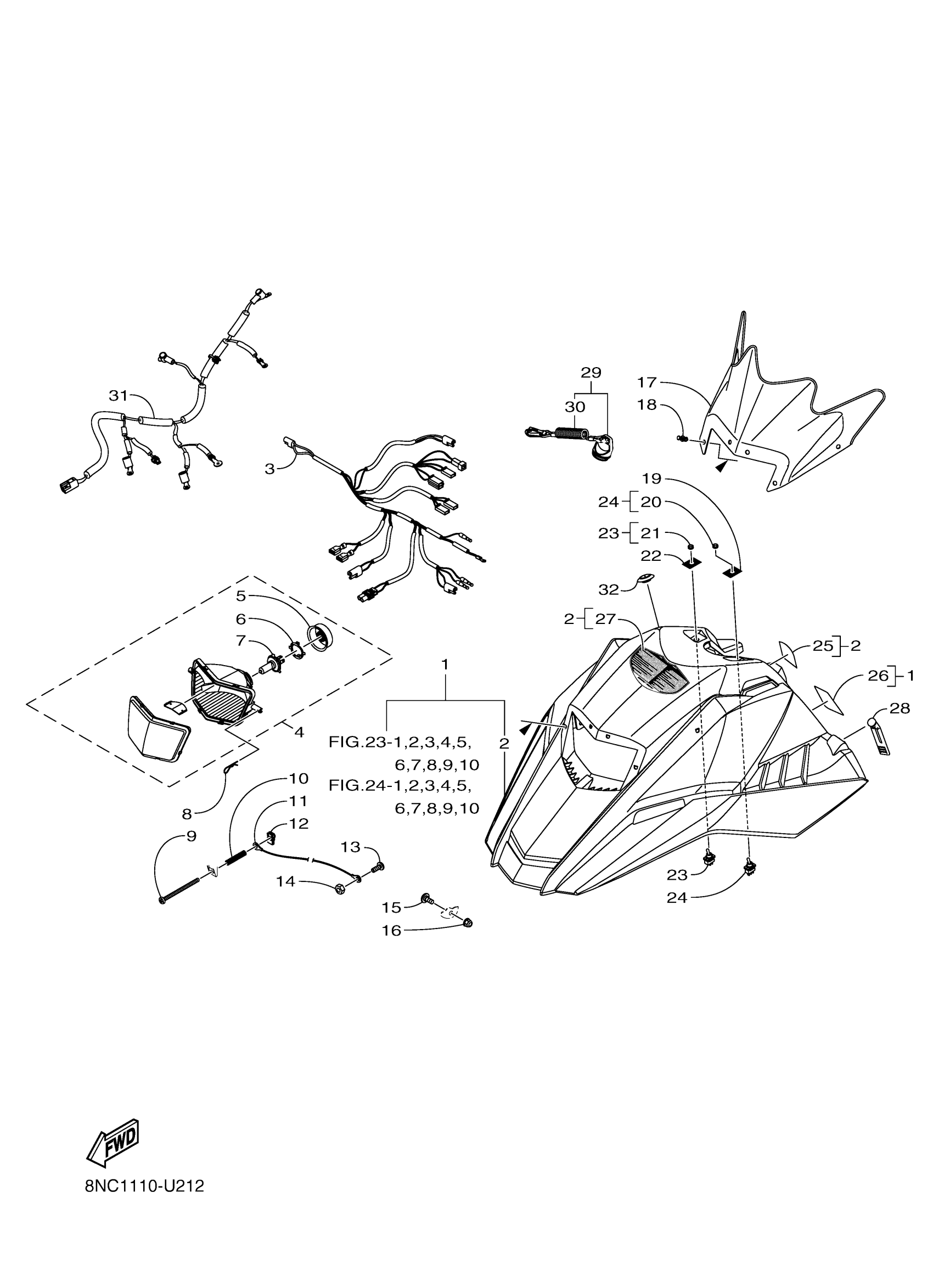

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 SHROUD WINDSHIELD Diagram
#
1
.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)
8ML-RAS30-11-00
Unavailable
2
.. SHROUD, WITH LABELS (DEEP PURPLISH BLUE SOLID E)
8ML-RAS30-11-00
Unavailable
3
WIRE HARNESS ASSY
8NC-H2590-00-00
Unavailable
4
HEADLIGHT UNIT ASS
8ML-H4310-00-00
Unavailable
5
COVER, SOCKET
8ML-H4397-00-00
$4.88
6
HOLDER BULB
8JP-H4393-00-00
$26.99
7
BULB, HEADLIGHT
8JR-H4314-00-00
$17.99
8
CLIP
8MV-H4374-00-00
$0.74
9
SCREW,10-24X2
8MV-RA210-00-00
Unavailable
10
SPRING, COMPRESSIO
8MV-RAD07-00-00
Unavailable
11
STOPPER, SHROUD
8MV-K7118-00-00
$33.99
12
NUT, CLIP M6
8JP-RA354-00-00
$0.96
13
SCREW
8JM-RA209-10-00
$1.96
14
NUT, SELF-LOCKING
8JM-RA319-00-00
Unavailable
15
SCREW, M6-1.0X18
8JP-RA253-00-00
$1.86
16
NUT, FLG. LOCKING
8MV-RA357-00-00
Unavailable
17
WINDSHIELD COMP.
8ML-K7210-00-00
Unavailable
18
RIVET 2
8ML-RA511-01-00
Unavailable
19
LABEL
8ML-K7229-00-00
Unavailable
20
NUT, 1
8JM-RA345-00-00
Unavailable
21
NUT, 1
8JM-RA345-00-00
Unavailable
22
LABEL
8MV-K7229-00-00
Unavailable
23
SWITCH ASSY
8JM-H1860-00-00
Unavailable
24
SWITCH ASSY
8ML-H1860-00-00
Unavailable
25
LABEL, CAUTION
8ML-F1696-00-00
Unavailable
25
LABEL, CAUTION 2
8ML-F1697-00-00
Unavailable
26
LABEL 2
8ML-F151E-00-00
Unavailable
26
LABEL 3
8ML-F151F-00-00
Unavailable
27
LABEL, WARNING 1
8ML-K7761-00-00
Unavailable
28
STRAP, HOLD DOWN-HOOD
8JM-K7171-00-00
Unavailable
29
STOP SWITCH
8NC-H6284-00-00
Unavailable
30
. CAP, SWITCH
8KN-H2552-00-00
Unavailable
31
WIRE HARNESS
8NC-H2105-00-00
Unavailable
32
PLUG, 1-1/4"
8JM-RA602-00-00
Unavailable
