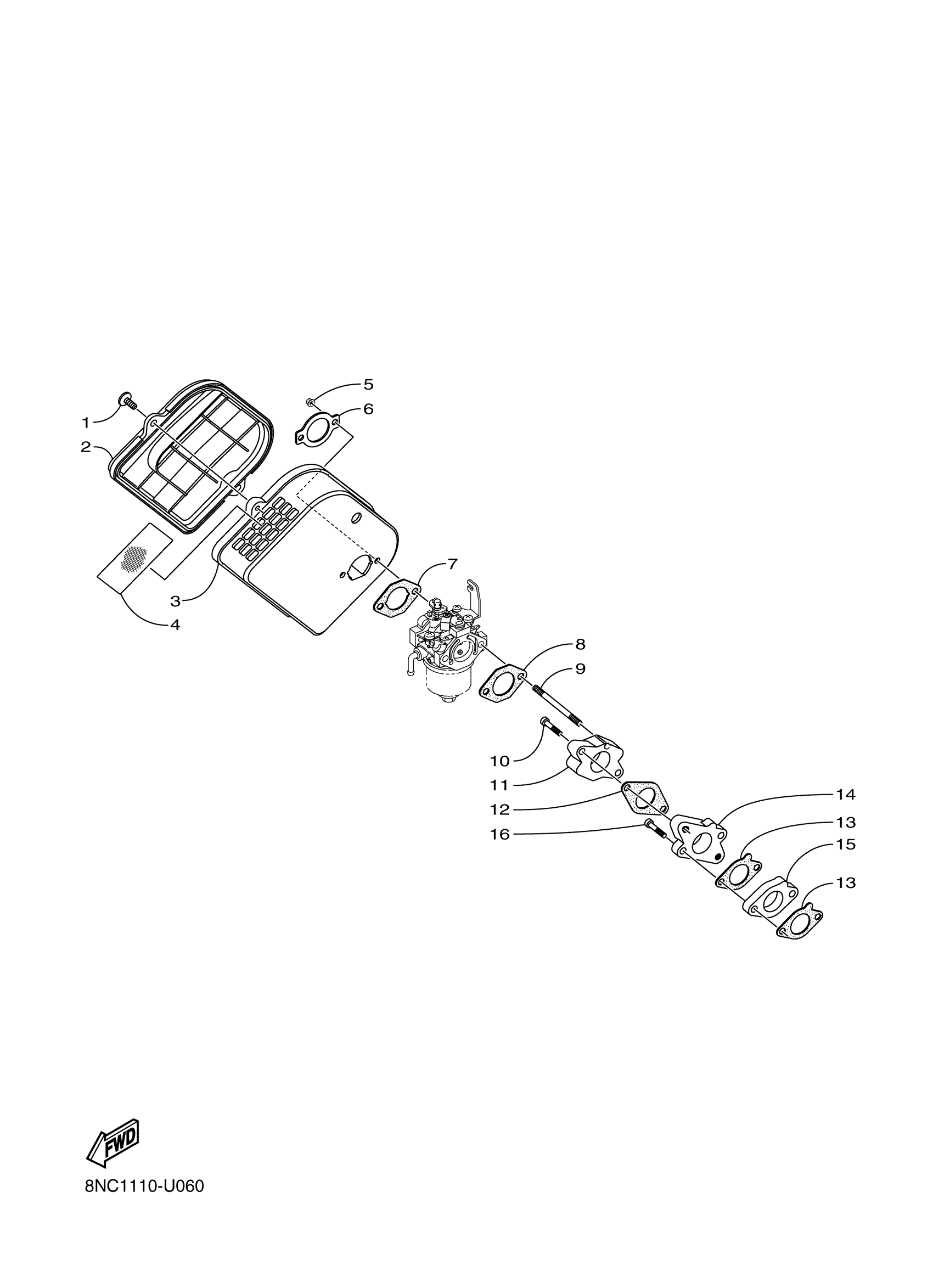

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 INTAKE Diagram

#

Description
Price

1

SCREW, BINDING (31K)

90154-06014-00

$7.16

2

CAP, CLEANER CASE 1

7DH-E4412-00-00

$14.51

3

CASE, AIR CLEANER 1

7DH-E4411-00-00

$21.87

4

PLATE, ELEMENT

8ML-E4472-00-00

$10.07

5

NUT, FLANGE

95702-06500-00

$1.78

6

PLATE

7VB-E4477-00-00

Unavailable

7

GASKET

7VB-E3567-00-00

$1.57

8

GASKET

7VB-E3557-00-00

$1.84

9

BOLT, STUD

90116-06033-00

$2.56

10

BOLT,SOCKET HEAD

91314-06020-00

$1.91

11

JOINT, CARBURETOR 1

7DH-E3586-10-00

Unavailable

12

GASKET

7DH-E3557-00-00

$3.43

13

GASKET

7CN-E3557-12-00

$2.57

14

JOINT, CARBURETOR 2

7DH-E3596-10-00

$18.12

15

JOINT, CARBURETOR2

7CN-E3596-10-00

$6.56

16

BOLT(J17)

91312-06035-00

Unavailable
