- SXR2NEKO (SNOSCOOT ES) 8NC10 2019
ENGINE ASSEMBLY

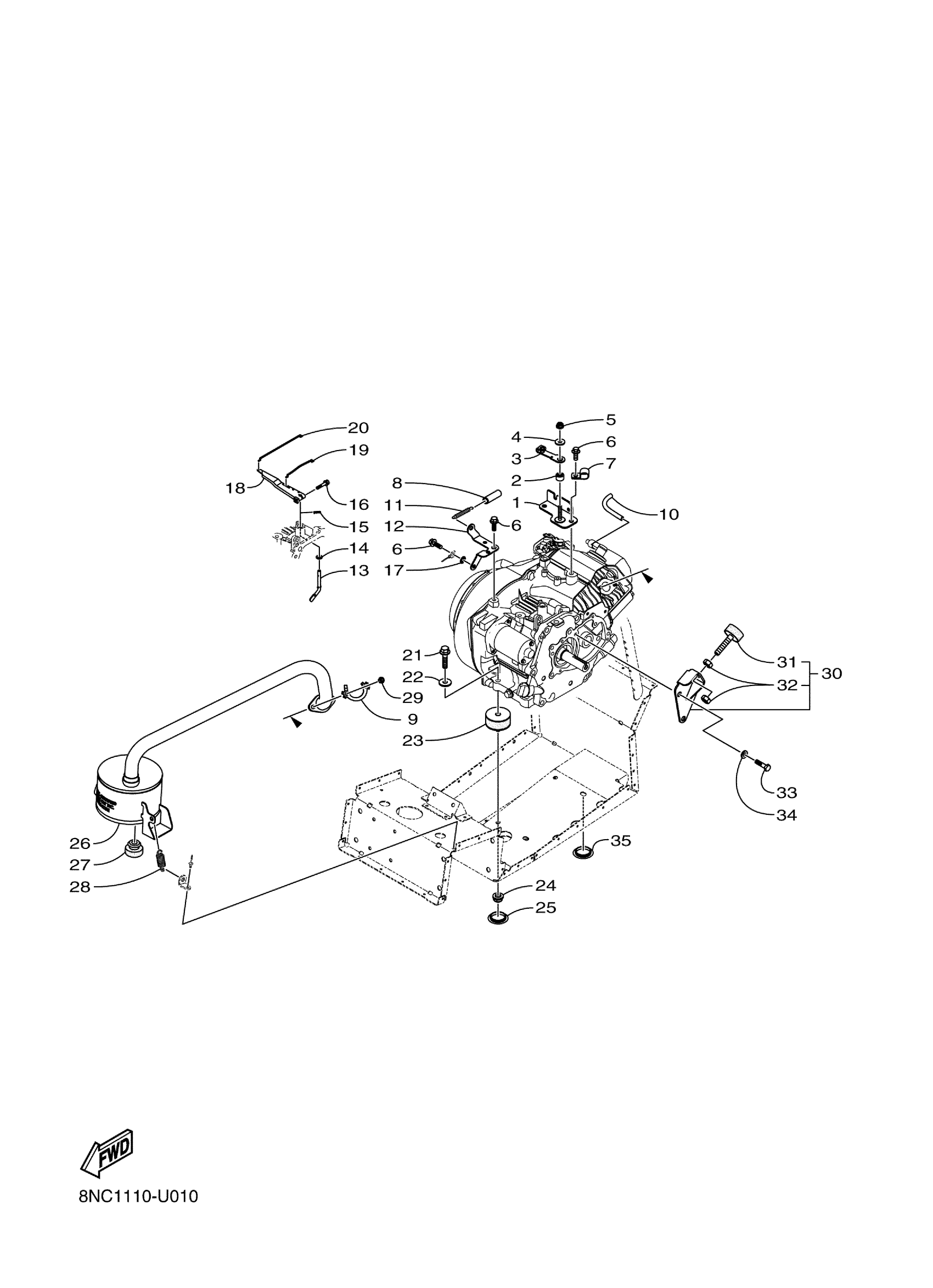

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 ENGINE ASSEMBLY Diagram
#
1
BRACKET, THROTTLE
8ML-E3733-00-00
$15.99
2
SPACER
8JM-E3576-00-00
Unavailable
3
LEVER, THROTTLE
8ML-E3726-00-00
$25.99
4
WASHER,FLAT-1/4 X .734 X .063
8JM-RA400-00-00
$0.85
5
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
6
BOLT, FLANGE M8-1.25X16
8JM-RA100-00-00
Unavailable
7
CLAMP, 3
8ML-RAB05-00-00
Unavailable
8
HOSE 1
8ML-E243A-00-00
Unavailable
9
WASHER
7DH-E4616-00-00
Unavailable
10
HOSE
90445-13809-00
Unavailable
11
SPRING, TENSION 2
8ML-RAD03-00-00
$22.99
12
BRACKET, ENGINE 1
8ML-E1011-00-00
$68.99
13
FORK, GOVERNOR
7CN-E1922-00-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
CLIP
90468-18008-00
Unavailable
16
BOLT, WITH WASHER
97522-06530-00
Unavailable
17
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
18
ARM, GOVERNOR
7CN-E1924-40-00
Unavailable
19
ROD, LINK
8ML-E1928-00-00
Unavailable
20
ROD, LINK
7CN-E1928-00-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
22
WASHER,FLAT-5/16X.688X.065 Z&Y
8JM-RA403-00-00
Unavailable
23
DAMPER, RUBBER 1
8ML-F1485-00-00
Unavailable
24
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
25
PLUG, 1-1/4"
8JM-RA602-00-00
Unavailable
26
SILENCER ASSY
8ML-E4750-00-00
Unavailable
27
GROMMET
8JP-E5357-00-00
Unavailable
28
SPRING, EXTENSION
8JM-RAD04-00-00
Unavailable
29
NUT, SELF-LOCKING
95617-06100-00
Unavailable
30
DAMPER 2
8ML-F1486-00-00
Unavailable
31
DAMPER SUB ASSY
8ML-F2201-00-00
Unavailable
32
NUT, HEX. M10X1.25
8JP-RA369-00-00
Unavailable
33
BOLT, HEXAGON 5/16
8ML-RA105-00-00
Unavailable
34
WASHER, PLAIN 5/16
8ML-RA403-00-00
Unavailable
35
PLUG
8ML-F2417-00-00
Unavailable
