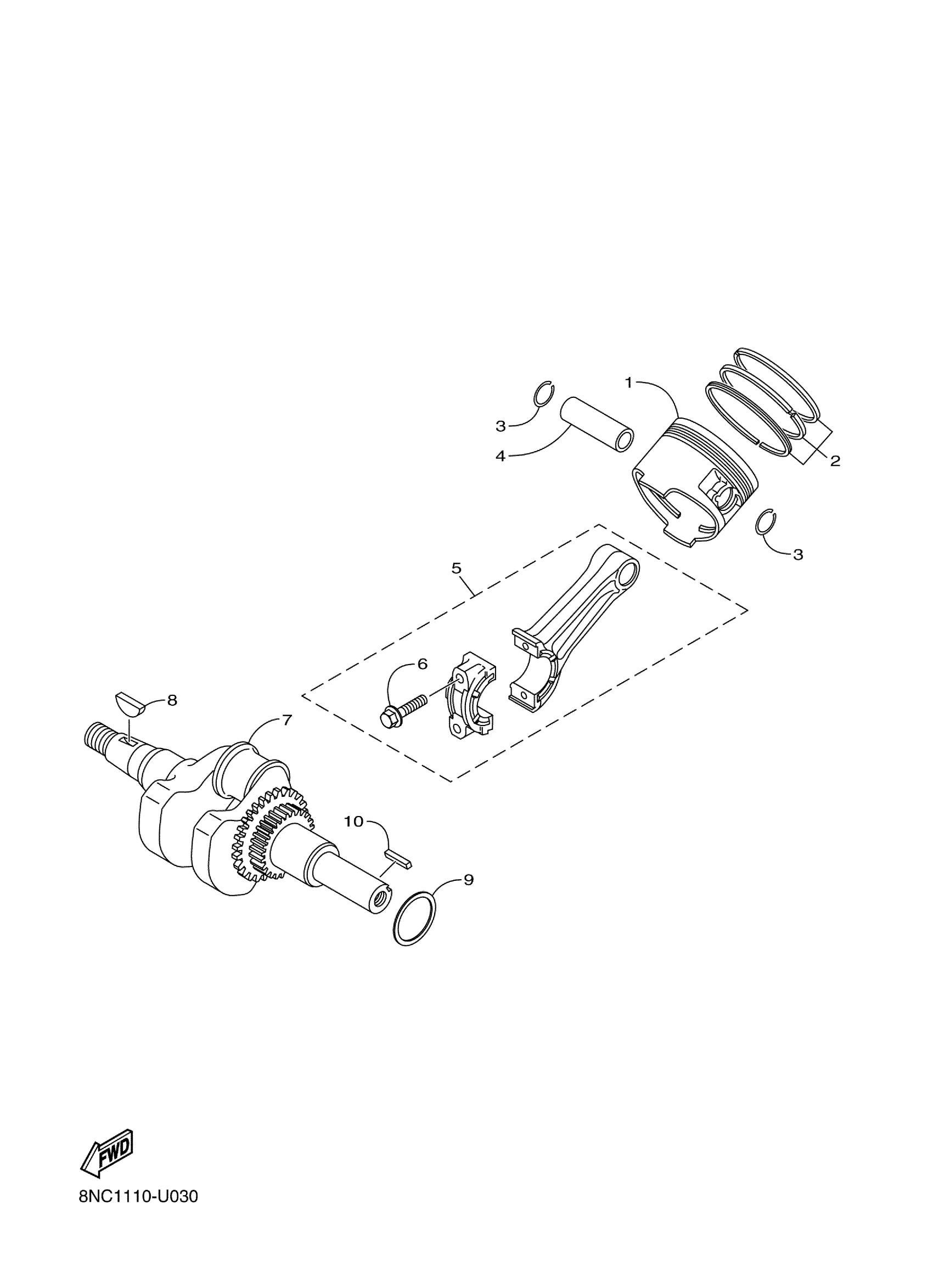

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 CRANKSHAFT PISTON Diagram

PISTON (STD)

7DH-E1631-10-A0

$60.99

PISTON (0.25MM O/S)

7DH-E1635-00-00

Unavailable

PISTON (0.50MM O/S)

7DH-E1636-00-00

$43.99

PISTON RING SET (STD)

7D9-E1610-00-00

Unavailable

PISTON RING SET (0.25MM O/S)

7D9-E1610-10-00

Unavailable

PISTON RING SET (0.50MM O/S)

7DH-E1610-20-00

Unavailable

CIRCLIP

93450-17828-00

$1.49

PIN, PISTON

7CN-E1633-00-00

$20.99

CONNECTING ROD ASSY

7CN-E1650-11-00

$64.99

BOLT, CONNECTING RO

7CN-E1654-00-00

$3.85

CRANKSHAFT ASSY

7DH-E1400-30-00

Unavailable

KEY,WOODRUFF

90280-04052-00

$7.49

SHIM, CRANK 1

7CN-E1561-00-00

$1.92

SHIM, CRANK 1

7CN-E1561-10-00

$1.87

SHIM, CRANK 1

7CN-E1561-20-00

$1.87

KEY, STRAIGHT (7H0)

90282-05035-00

Unavailable
