Description

Price

1

PRIMARY CLUTCH ASS

8NP-E760P-00-00

$246.99

2

SLIDER

8ML-E7653-00-00

Unavailable

3

SPRING, PRIMARY

8ML-E7643-00-00

$8.49

4

ROLLER, COMP

8ML-E7624-00-00

$9.49

4

ROLLER, COMP

8ML-E7624-A0-00

Unavailable

4

ROLLER, COMP

8ML-E7624-B0-00

$8.49

5

SPACER

8ML-E7649-00-00

$20.99

6

WSHR, .343X1 1/8X.120TH Z&Y

8JM-RA401-00-00

$2.22

7

BOLT, HEXAGON 5/16

8ML-RA103-00-00

$1.86

8

SECONDARY SHEAVE A

8ML-E7602-00-00

$287.99

9

ROLLER, SHIFT LEVE

8ML-E8178-00-00

$11.49

10

SCREW, 1/4-20X1.12

8ML-RA206-00-00

$9.49

11

SPRING, SECONDARY

8ML-E7683-00-00

Unavailable

12

SEAT,SPRING

8ML-E7644-00-00

$49.99

13

KEY

8ML-E5796-00-00

$2.82

14

CIRCLIP, CLUTCH

8ML-E6819-00-00

Unavailable

15

WASHER, 2

8JP-RA433-00-00

Unavailable

15

WASHER, 25X36X1

8JP-RA446-00-00

Unavailable

16

SPACER 1

8ML-E7654-00-00

Unavailable

17

WASHER, 10.5X33X4

8JP-RA442-00-00

Unavailable

18

BOLT, FLG. M10X1.2

8ML-RA1A6-00-00

Unavailable

19

V-BELT

8ML-E7641-00-00

Unavailable

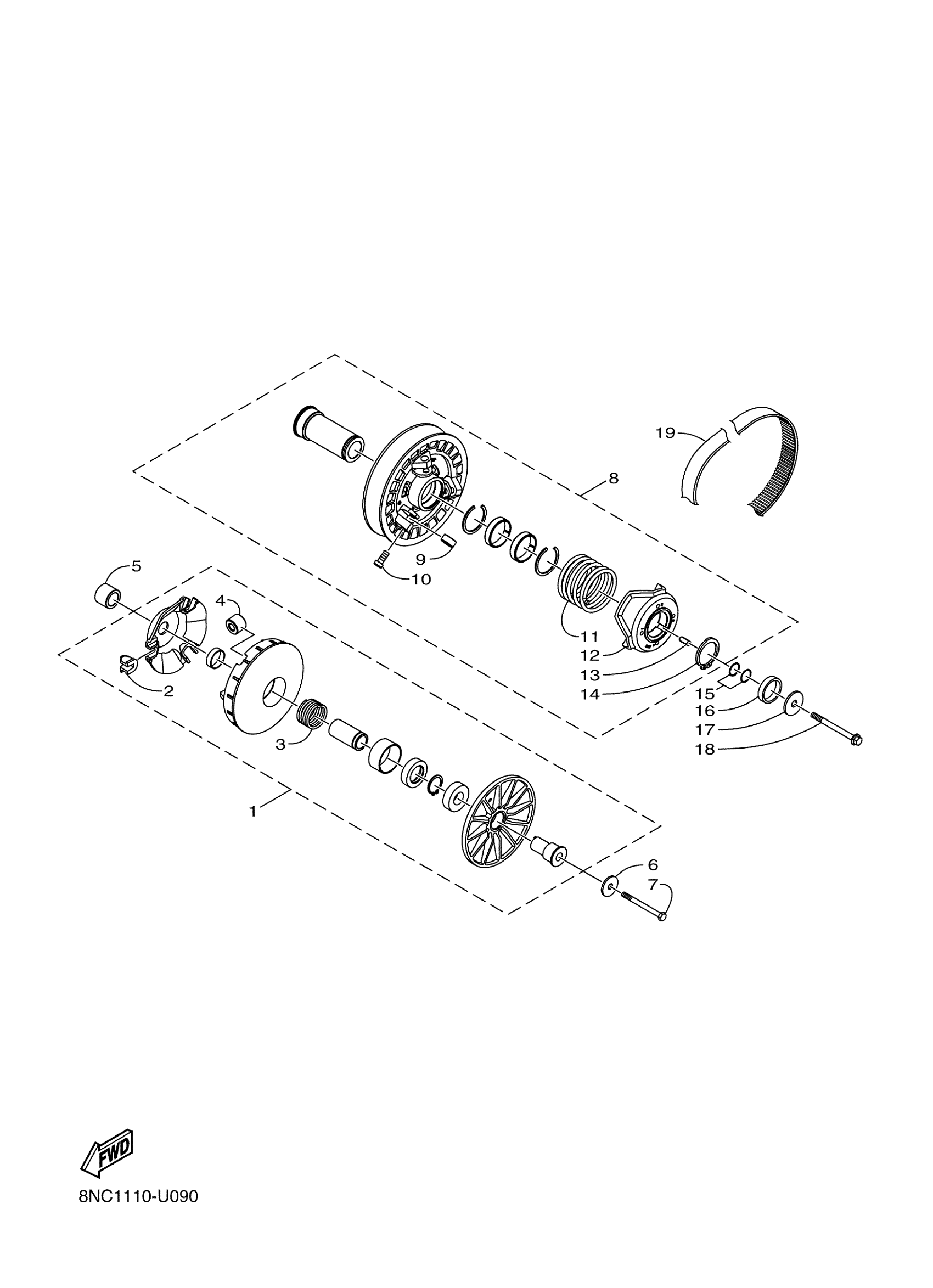

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 CLUTCH Diagram

PRIMARY CLUTCH ASS

SLIDER

SPRING, PRIMARY

ROLLER, COMP

ROLLER, COMP

ROLLER, COMP

SPACER

WSHR, .343X1 1/8X.120TH Z&Y

BOLT, HEXAGON 5/16

SECONDARY SHEAVE A

ROLLER, SHIFT LEVE

SCREW, 1/4-20X1.12

SPRING, SECONDARY

SEAT,SPRING

KEY

CIRCLIP, CLUTCH

WASHER, 2

WASHER, 25X36X1

SPACER 1

WASHER, 10.5X33X4

BOLT, FLG. M10X1.2

V-BELT
