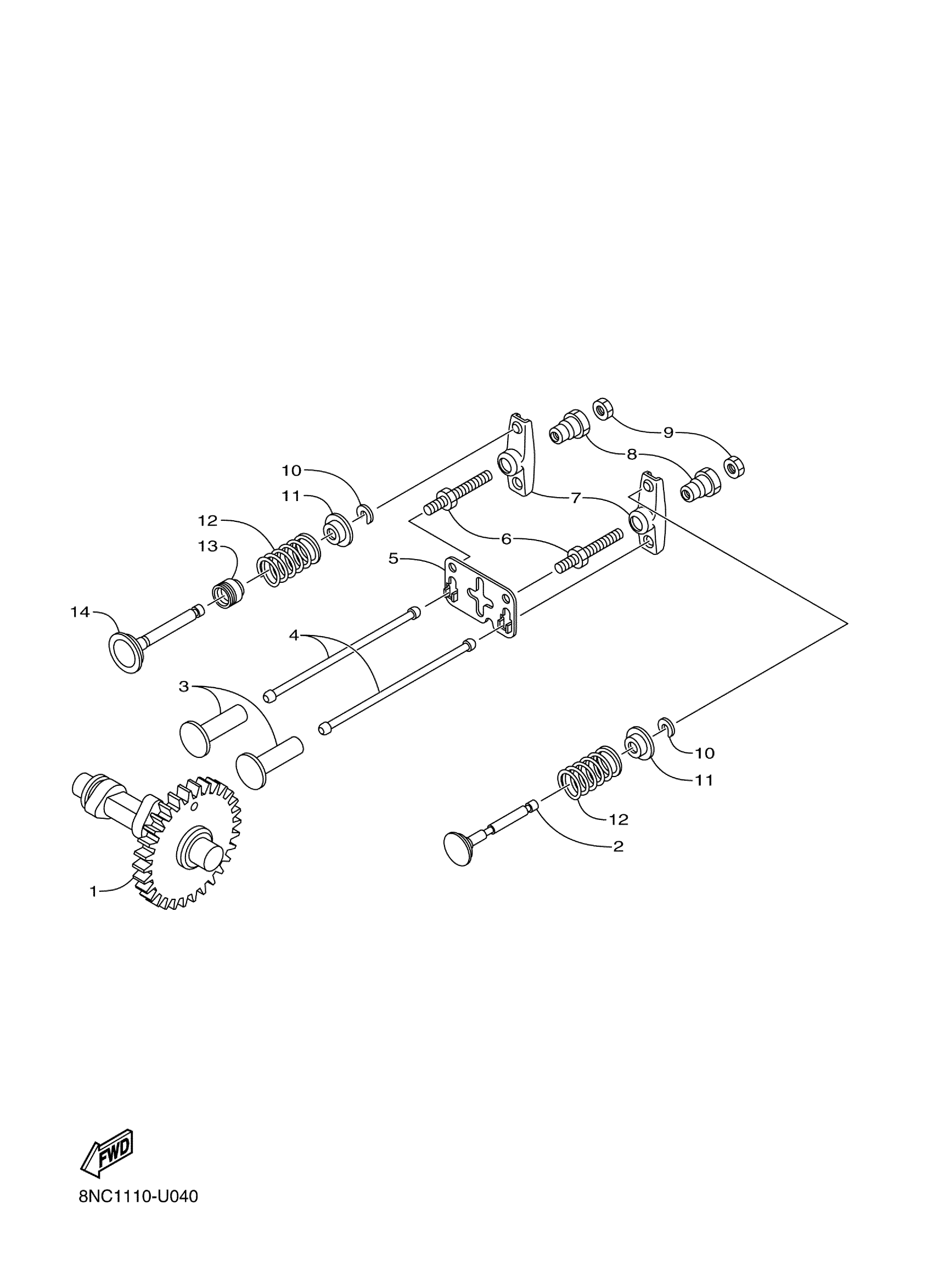

Yamaha SXR2NEKO (SNOSCOOT ES) 8NC10 2019 CAMSHAFT VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY 2

7DH-E2180-00-00

Unavailable

2

VALVE, EXHAUST

7NJ-12121-10-00

$32.99

3

LIFTER, VALVE

7CN-E2153-00-00

$17.49

4

ROD, VALVE PUSH

7CN-E2154-00-00

$7.99

5

GUIDE, PUSH ROD

7CN-E2155-01-00

$3.22

6

BOLT

7CN-E2157-01-00

$2.91

7

ARM, VALVE ROCKER

JA9-12151-00-00

$13.49

8

PIVOT, ROCKER ARM

7CN-E2165-00-00

$10.99

9

NUT, LOCK

7CN-E2158-01-00

Unavailable

10

COTTER, VALVE

7CN-E2118-00-00

$1.46

11

RETAINER, VALVE SPR

7CN-E2117-00-00

$4.21

12

SPRING, COMPRESSION

90501-22801-00

Unavailable

13

SEAL, VALVESTEMOIL

7DH-E2119-01-00

$10.99

14

VALVE, INTAKE

7DH-E2111-10-00

$20.99
