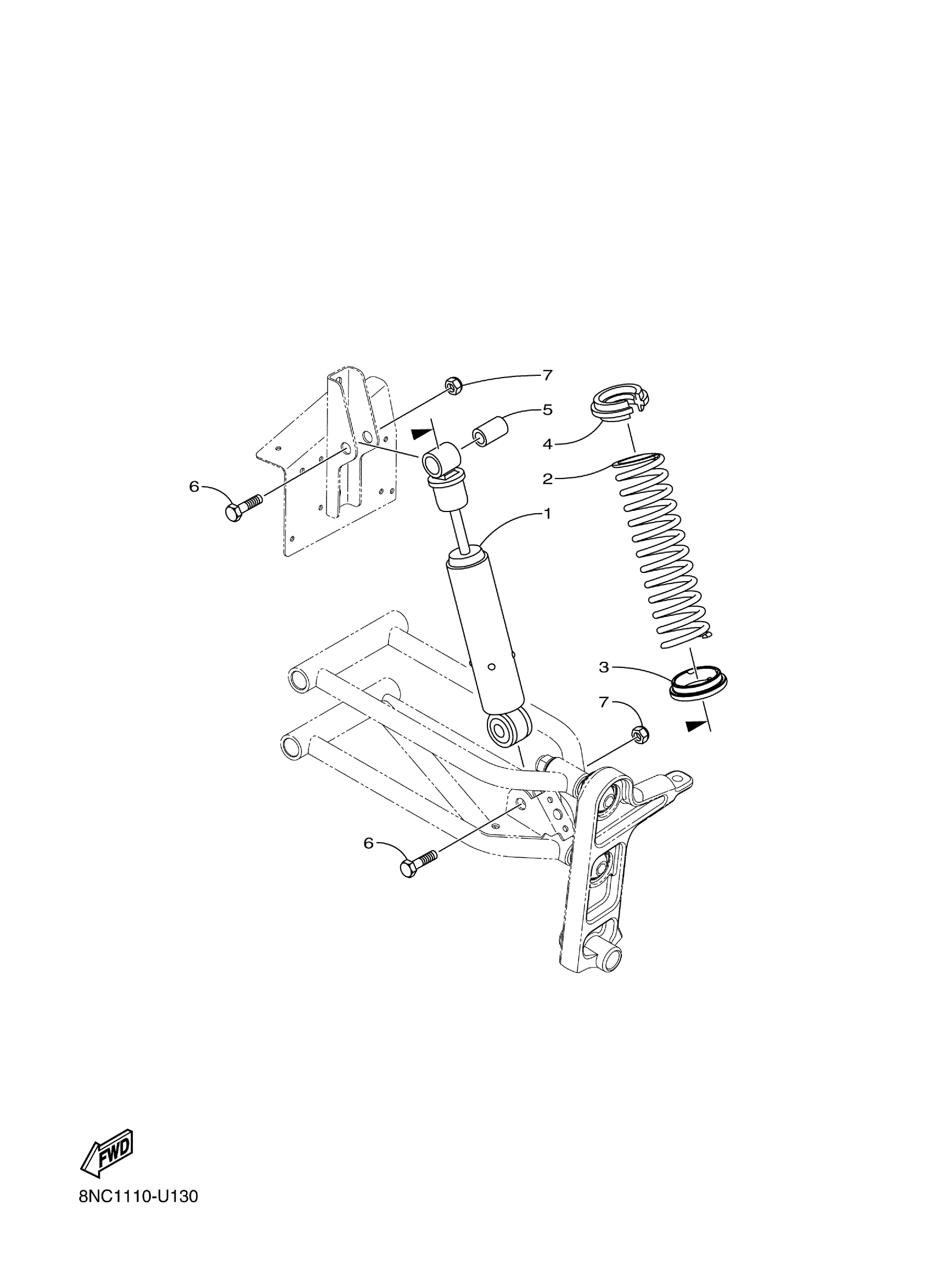

Yamaha SXR2NEKL (SNOSCOOT ES) 8NC1 2019 FRONT SUSPENSION 2 Diagram

#

Description

Price

1

SHOCK ABSORBER - SKI - F 120

8JM-F376A-00-00

$148.55

2

SPRING, COMPRESSION-PTD WHITE

8JM-F3760-00-00

$45.85

3

RETAINER, SPRING-LWR

8JM-F3777-00-00

$7.02

4

RETAINER - UPPER SPRING

8JM-F3768-00-00

$2.98

5

COLLAR,9

8JM-RA704-00-00

$5.03

6

SCREW,CAP-HH3/8-16X1.50 G5 Z&Y

8JM-RA109-00-00

$1.30

7

NUT,HEX THIN LOCK-NYL 3/8-16

8JM-RA305-00-00

$0.56
