Description

Price

1

CRANKCASE 2

7DH-E5121-41-00

Unavailable

2

OIL SEAL

93104-06800-00

$2.87

3

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

4

BEARING

93306-206Y4-00

Unavailable

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

GASKET

90430-10801-00

$1.96

7

BOLT, FLANGE

95022-10016-00

$8.49

8

CRANKCASE COVER ASSY 1

7DH-E5410-00-00

Unavailable

9

BEARING

93306-205XV-00

$65.99

10

OIL SEAL

93102-25805-00

$10.49

11

PLUG

90338-06800-00

Unavailable

12

GASKET, CRANKCASE COVER 1

7CN-E5451-10-00

$16.49

13

BOLT, FLANGE

95822-08035-00

$4.14

14

OIL SEAL

8NC-E511A-10-00

$2.44

15

NUT

90170-20803-00

Unavailable

16

. PIPE, OIL

7DH-E5112-00-00

Unavailable

17

GAUGE, LEVEL

7DH-E5361-00-00

Unavailable

18

PLUG, OIL LEVEL

7CN-E5362-00-00

Unavailable

19

O-RING

93210-13801-00

Unavailable

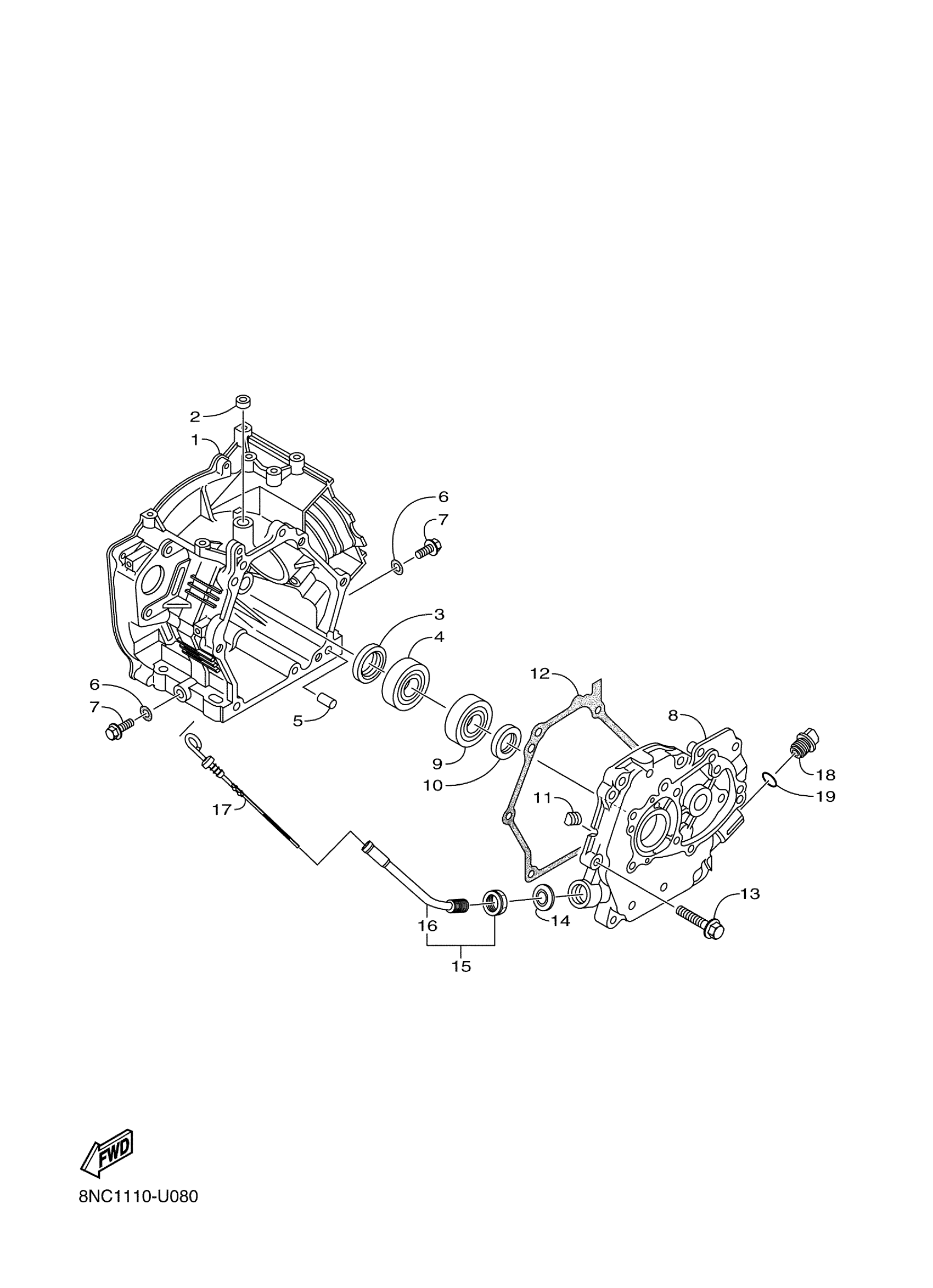

Yamaha SXR2NEKL (SNOSCOOT ES) 8NC1 2019 CRANKCASE Diagram

CRANKCASE 2

OIL SEAL

OIL SEAL (25X40X5-256)

BEARING

PIN, DOWEL(3XW)

GASKET

BOLT, FLANGE

CRANKCASE COVER ASSY 1

BEARING

OIL SEAL

PLUG

GASKET, CRANKCASE COVER 1

BOLT, FLANGE

OIL SEAL

NUT

. PIPE, OIL

GAUGE, LEVEL

PLUG, OIL LEVEL

O-RING
