Description

Price

551

PIN-DOWEL

551R0812

$7.91

11060

GASKET,EXHAUST

11060-3712

$33.70

11060A

GASKET,MUFFLER,FR

11060-3713

$31.98

11060B

GASKET,MUFFLER CHAMBER

11060-3714

$31.98

11060C

GASKET,EXHAUST MANIFOLD

11060-3759

$16.53

18087

MUFFLER,FR

18087-3701

$249.44

18087A

MUFFLER,RR

18087-3702

Unavailable

18088

PIPE-EXHAUST

18088-3705

$224.98

49069A

MUFFLER-ASSY,WATER

49069-3706

$357.59

59081A

MANIFOLD-EXHAUST

59081-3734

Unavailable

92005

FITTING,HOSE

92005-3712

$10.88

92015

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92022A

WASHER,8.2X18X1.5

92022-3743

$4.22

92037

CLAMP

92037-3009

$3.70

92062

NOZZLE

92062-3705

$8.44

92150

BOLT,8X35

92150-3833

$9.45

92150A

BOLT,8X16

92150-3846

$6.22

92160

DAMPER

92160-3793

$7.24

92170

CLAMP

92170-3718

$13.67

92190

TUBE,HEAD-EXHAUST PIPE

92190-3829

$18.58

92190A

TUBE,CHAMBER-WATER MUFFLER

92190-3919

$20.90

92191

TUBE,WATER MUFFLER-BULKHEAD

92191-3721

$49.60

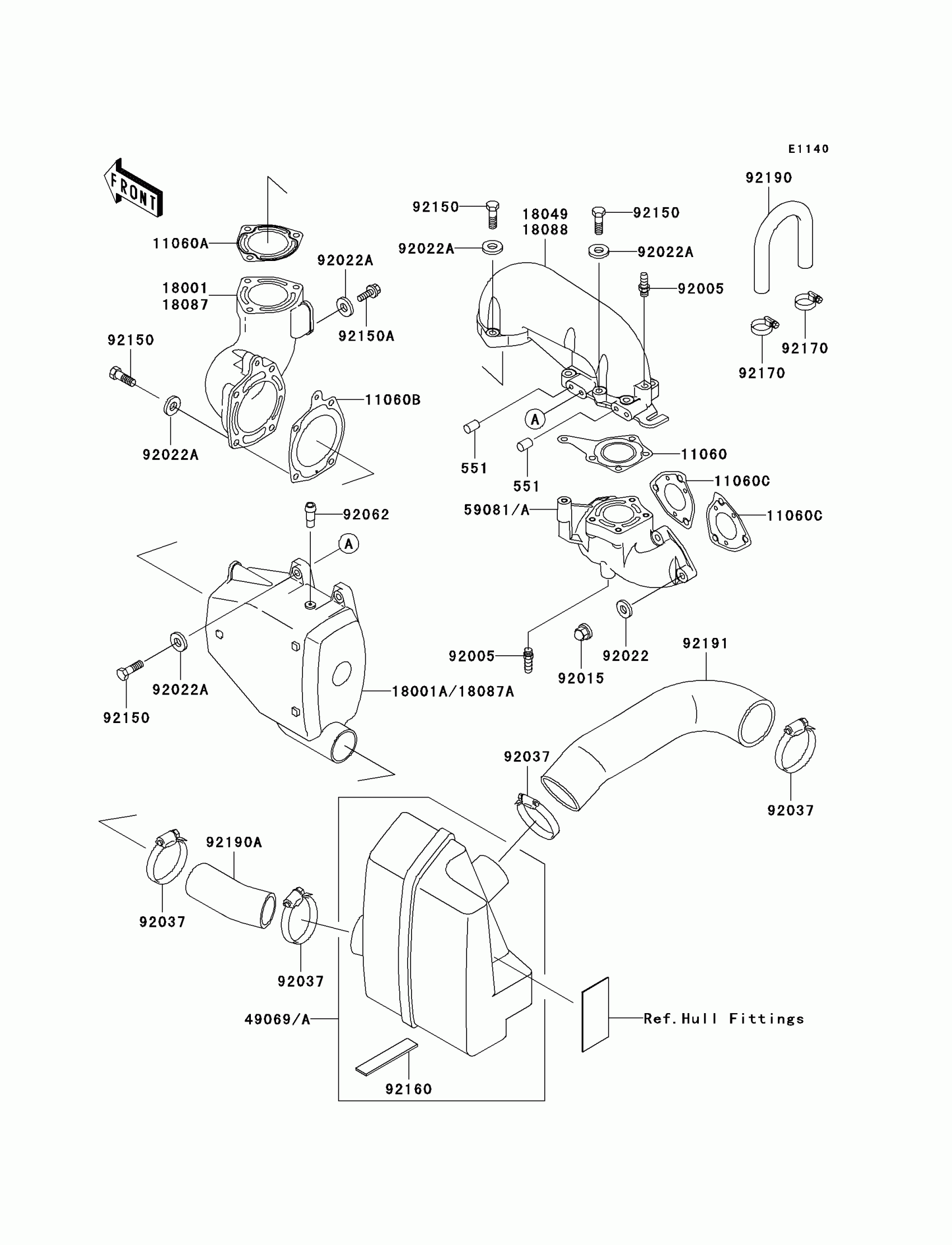

Kawasaki SXI PRO Muffler(s) Diagram

PIN-DOWEL

GASKET,EXHAUST

GASKET,MUFFLER,FR

GASKET,MUFFLER CHAMBER

GASKET,EXHAUST MANIFOLD

MUFFLER,FR

MUFFLER,RR

PIPE-EXHAUST

MUFFLER-ASSY,WATER

MANIFOLD-EXHAUST

FITTING,HOSE

NUT,CAP,8MM

WASHER,8.2X18X1.5

WASHER,8.2X18X1.5

CLAMP

NOZZLE

BOLT,8X35

BOLT,8X16

DAMPER

CLAMP

TUBE,HEAD-EXHAUST PIPE

TUBE,CHAMBER-WATER MUFFLER

TUBE,WATER MUFFLER-BULKHEAD
