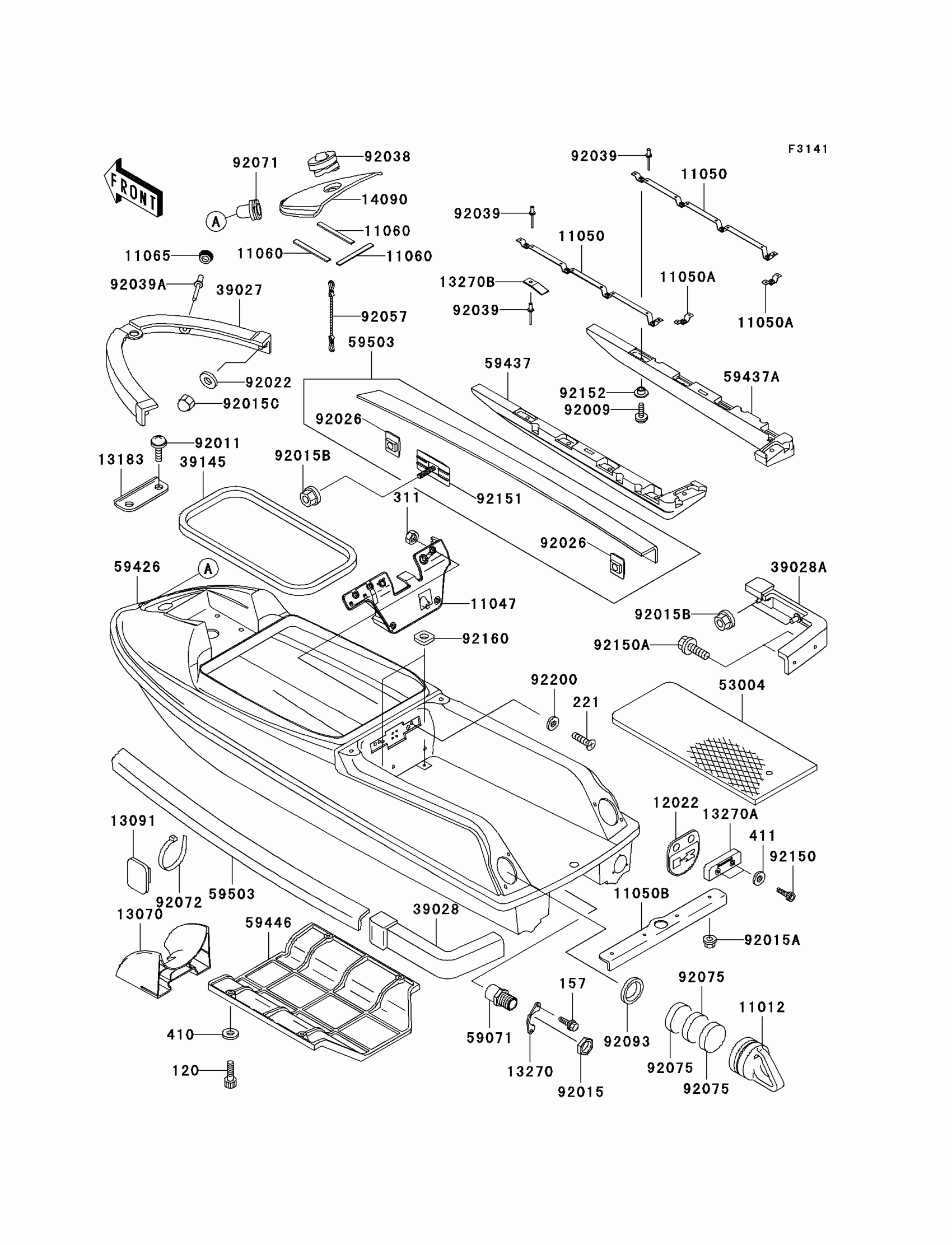

Kawasaki SXI PRO Hull(JS750-C1) Diagram
#
11012
CAP,VIOLET
11012-3752-RE
Unavailable
11047
BRACKET,CONTROL KNOB
11047-3745
$275.98
11050
BRACKET,STABILIZER
11050-3730
$74.24
11050A
BRACKET,STABILIZER
11050-3731
$15.60
11050B
BRACKET
11050-3752
Unavailable
11060
GASKET
11060-3722
$4.55
11065
CAP,J.S.VIOLET
11065-3707-RE
$5.16
12022
VALVE-REED
12022-3706
$31.76
13070
GUIDE,INTAKE
13070-3708
$72.57
13091
HOLDER,BAND
13091-3764
$5.17
13183
PLATE
13183-3787
$9.43
13270
PLATE
13270-3782
Unavailable
13270A
PLATE
13270-3785
$8.16
13270B
PLATE
13270-3906
$3.04
14090
COVER,TANK CAP,BLACK MICA
14090-3707-5M
$18.72
39027
BUMPER-FRONT,J.S.VIOLET
39027-3737-RE
$180.46
39028
BUMPER-REAR,LH,J.S.VIOLET
39028-3744-RE
$36.27
39028A
BUMPER-REAR,RH,J.S.VIOLET
39028-3745-RE
$36.27
39145
TRIM-SEAL
39145-3731
$117.79
53004
MAT
53004-3740
Unavailable
59071
JOINT
59071-3763
$26.09
59437
STABILIZER,LH,J.WHITE
59437-3715-8U
Unavailable
59437A
STABILIZER,RH,J.WHITE
59437-3716-8U
Unavailable
59446
COVER-JET PUMP
59446-3738
$182.79
59503
FENDER-BOAT,J.S.VIOLET
59503-3705-RE
Unavailable
92009
SCREW,6X15
92009-3830
$3.32
92011
SCREW,TAPPING
92011-561
Unavailable
92015
NUT,20MM
92015-3738
$7.31
92015A
NUT,6MM
92015-3767
$4.69
92015B
NUT,FLANGED,5MM
92015-3768
$4.71
92015C
NUT,CAP,5MM
92015-3802
$4.99
92022
WASHER
92022-567
$2.67
92026
SPACER
92026-3740
$5.96
92038
KEY,TANK CAP
92038-3707
$115.79
92039
RIVET,4.8MM
92039-3719
$6.22
92039A
RIVET
92039-3747
$1.70
92057
CHAIN,COVER,L=100
92057-3704
$19.34
92071
GROMMET
92071-3780
$4.28
92072
BAND,L=148
92072-3768
$3.92
120
BOLT-SOCKET,6X20
120R0620
$3.92
157
BOLT-WSP,5X18
157R0518
$4.45
221
SCREW-CSK-CROS,6X20
221R0620
$3.34
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
411
WASHER-PLAIN,6MM
411S0600
$2.06
92075
DAMPER
92075-3719
$9.40
92093
SEAL,OSR70X82X7.5
92093-3704
$15.74
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,5X16
92150-3778
$4.65
92151
BOLT
92151-3778
$11.30
92152
COLLAR
92152-3704
$7.71
92160
DAMPER
92160-3797
$6.05
92200
WASHER
92200-3720
$2.46
59426
HULL-COMP,J.WHITE
59426-3878-8C
$1,569.72
