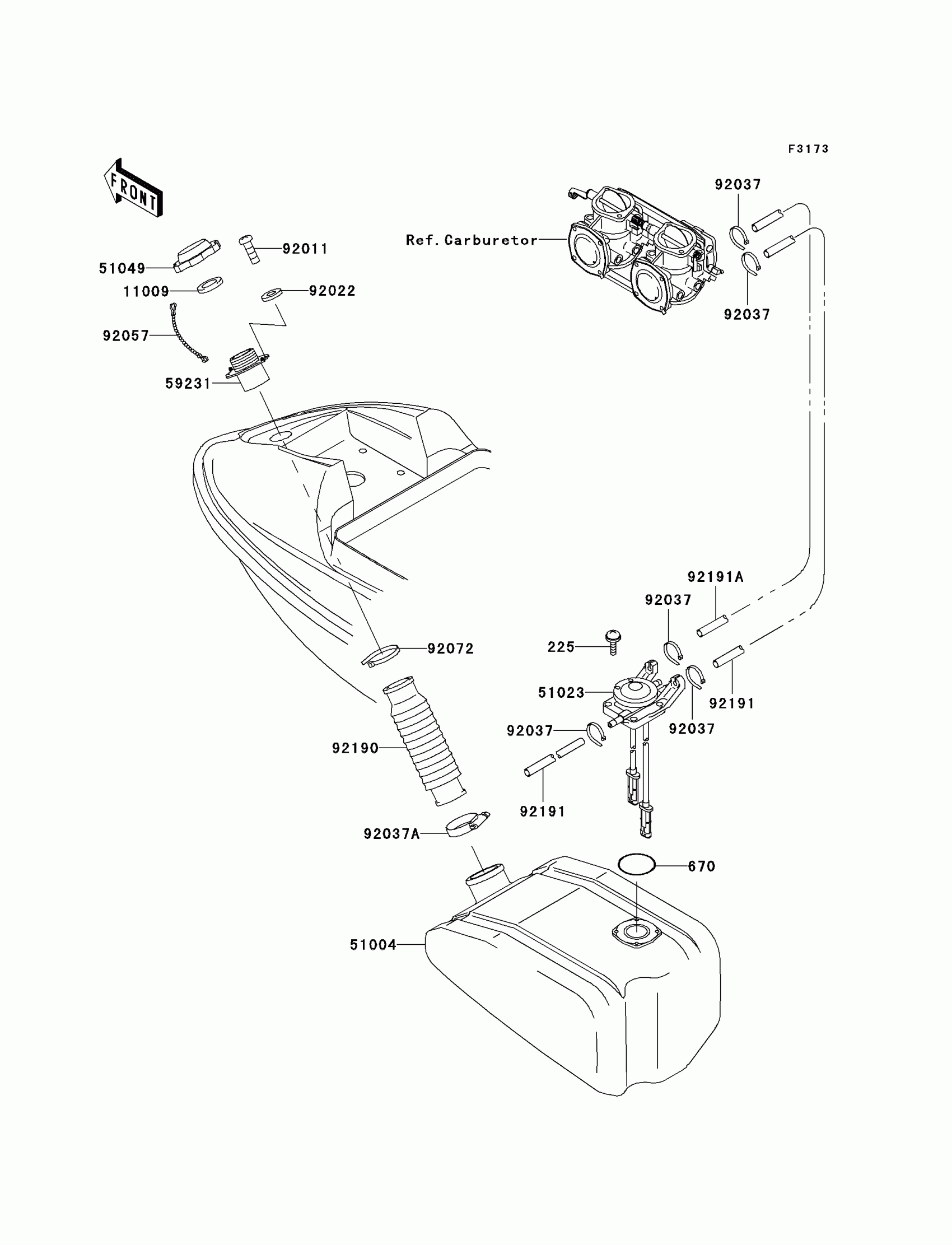

Kawasaki SXI PRO Fuel Tank Diagram

Description

Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.45

670

"0" RING,36MM

670B3036

$1.03

11009

GASKET,TANK CAP

11009-3020

$13.51

51004

TANK-FUEL

51004-3727

Unavailable

51023

TAP-ASSY,FUEL

51023-3735

Unavailable

51049

CAP-TANK,FUEL

51049-3719

$28.71

59231

FILLER,FUEL TANK

59231-3702

$19.45

92011

SCREW

92011-562

$1.65

92022

WASHER

92022-563

$1.13

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP

92037-3009

$3.70

92057

CHAIN,COVER,L=100

92057-3704

$19.34

92072

BAND,L=292.1

92072-3509

Unavailable

92190

TUBE,FILLER-FUEL TANK

92190-3881

Unavailable

92191

TUBE,5.8X10.8X800,WHITE

92191-3720

$22.46

92191A

TUBE,"RETURN",7X12X490

92191-3768

$10.89
