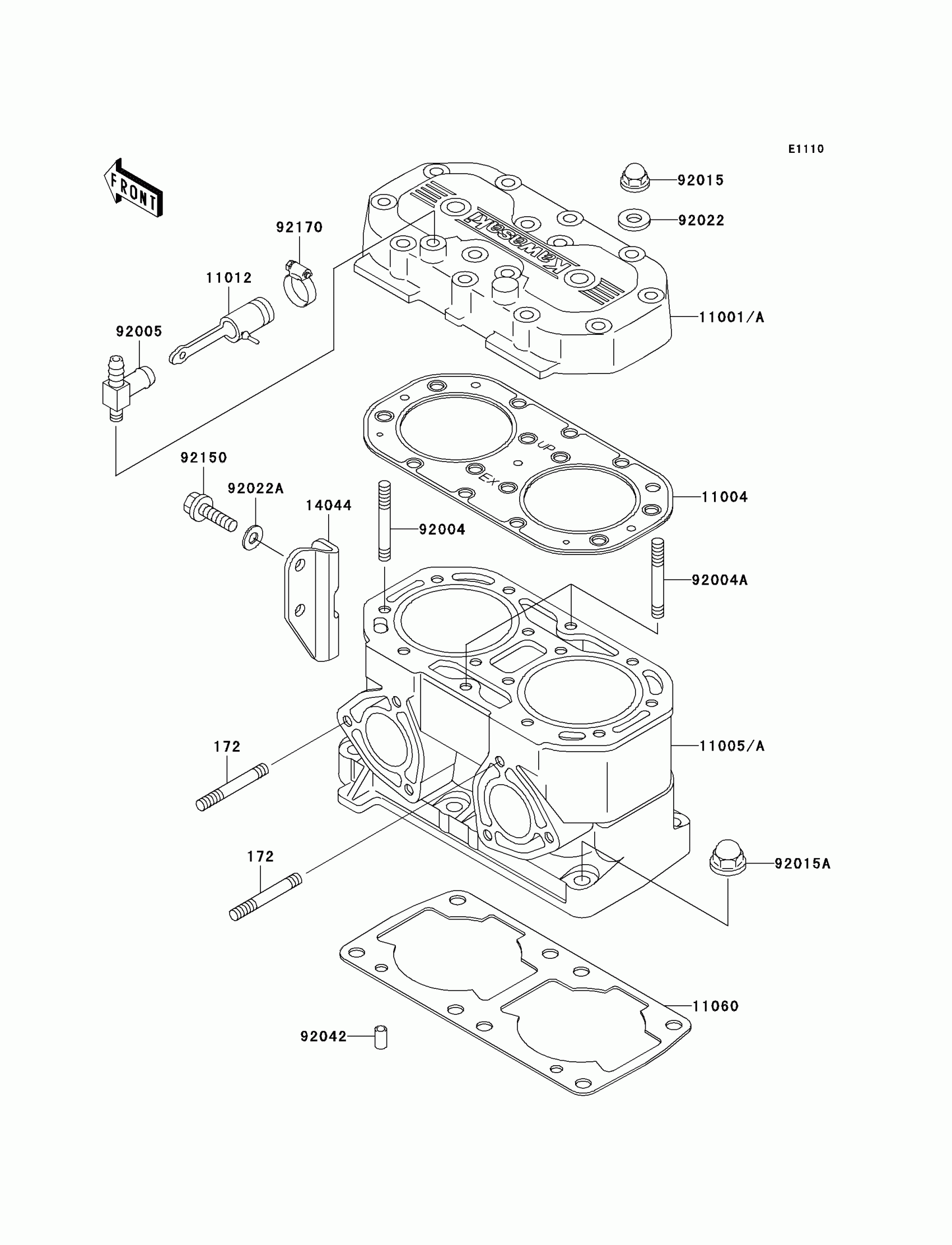

Kawasaki SXI PRO Cylinder Head/Cylinder Diagram

Description

Price

172

BOLT-STUD,8X30

172R0830

$6.73

11001A

HEAD-CYLINDER

11001-3736

Unavailable

11004

GASKET-HEAD

11004-3714

$71.77

11005A

CYLINDER-ENGINE

11005-3749

Unavailable

11012

CAP

11012-3757

Unavailable

11060

GASKET,CYLINDER BASE

11060-3711

$14.64

14044

HOLDER-CABLE

14044-3728

$21.76

92004

STUD,8X43

92004-3715

$8.31

92004A

STUD,8X43

92004-3719

$9.83

92005

FITTING

92005-3711

$57.29

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,10MM

92015-1649

$3.79

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,8.2X18X1.5

92022-3743

$3.22

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92150

BOLT,8X16

92150-3846

$5.42

92170

CLAMP

92170-3729

Unavailable
