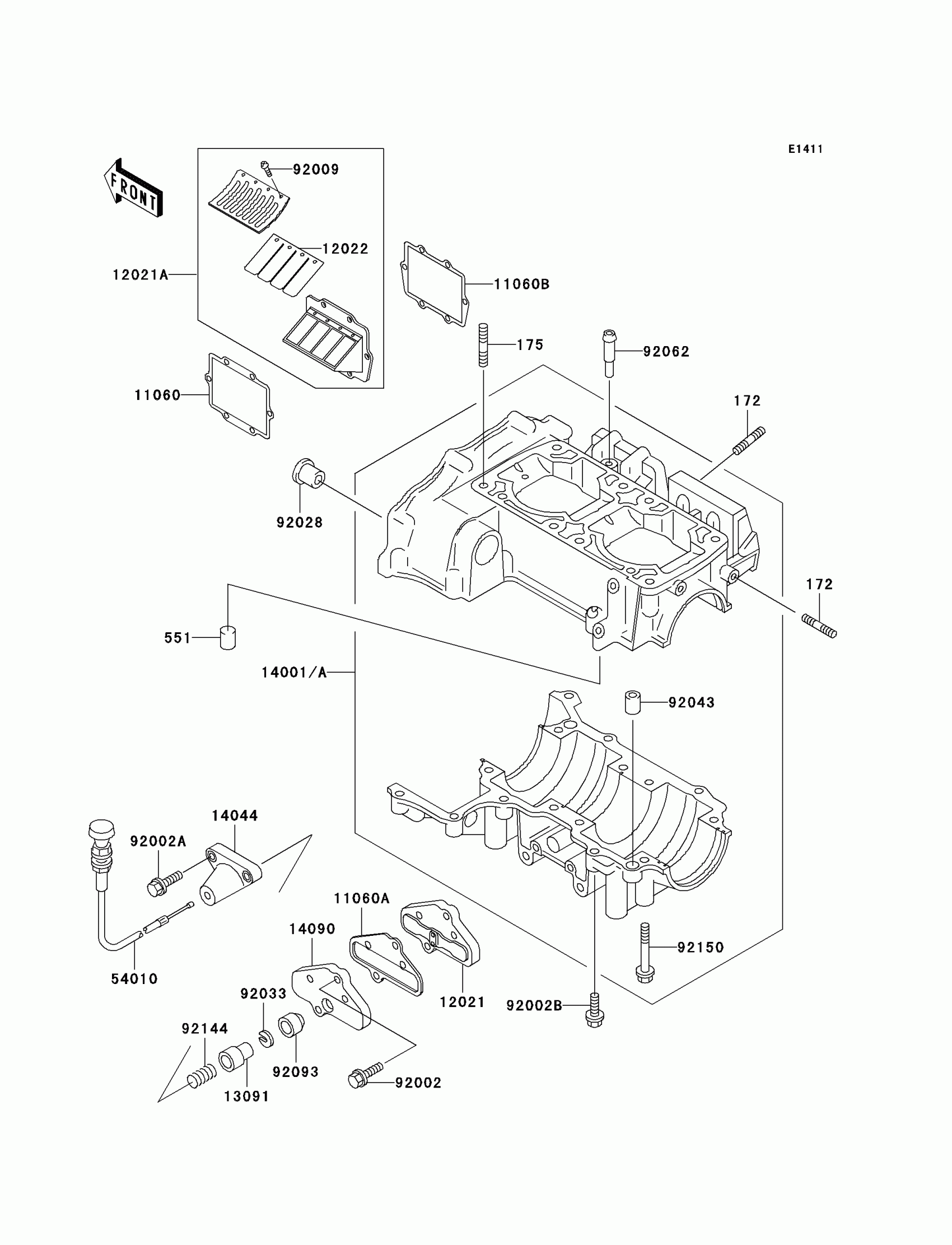

Kawasaki SXI PRO Crankcase Diagram

#

Description
Price

172

BOLT-STUD,6X20

172R0620

$6.25

175

BOLT-STUD-FINE,10X35

175R1035

$8.41

551

PIN-DOWEL

551R0612

$3.57

11060

GASKET,REED VALVE

11060-3717

$14.40

11060A

GASKET,CONTROL VALVE

11060-3723

$13.03

11060B

GASKET,REED VALVE

11060-3757

$14.40

12021

VALVE-ASSY-REED,CONTROL

12021-3707

$161.83

12021A

VALVE-ASSY-REED

12021-3708

$160.59

12022

VALVE-REED

12022-3703

$20.43

13091

HOLDER

13091-3707

$4.27

14001A

SET-CRANKCASE

14001-5375

$800.65

14044

HOLDER-CABLE

14044-3702

$21.19

14090

COVER,CONTROL VALVE

14090-3734

Unavailable

54010

CABLE,CONTROL VALVE

54010-3707

Unavailable

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X45

92002-3717

$5.51

92002B

BOLT,6X30

92002-3726

$3.57

92009

SCREW,3X6

92009-1371

$3.34

92028

BUSHING

92028-3718

$7.18

92033

RING-SNAP

92033-3708

$2.59

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92062

NOZZLE

92062-3705

$6.73

92093

SEAL

92093-3703

Unavailable

92144

SPRING

92144-3701

Unavailable

92150

BOLT,8X65

92150-3708

$12.14
