2000 Yamaha SX700SD 8CH40 SKI Diagram

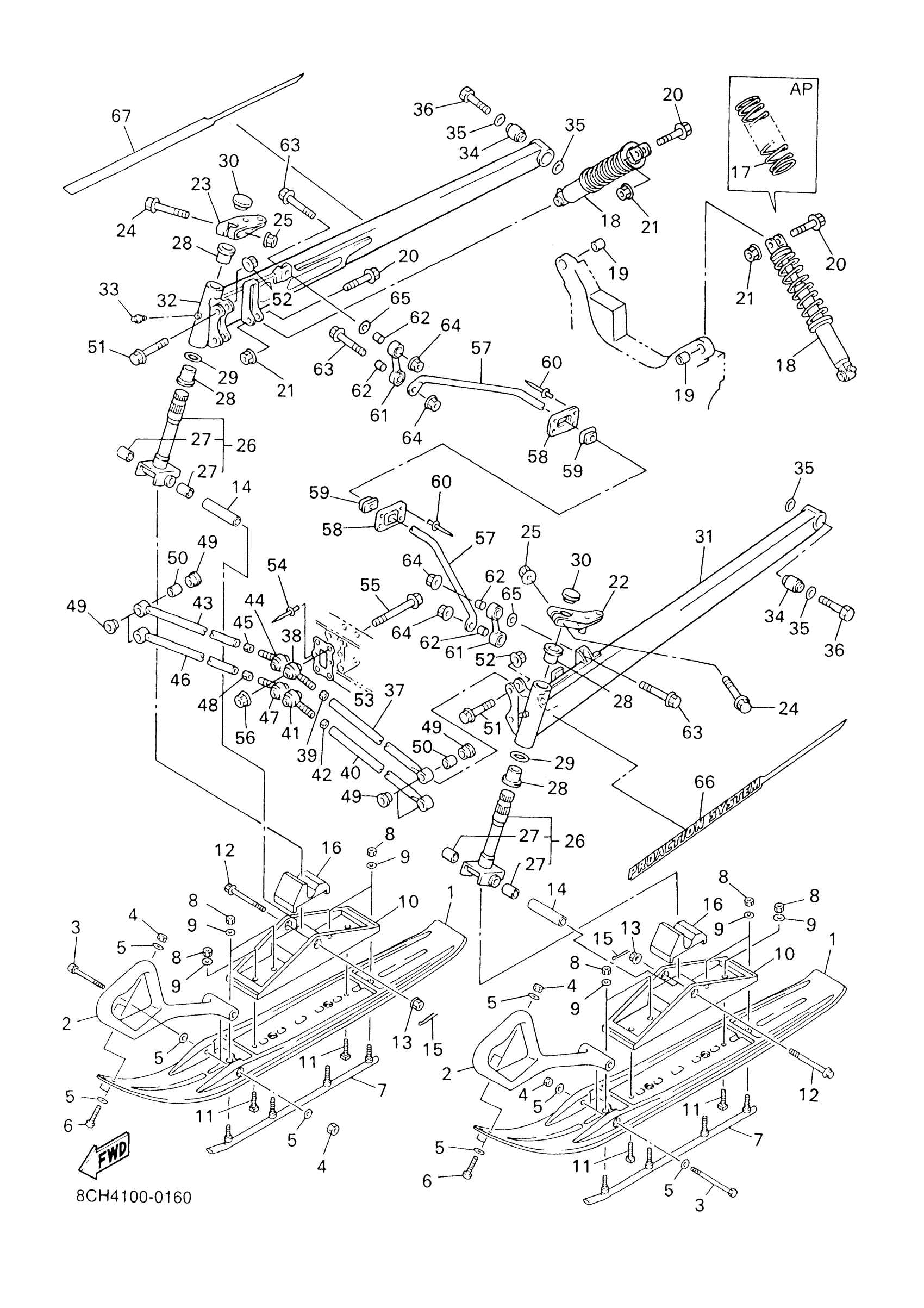

Find the part on the SKI diagram for your 2000 Yamaha SX700SD 8CH40, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI 1
8DF-23711-19-00
2
GYT/8DF SKI HANDLE BLUE
GYT-8DN91-35-BL
3
BOLT, REINF. HEAD 1
8DF-23755-00-00
5
WASHER(6TC)
92907-08200-00
6
BOLT, BUTTON HEAD
92017-08040-00
7
RUNNER 1
8DF-23731-20-00
10
SADDLE 1
8EA-23766-00-00
12
BOLT, WASHER BASED(8AB)
90105-10712-00
16
STOPPER 1
8CS-23743-00-00
17
SPRING ASSY 1
8CX-23760-00-00
17
SPRING ASSY 1 (K=23N/MM)
8CX-23760-10-00
18
ABSORBER ASSY 1
8CH-2376A-40-00
19
BUSH
8CR-2376B-00-00
23
ARM, OUTSIDE 2
8CR-23852-00-00
31
ARM, FRONT 1
8CR-2382E-10-00
32
ARM, FRONT 2
8CR-2382F-10-00
37
ARM, CONTROL 1
8CR-2384E-10-00
39
NUT, HEXAGON
95337-12600-00
40
ARM, CONTROL 2
8CR-2384F-10-00
41
JOINT 3
8DN-23832-00-00
42
NUT
95314-14600-00
43
ARM, CONTROL 1
8CR-2384E-10-00
45
NUT, HEXAGON
95337-12600-00
46
ARM, CONTROL 2
8CR-2384F-10-00
47
JOINT 3
8DN-23832-00-00
48
NUT
95314-14600-00
54
RIVET, BLIND (8J5)
90267-48057-00
55
BOLT, FLANGE
90105-124A2-00
58
COVER, STABILIZER FRONT
8CR-2386H-00-00
59
BUSH, STABILIZER FRONT
8CR-2386G-00-00
61
JOINT, STABILIZER 1 (STRONG BLUE)
8DF-2385L-00-00
66
EMBLEM 15
8EA-77371-10-00
67
EMBLEM 16
8EA-77372-10-00
