2000 Yamaha SX700SD 8CH40 Secondary Sheave Diagram

← All diagrams

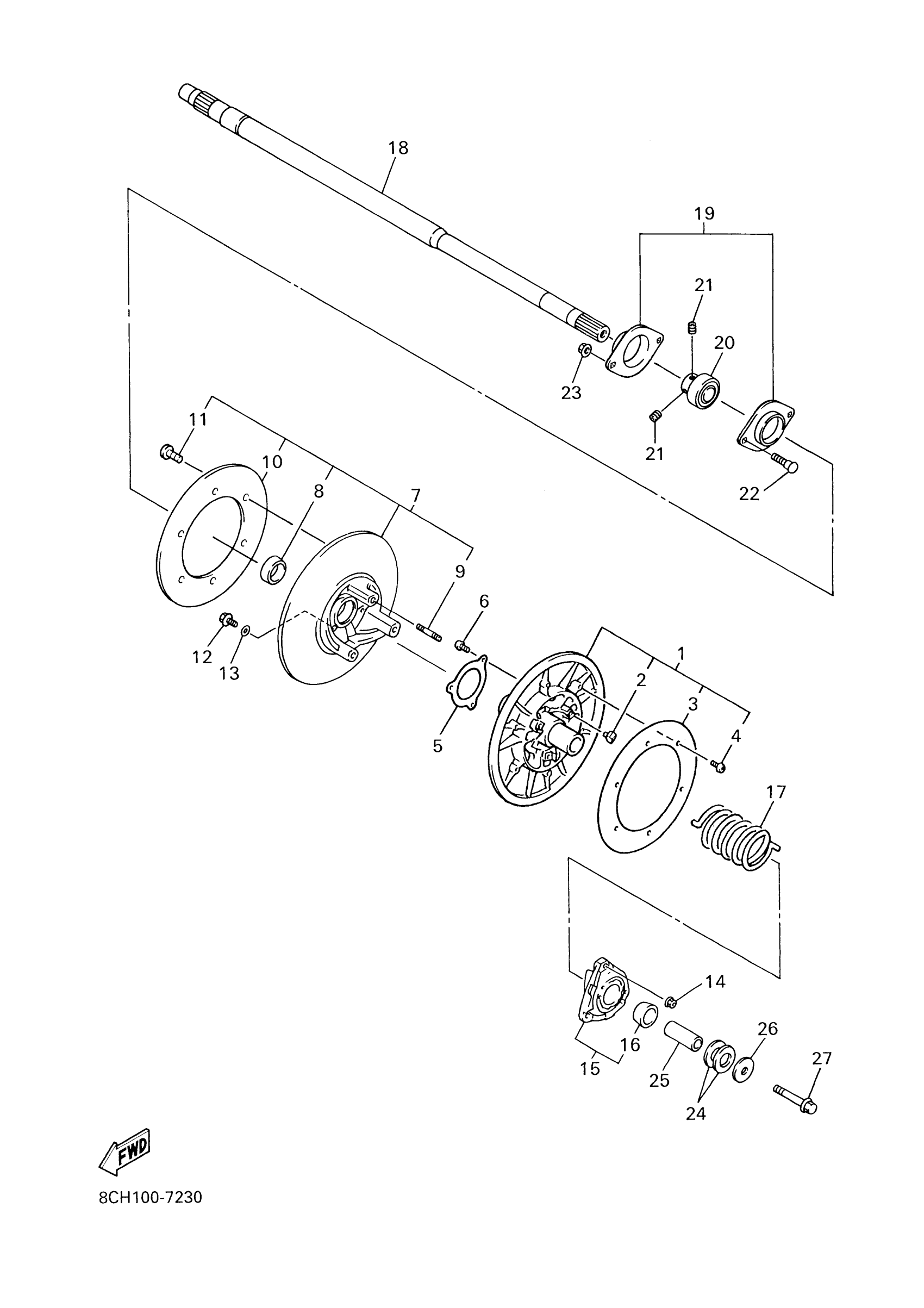

Find the part on the Secondary Sheave diagram for your 2000 Yamaha SX700SD 8CH40, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SX700SD 8CH40 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

—

$529.99

In stock

2

SHOE, RAMP

8AV-17688-10-00

1

$27.33

In stock

3

PLATE 1

8CM-17665-00-00

—

$36.28

In stock

4

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

5

STOPPER, HOLDER

8BV-17656-00-00

1

$20.20

In stock

6

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

7

SECONDARY SLIDING SHEAVE

8BU-17670-10-00

—

$163.63

In stock

8

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1

$52.33

In stock

9

BOLT, STUD 3

95617-08630-00

1
Out of stock

10

PLATE 2

8CM-17675-00-00

—

$36.28

In stock

11

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

12

BOLT, WASHER BASED(8BN)

90105-06734-00

1

$2.82

In stock

13

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

13

WASHER, PLATE (22K)

90201-061H1-00

1
Out of stock

14

NUT(8BN)

90179-08655-00

1
Out of stock

15

SEAT SPRING SET

8BV-17604-51-00

—

$158.42

In stock

15

SEAT SPRING SET

8BV-17604-71-00

1

$228.66

In stock

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1

$52.33

In stock

17

SPRING, TORSION(8AB)

90508-536A9-00

—

$33.48

In stock

17

SPRING, TORSION(8BN)

90508-556A2-00

—

$40.38

In stock

18

SHAFT, SECONDARY

8CR-17681-10-00

1
Out of stock

19

HOUSING, BEARING

8CR-47631-01-00

—

$19.00

In stock

20

BEARING(8CJ)

93399-99943-00

—

$46.72

In stock

21

BOLT, SET

90113-06006-00

—

$3.60

In stock

22

BOLT(8CJ)

90109-083G2-00

—

$6.88

In stock

23

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

24

WASHER, PLATE (T=0.5)

90201-222F0-00

1

$5.89

In stock

24

WASHER, PLATE (8L8)

90201-225A4-00

—
Out of stock

25

COLLAR

90387-14019-00

—

$24.45

In stock

26

WASHER, PLATE

90201-14022-00

—

$4.86

In stock

27

BOLT, WASHER BASED(8CJ)

90105-14766-00

—

$23.89

In stock
