2000 Yamaha SX700SD 8CH40 Alternate Drive Setting 1 Diagram

← All diagrams

Find the part on the Alternate Drive Setting 1 diagram for your 2000 Yamaha SX700SD 8CH40, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

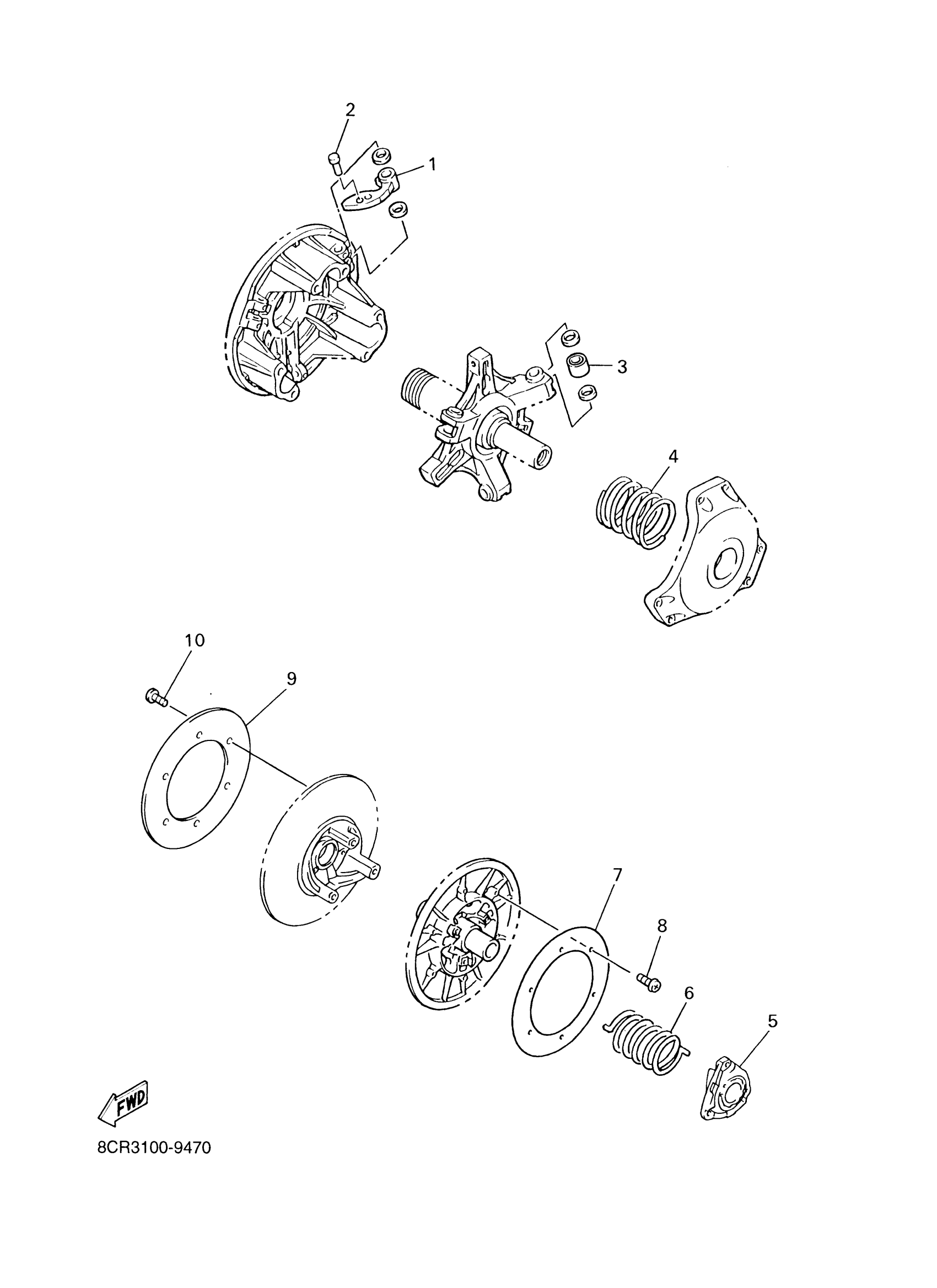

2000 Yamaha SX700SD 8CH40 Alternate Drive Setting 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WEIGHT COMP

8CH-17605-10-00

1
Out of stock

1

WEIGHT COMP

8CR-17605-10-00

1
Out of stock

1

WEIGHT COMP

8DF-17605-10-00

1
Out of stock

1

WEIGHT COMP

8DG-17605-00-00

1
Out of stock

1

WEIGHT COMP

8DJ-17605-00-00

1
Out of stock

1

WEIGHT COMP

8DN-17605-10-00

1
Out of stock

2

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

1
Out of stock

2

RIVET, COUNTER SUNK (8G8)

90261-06017-00

1
Out of stock

2

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

1
Out of stock

2

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

1
Out of stock

2

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

1
Out of stock

2

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

1
Out of stock

3

ROLLER, COMP

8CR-17624-00-00

1
Out of stock

3

ROLLER, COMP

8CR-17624-10-00

1
Out of stock

3

ROLLER, COMP

8CR-17624-20-00

1
Out of stock

3

ROLLER, COMP

8CR-17624-30-00

—
Out of stock

4

SPRING, COMPRESSION

90501-551L3-00

—
Out of stock

4

SPRING, COMPRESSIO

90501-570A0-00

—
Out of stock

4

SPRING, COMPRESSION

90501-552L5-00

—
Out of stock

4

SPRING, COMPRESSION

90501-581L5-00

—
Out of stock

4

SPRING, COMPRESSION

90501-581L6-00

—
Out of stock

4

SPRING, COMPRESSION

90501-582L1-00

—
Out of stock

4

SPRING, COMPRESSION

90501-582L2-00

—
Out of stock

4

SPRING, COMPRESSION

90501-582L6-00

—
Out of stock

4

SPRING, COMPRESSION

90501-582L7-00

—
Out of stock

4

SPRING, COMPRESSION

90501-583L0-00

—
Out of stock

4

SPRING, COMPRESSION

90501-583L1-00

—
Out of stock

4

SPRING, COMPRESSION

90501-583L4-00

—
Out of stock

4

SPRING, COMPRESSION

90501-583L5-00

—
Out of stock

4

SPRING, COMPRESSION

90501-601L7-00

—
Out of stock

4

SPRING, COMPRESSION

90501-601L8-00

—
Out of stock

4

SPRING, COMPRESSION

90501-602L3-00

—
Out of stock

4

SPRING, COMPRESSION

90501-602L8-00

—
Out of stock

4

SPRING, COMPRESSION

90501-602L9-00

—
Out of stock

4

SPRING, COMPRESSION

90501-603L2-00

—
Out of stock

4

SPRING, COMPRESSION

90501-603L3-00

—
Out of stock

4

SPRING, COMPRESSION

90501-624L8-00

—
Out of stock

5

SEAT SPRING SET

8BV-17604-11-00

—
Out of stock

5

SEAT SPRING SET

8BV-17604-31-00

—
Out of stock

5

SEAT SPRING SET

8BV-17604-51-00

—
Out of stock

5

SEAT SPRING SET

8BV-17604-71-00

1
Out of stock

5

SEAT SPRING SET

8BV-17604-91-00

—
Out of stock

6

SPRING, TORSION(8BF)

90508-500B1-00

—
Out of stock

6

SPRING, TORSION(8AB)

90508-536A9-00

—
Out of stock

6

SPRING, TORSION(8BN)

90508-556A2-00

—
Out of stock

6

SPRING, TORSION(8BT)

90508-556A7-00

—
Out of stock

7

PLATE 1

8CM-17665-00-00

—
Out of stock

8

GASKET, EXHAUST

98507-05008-00

—
Out of stock

9

PLATE 2

8CM-17675-00-00

—
Out of stock

10

GASKET, EXHAUST

98507-05008-00

—
Out of stock
