CYLINDER HEAD

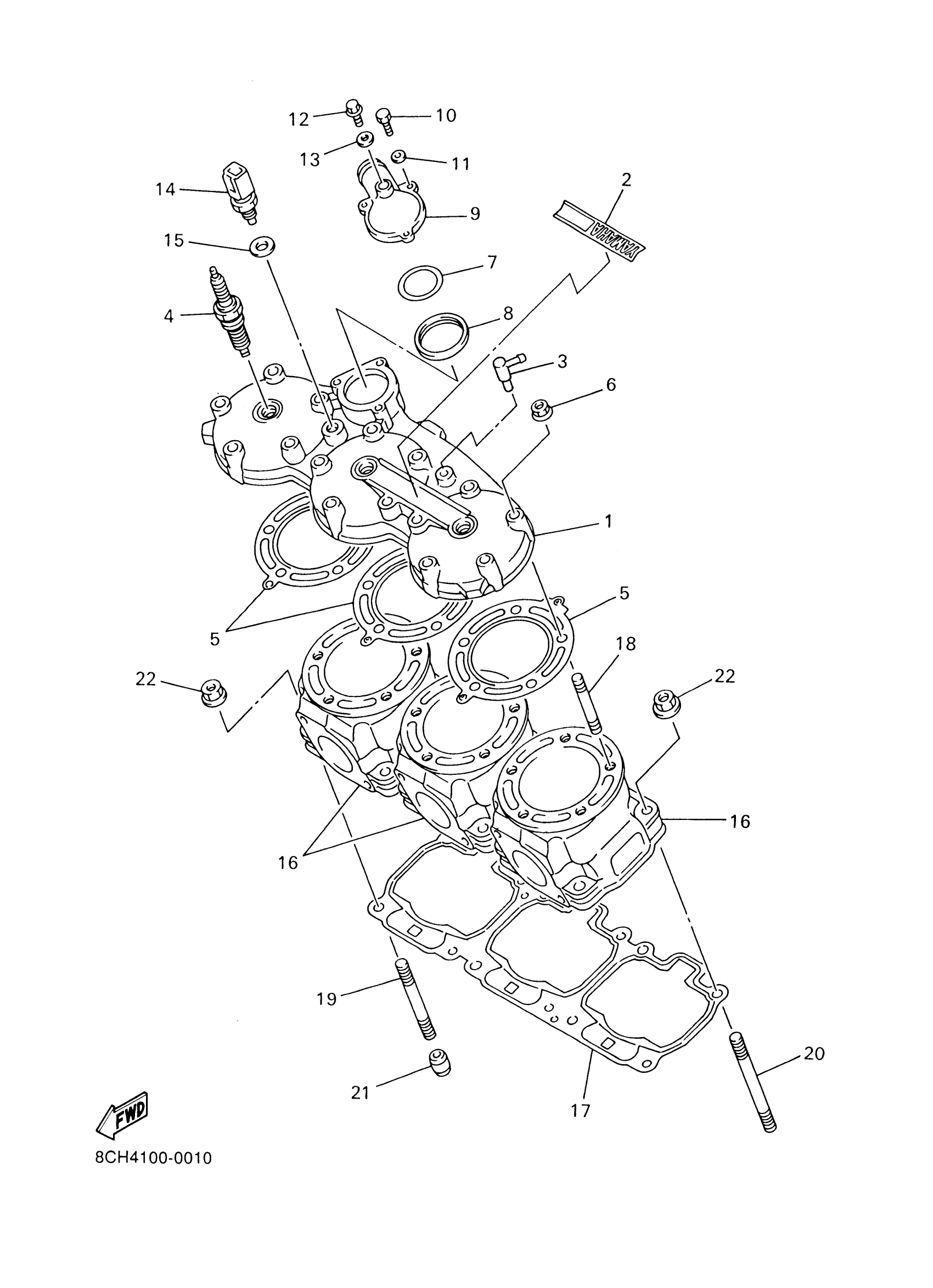

Yamaha SX700F (SX700R) 8CH5 2001 CYLINDER HEAD Diagram
#
Description
Price
1
HEAD, CYLINDER 1
8CH-11111-10-00
$528.99
1
HEAD, CYLINDER 1
8DG-11111-00-00
Unavailable
2
EMBLEM
8CH-1111K-00-00
Unavailable
2
EMBLEM
8DG-1111K-00-00
Unavailable
3
JOINT 1
8CH-12469-00-00
Unavailable
4
BR9ES NGK SOLID TOP PLUG 4PK
BR9-ES01P-C0-00
Unavailable
5
GASKET, CYLINDER HEAD 1
8CH-11181-01-00
$75.99
5
GASKET, CYLINDER HEAD 1
8DG-11181-00-00
Unavailable
6
NUT(55X)
90179-08491-00
$8.49
7
WASHER, PLATE (8U9)
90201-345G2-00
$12.49
8
SEAL, THERMOSTAT
8A7-12412-01-00
$16.49
9
COVER, THERMOSTAT
82M-12413-00-00
Unavailable
10
BOLT, HEXAGON
97017-06020-00
$4.06
11
WASHER(6TA)
92907-06600-00
$2.72
12
BOLT, FLANGE
95817-06012-00
$1.43
13
GASKET (4V2)
90430-06166-00
Unavailable
14
THERMOSENSOR ASSY
8CC-85790-01-00
Unavailable
15
WASHER, PLATE
90201-12790-00
Unavailable
16
CYLINDER 1
8CH-11311-02-00
Unavailable
16
CYLINDER 1
8DG-11311-00-00
Unavailable
17
GASKET, CYLINDER
8CH-11351-00-00
Unavailable
18
BOLT, STUD (5X4)
90116-08392-00
Unavailable
19
BOLT STUD 363111790000
90116-08104-00
Unavailable
20
BOLT, STUD (8H8)
90116-08302-00
Unavailable
21
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
22
NUT(55X)
90179-08491-00
$8.49
