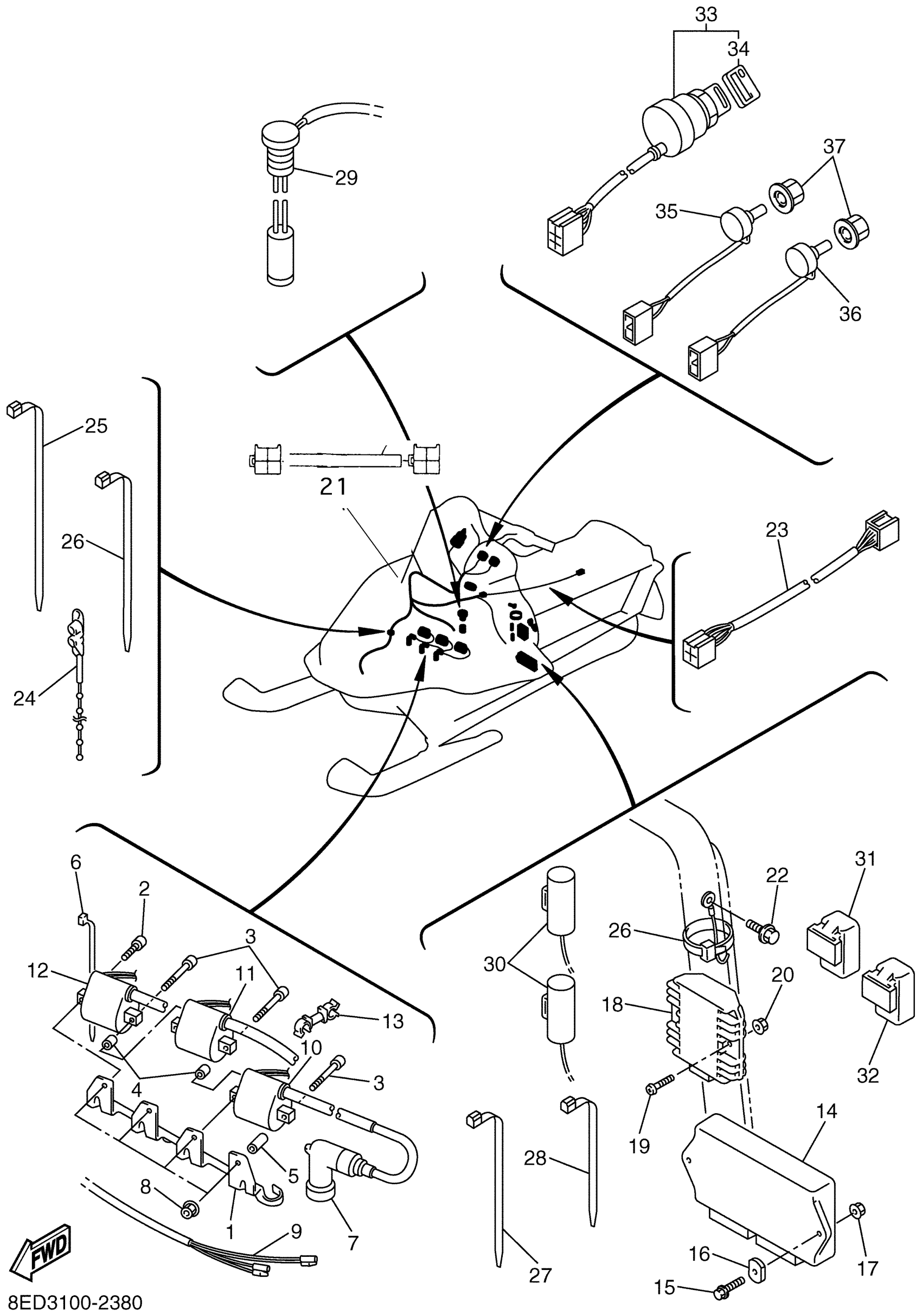

Yamaha SX600H (SX 600R) 8EA5 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

8DM-82316-00-00

Unavailable

2

BOLT,SOCKET

91317-06020-00

Unavailable

3

BOLT,SOCKET

91317-06040-00

$3.76

4

COLLAR

90387-07020-00

$8.49

5

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

6

CLAMP(4FM)

90464-15195-00

$4.41

7

PLUG CAP ASSY

8DF-82370-00-00

$41.99

8

NUT,SELF-LOCKING

95607-06200-00

$12.49

9

WIRE, SUB LEAD

8DM-82509-00-00

Unavailable

10

IGNITION COIL ASSY

8DF-82310-10-00

Unavailable

11

IGNITION COIL ASSY

8DF-82310-10-00

Unavailable

12

IGNITION COIL ASSY

8DM-82310-30-00

$142.99

13

CLAMP

90464-10002-00

Unavailable

14

C.D.I. UNIT ASSY

8EA-85540-00-00

Unavailable

15

BOLT, FLANGE

95817-06020-00

$3.81

16

NUT,SPEC'L SHAPE

90179-06W01-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

Unavailable

19

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

20

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

21

WIRE HARNESS ASSY

8ED-82590-00-00

Unavailable

22

BOLT, FLANGE

95817-06010-00

Unavailable

23

WIRE, LEAD

8DM-8471G-00-00

Unavailable

24

CLAMP

90464-20031-00

Unavailable

25

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

26

CLAMP(4FM)

90464-15195-00

$4.41

27

CLAMP(4FM)

90464-15195-00

$4.41

28

CLAMP

90464-13077-00

Unavailable

29

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

Unavailable

30

CONDENSER, SMOOTHING

3TC-81965-00-00

Unavailable

31

RELAY ASSY

5DM-81950-01-00

Unavailable

32

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

33

MAIN SWITCH ASSY

8DM-82510-00-00

Unavailable

34

CAP, KEY

526-82579-00-00

Unavailable

35

RESISTOR, VARIABLE

8DM-87283-00-00

Unavailable

36

RESISTOR, VARIABLE

8DM-87283-10-00

Unavailable

37

KNOB, VARIABLE RESISTOR

8DM-87284-00-00

Unavailable
