Description

Price

1

HOUSING,WATER PUMP

8CR-12421-01-00

Unavailable

2

BEARING(82M)

93306-20117-00

$34.99

3

SEAL, MECHANICAL

82M-12438-00-00

Unavailable

4

STOPPER

82M-12437-00-00

Unavailable

5

WASHER, PLATE 2562171800

90201-08088-00

Unavailable

6

IMPELLER, WATER PUMP

82M-12451-00-00

Unavailable

7

IMPELLER SHAFT ASSY

8CR-12450-00-00

Unavailable

8

COVER, HOUSING

8CR-12422-10-00

Unavailable

9

JOINT 1

8CH-12469-00-00

Unavailable

10

O-RING

8CR-12439-00-00

Unavailable

11

SCREW, PAN

98507-06035-00

$8.49

12

WASHER(6TA)

92907-06600-00

$2.72

13

BOLT, FLANGE

95817-08040-00

$7.49

14

PIN, DOWEL(3VD)

99530-10114-00

$2.55

15

BELT 1

82M-12444-00-00

$31.99

16

PIPE 1

8CR-12481-00-00

Unavailable

17

CLIP (8M6)

90467-28046-00

Unavailable

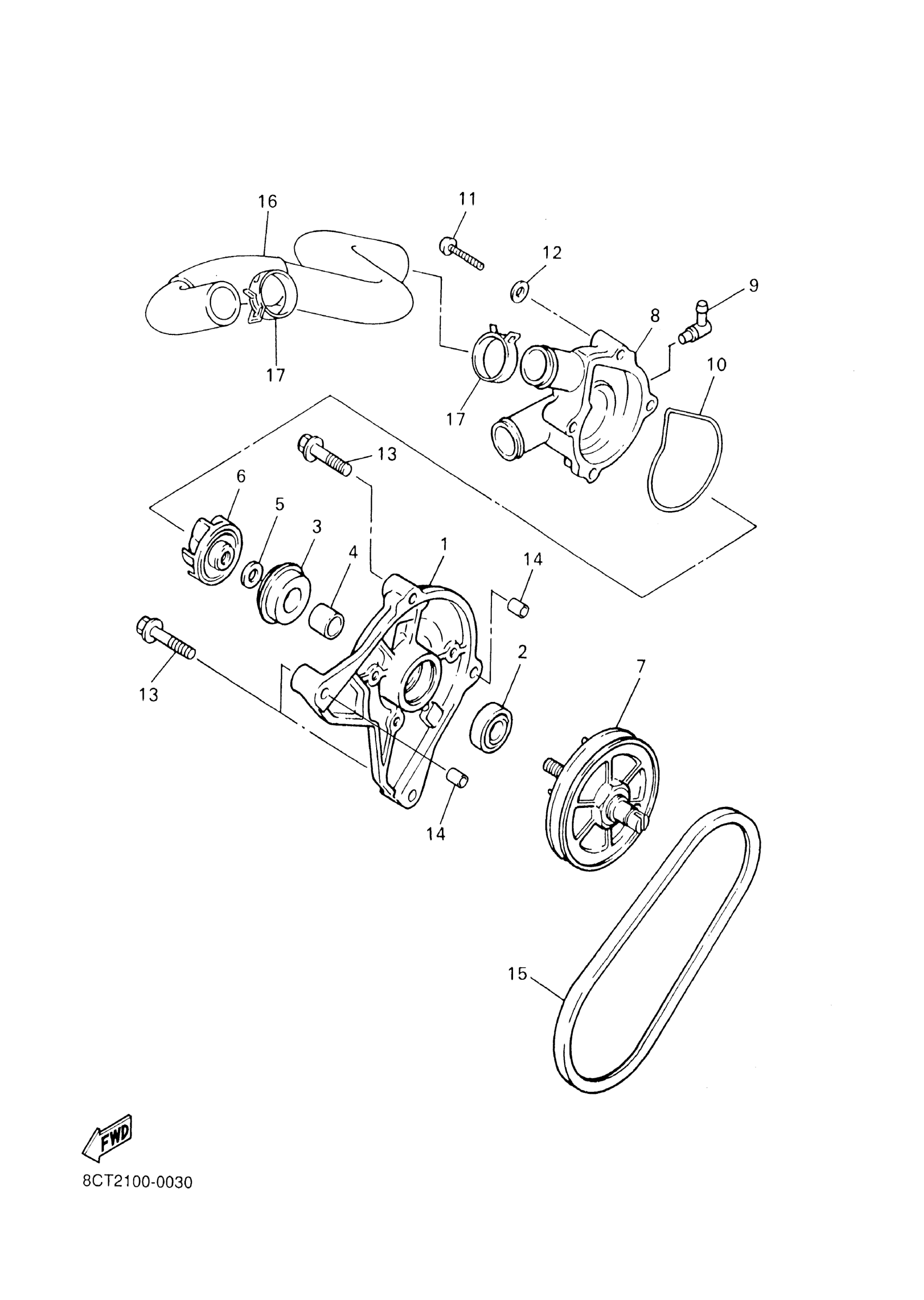

Yamaha SX500F (SX500R) 8CT3 2001 WATER PUMP Diagram

HOUSING,WATER PUMP

BEARING(82M)

SEAL, MECHANICAL

STOPPER

WASHER, PLATE 2562171800

IMPELLER, WATER PUMP

IMPELLER SHAFT ASSY

COVER, HOUSING

JOINT 1

O-RING

SCREW, PAN

WASHER(6TA)

BOLT, FLANGE

PIN, DOWEL(3VD)

BELT 1

PIPE 1

CLIP (8M6)
