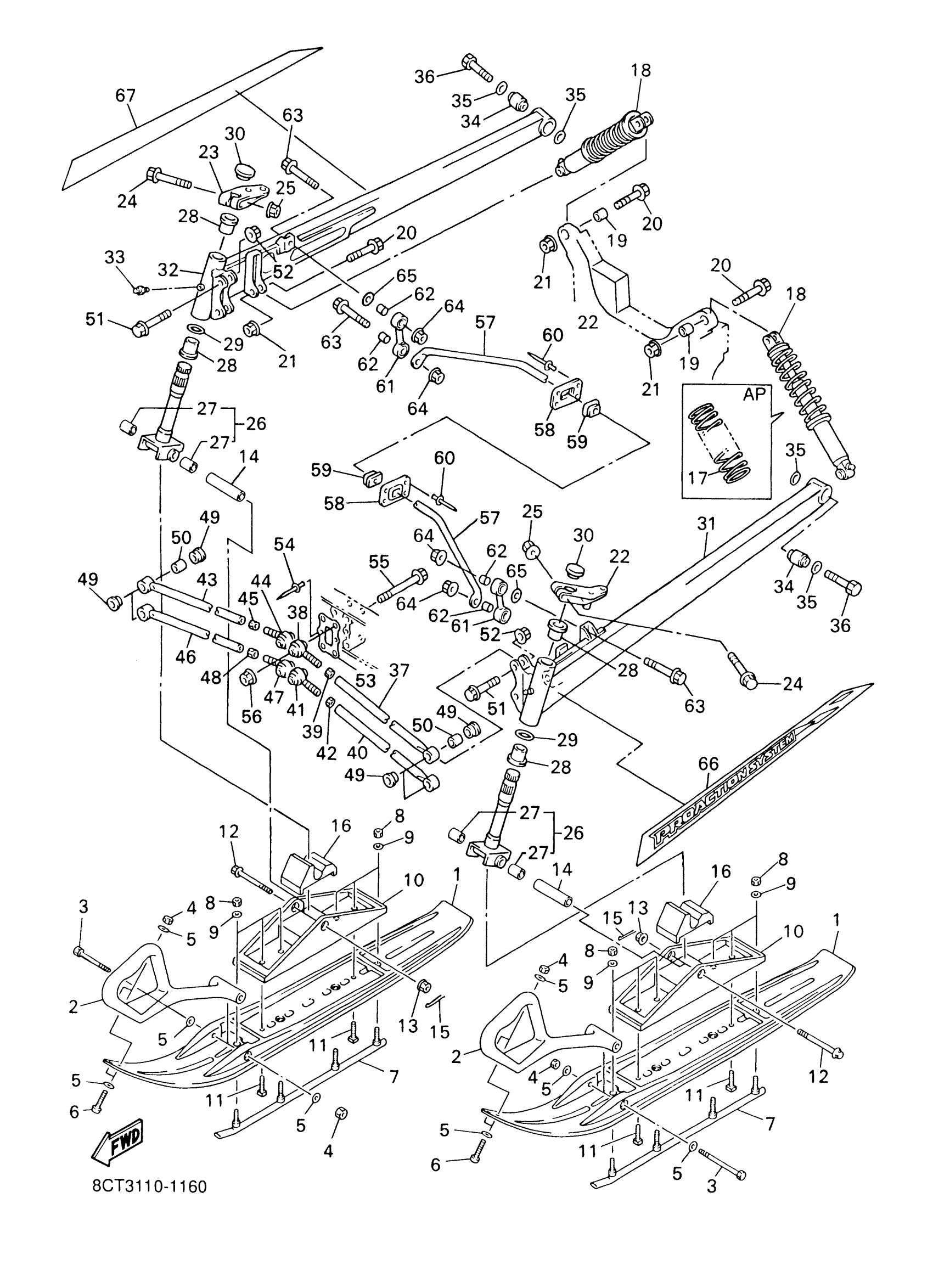

Yamaha SX500F (SX500R) 8CT3 2001 SKI Diagram
#
1
SKI 1
8DF-23711-19-00
Unavailable
2
GYT/8DF SKI HANDLE BLUE
GYT-8DN91-35-BL
Unavailable
3
BOLT, REINF. HEAD 1
8DF-23755-00-00
Unavailable
4
NUT, NYLON
95717-08300-00
$2.70
5
WASHER(6TC)
92907-08200-00
$8.49
6
BOLT, BUTTON HEAD
92017-08040-00
$3.71
7
RUNNER 1
8DF-23731-20-00
Unavailable
8
NUT, NYLON
95717-08300-00
$2.70
9
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
10
SADDLE 1
8EA-23766-00-00
Unavailable
11
BOLT, SQUARE
90108-08002-00
$12.49
12
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
COLLAR
90387-1012H-00
$24.99
15
PIN, COTTER
91490-20025-00
$1.99
16
STOPPER 1
8CS-23743-00-00
Unavailable
17
SPRING ASSY 1 (K=11-19-21N/MM)
8CH-23760-40-00
Unavailable
17
SPRING ASSY 1
8CH-23760-50-00
Unavailable
17
SPRING ASSY 1
8CH-23760-60-00
Unavailable
17
SPRING ASSY 1
8CX-23760-00-00
Unavailable
17
SPRING ASSY 1 (K=23N/MM)
8CX-23760-10-00
Unavailable
18
ABSORBER ASSY 1
8CT-2376A-50-00
Unavailable
19
BUSH
8CR-2376B-00-00
Unavailable
20
BOLT, FLANGE
90105-10030-00
Unavailable
21
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
22
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
23
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
24
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
25
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
26
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
27
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
28
BUSH, SOLID
90381-25115-00
Unavailable
29
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
30
CAP 1
8CR-23741-10-00
Unavailable
31
ARM, FRONT 1
8CR-2382E-20-00
Unavailable
32
ARM, FRONT 2
8CR-2382F-20-00
Unavailable
33
NIPPLE, GREASE
93700-06M03-00
Unavailable
34
DAMPER
8CR-2516A-00-00
Unavailable
35
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
36
BOLT(8CJ)
90101-12046-00
Unavailable
37
ARM, CONTROL 1
8CR-2384E-20-00
Unavailable
38
JOINT 2
8DN-23823-00-00
Unavailable
39
NUT, HEXAGON
95337-12600-00
Unavailable
40
ARM, CONTROL 2
8CR-2384F-20-00
Unavailable
41
JOINT 3
8DN-23832-00-00
Unavailable
42
NUT
95314-14600-00
Unavailable
43
ARM, CONTROL 1
8CR-2384E-20-00
Unavailable
44
JOINT 2
8DN-23823-00-00
Unavailable
45
NUT, HEXAGON
95337-12600-00
Unavailable
46
ARM, CONTROL 2
8CR-2384F-20-00
Unavailable
47
JOINT 3
8DN-23832-00-00
Unavailable
48
NUT
95314-14600-00
Unavailable
49
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
50
COLLAR(8CJ)
90387-1009K-00
Unavailable
51
BOLT, FLANGE
90105-10030-00
Unavailable
52
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
53
WASHER
8DF-23779-00-00
Unavailable
54
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
55
BOLT, FLANGE
90105-124A2-00
Unavailable
56
NUT, U FLANGE
95607-12200-00
Unavailable
57
BAR, STABILIZER FRONT
8CR-2386E-00-00
Unavailable
58
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
59
BUSH, STABILIZER FRONT
8CR-2386G-00-00
Unavailable
60
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
61
JOINT, STABILIZER 1 (STRONG BLUE)
8DF-2385L-00-00
Unavailable
62
COLLAR(8V7)
90387-087L3-00
Unavailable
63
BOLT, FLANGE
95817-08040-00
Unavailable
64
NUT, SELF-LOCKING
90185-08169-00
Unavailable
65
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
66
EMBLEM 15
8EA-77371-20-00
Unavailable
67
EMBLEM 16
8EA-77372-20-00
Unavailable
