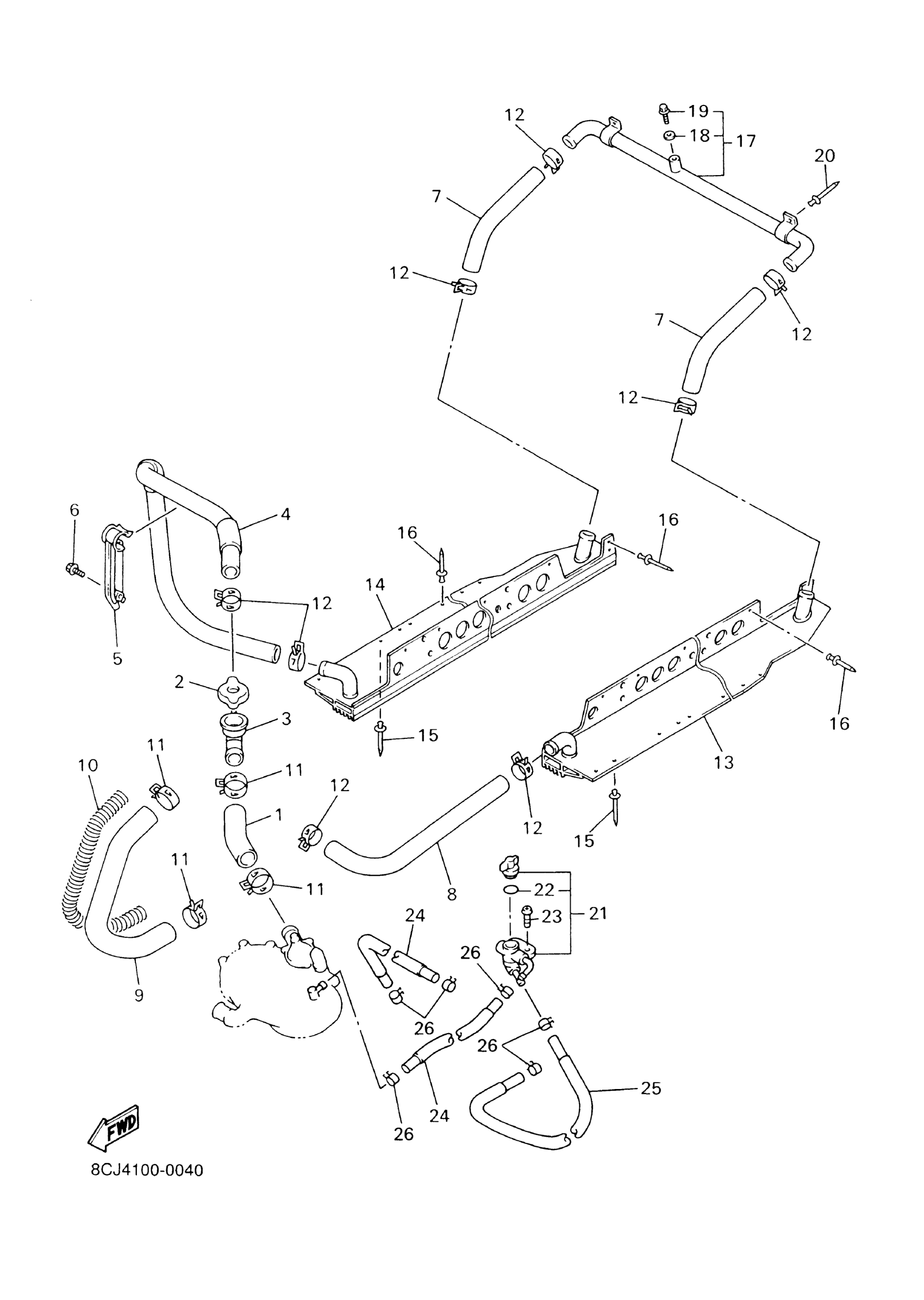

Yamaha SX500F (SX500R) 8CT3 2001 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8CR-12482-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

SUPT, FILLER NECK

8CR-12591-00-00

Unavailable

4

PIPE 3

8CR-12483-00-00

Unavailable

5

CLAMP 1

8CR-12491-00-00

Unavailable

6

BOLT, FLANGE

95817-06014-00

Unavailable

7

PIPE 4

8CR-12484-00-00

Unavailable

8

PIPE 5

8CR-12485-00-00

Unavailable

9

PIPE 6

8CR-12476-00-00

Unavailable

10

SPRING, COMPRESSION

90501-120K6-00

Unavailable

11

CLIP (8M6)

90467-28046-00

$16.99

12

CLIP (10V)

90467-23067-00

$7.49

13

HEAT EXCHANGER

8CR-1240E-03-00

Unavailable

14

HEAT EXCHANGER

8CR-1240F-03-00

Unavailable

15

RIVET, BLIND(8CR)

90267-47186-00

$2.97

16

RIVET, BLIND

90267-47195-00

Unavailable

17

HEAT EXCHANGER ASY

8CR-1241A-01-00

Unavailable

18

WASHER, SEAL (7G5)

90210-06006-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

RIVET, BLIND

90267-47195-00

Unavailable

21

COCK ASSY

8CR-1249A-01-00

Unavailable

22

. SEAL, COCK

8CH-24534-00-00

Unavailable

23

SCREW, BINDING

98907-06020-00

Unavailable

24

HOSE 1

8CR-1243A-00-00

Unavailable

25

HOSE 2

8CR-1243E-00-00

Unavailable

26

CLIP

90467-11028-00

Unavailable
