- SX500D (SX500R) 8CT2 2000
ALTERNATE SEMI DOUBLE SEAT

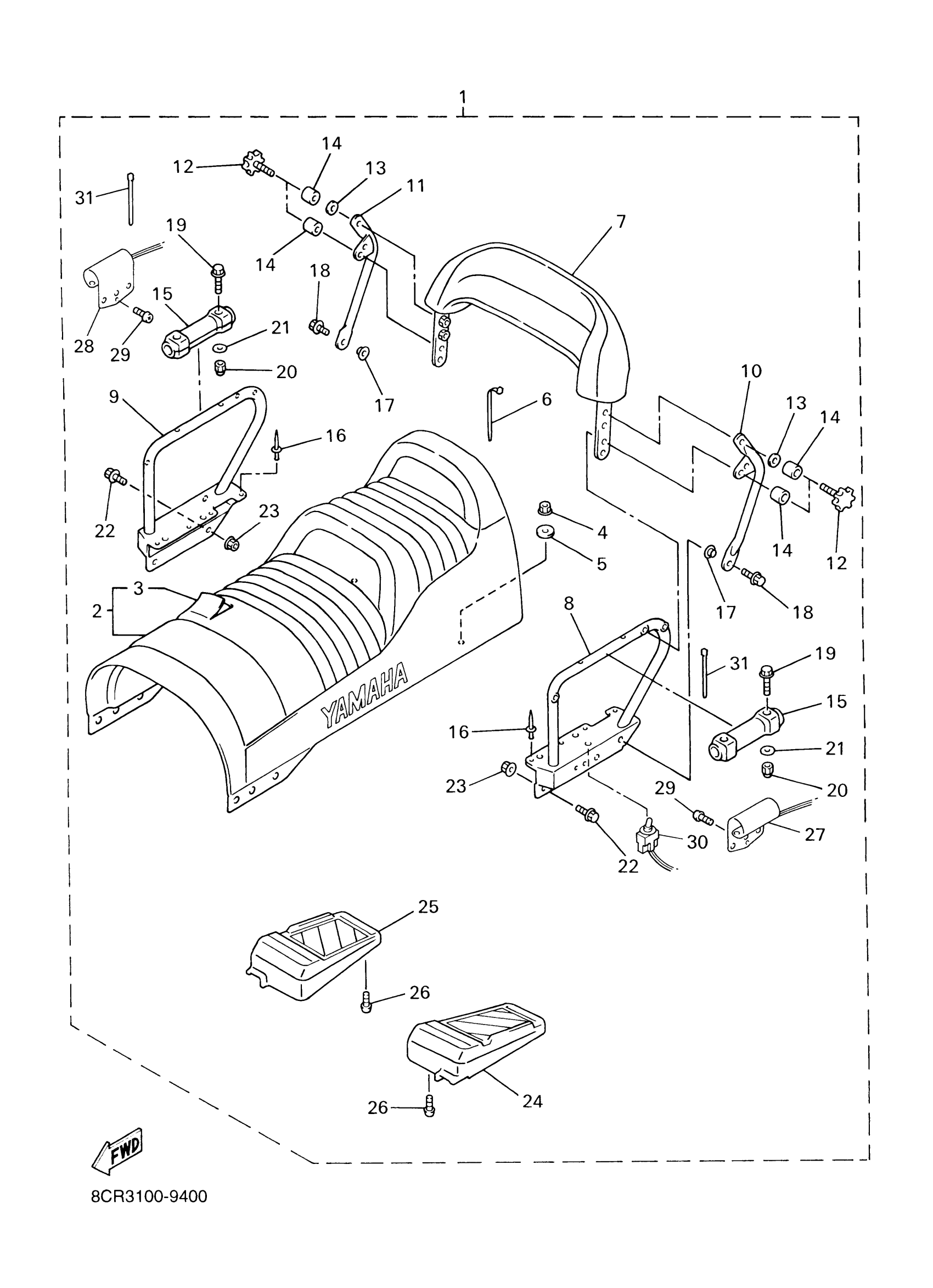

Yamaha SX500D (SX500R) 8CT2 2000 ALTERNATE SEMI DOUBLE SEAT Diagram
#
1
DELUXE 2-UP SEAT ASSY
8CR-W247R-10-00
Unavailable
2
. DOUBLE SEAT ASSY
8CW-24730-20-00
Unavailable
3
.. COVER, SEAT
8CW-2470F-20-00
Unavailable
4
NUT, NYLON
95717-08300-00
$2.70
5
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
6
CLAMP(4FM)
90464-15195-00
$4.41
7
SEAT BACK ASSY
8CW-24790-10-00
Unavailable
8
BRACKET, ASSIST GRIP 1
8CW-2474H-01-00
Unavailable
9
BRACKET, ASSIST GRIP 2
8CW-2474J-01-00
Unavailable
10
BRACKET, SEAT BACK
8CW-24797-00-00
Unavailable
11
BRACKET, SEAT
8CW-2479L-00-00
Unavailable
12
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
13
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
14
DAMPER, SEAT
8CW-24737-00-00
$13.49
15
. ASSIST, GRIP
8CW-2474A-00-00
Unavailable
16
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
17
COLLAR
90387-08079-00
Unavailable
18
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
19
BOLT, FLANGE
95817-06040-00
Unavailable
20
NUT(4MY)
95307-06800-00
Unavailable
21
WASHER(6TA)
92907-06200-00
Unavailable
22
BOLT, FLANGE
95817-08014-00
Unavailable
23
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
24
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
25
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
26
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
27
ASSIST GRIP WARMER ASSY 1
8CW-2474B-00-00
Unavailable
28
. ASSIST GRIP WARMER ASSY 2
8CW-2474C-00-00
Unavailable
29
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
30
. SWITCH
8CY-82917-00-00
Unavailable
31
CLAMP(4FM)
90464-15195-00
$4.41
