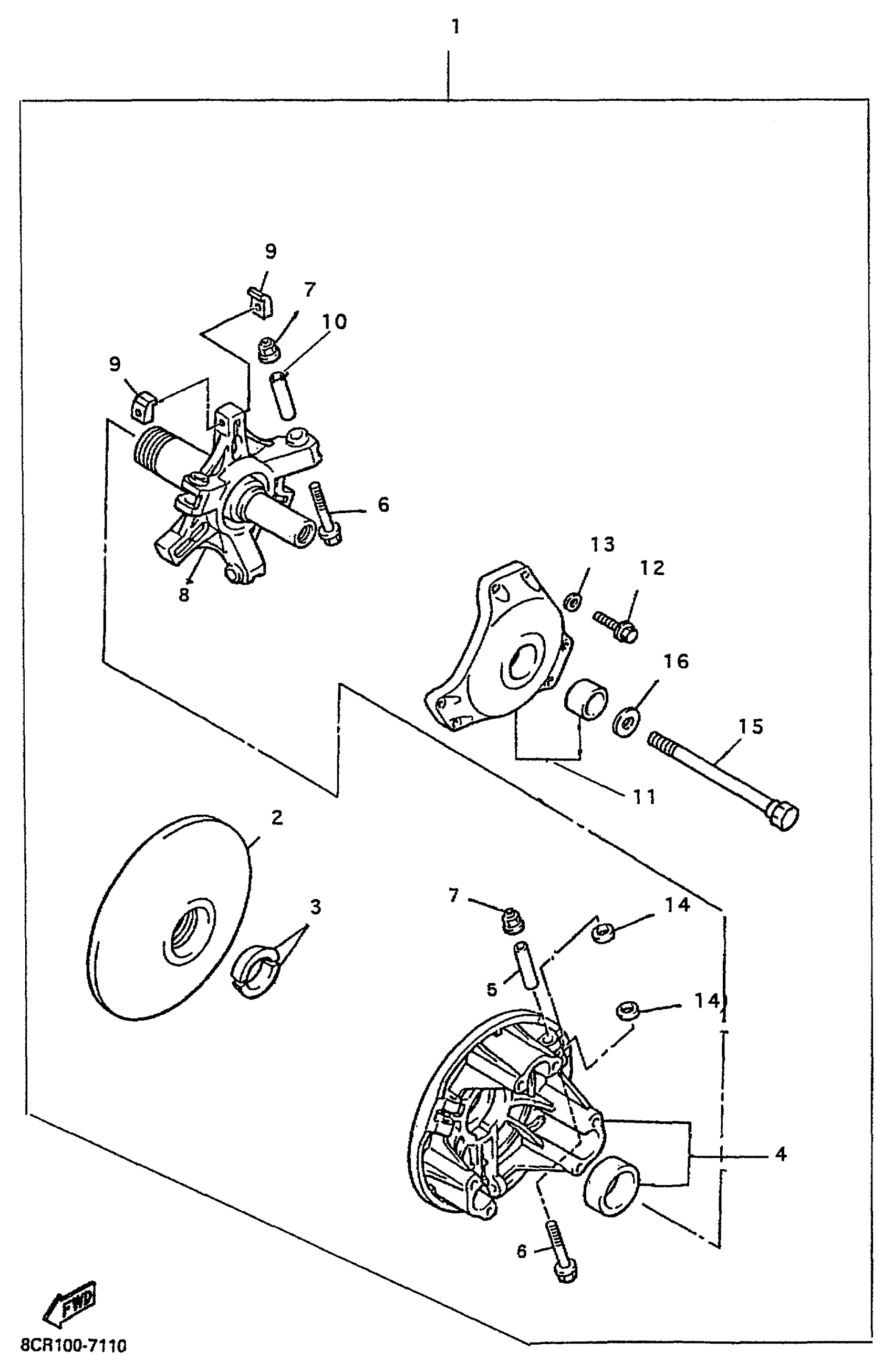

Yamaha SX500D (SX500R) 8CT2 2000 ALTERNATE CLUTCH REPAIR KIT Diagram

Description

Price

CLUTCH REPAIR KIT

8CT-17601-09-00

Unavailable

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$212.99

STOPPER

8V0-17639-00-00

$14.99

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

Unavailable

COLLAR

90387-0514T-00

$16.99

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

NUT, S/L FLANGE

95607-05200-00

$9.49

SPIDER COMP.

8CA-17640-12-00

Unavailable

SLIDER

8BW-17653-00-00

$16.49

COLLAR

90387-0514U-00

$20.99

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

$186.99

BOLT, HEXAGON

97017-06030-00

$3.61

WASHER(6TA)

92907-06600-00

$2.72

WASHER, PLATE(88R)

90202-08204-00

$9.49

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

WASHER(JN5)

92907-16100-00

Unavailable
