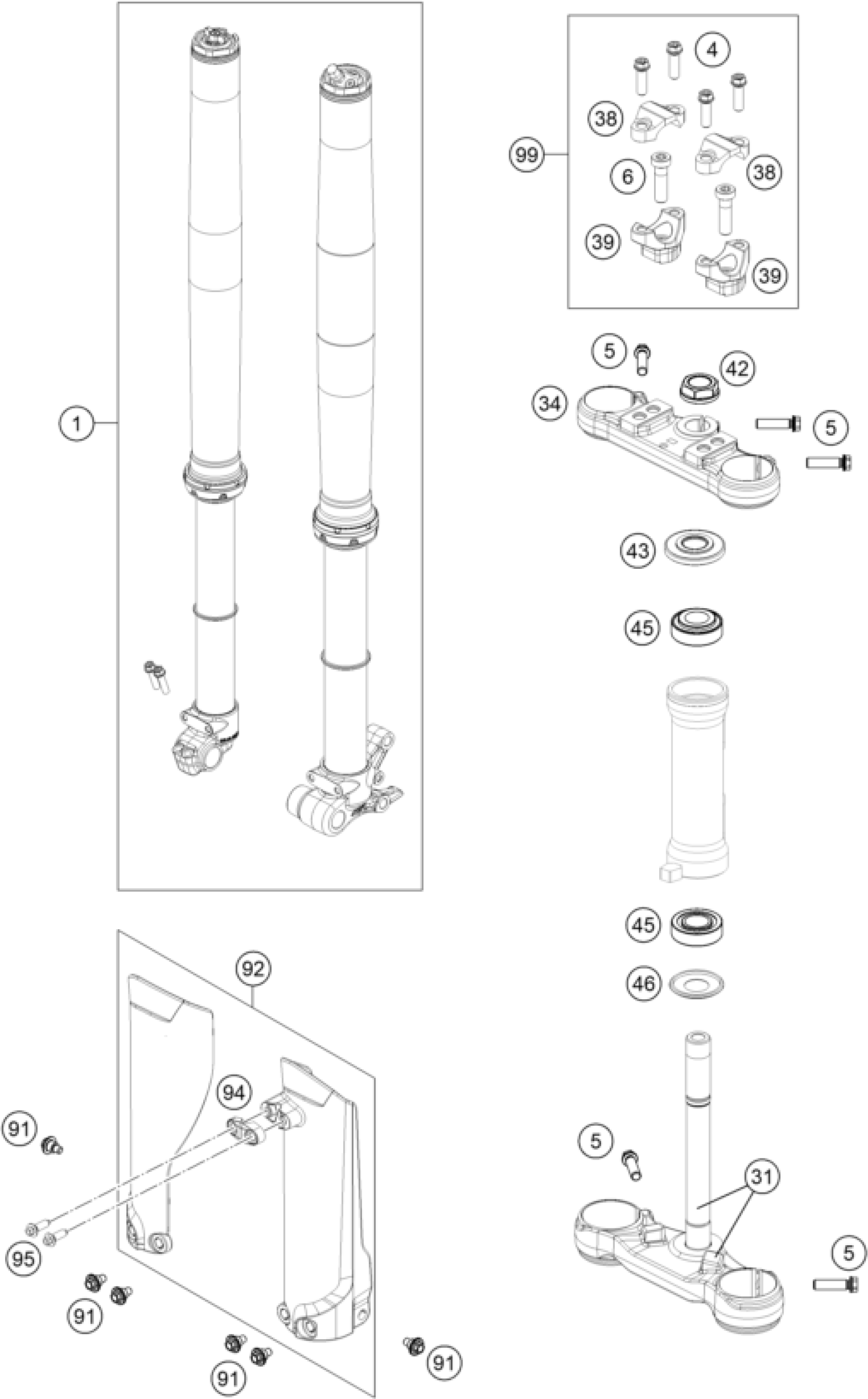

KTM SX-E 5 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 50 SX/TC/MC/E 24

A400C102X106000

$1,302.89

4

HH collar screw M8x25

0025080256

$2.05

5

HH collar screw M8x30

0025080306

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

31

Bottom triple clamp, complete,

45301032022

$208.12

34

upper triple clamp

45301034122

$144.73

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

39

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

Unavailable

42

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

43

Steering head seal

A53501084000

$25.14

45

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

46

Steering head seal

0780000304400

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork protection kit SX-E 25

46301094000EBF

Unavailable

94

Clamp for brake hose

46301085000EB

$11.30

95

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

99

HANDLEBAR SUPPORT KIT D28/H37

00050000921

$108.08
