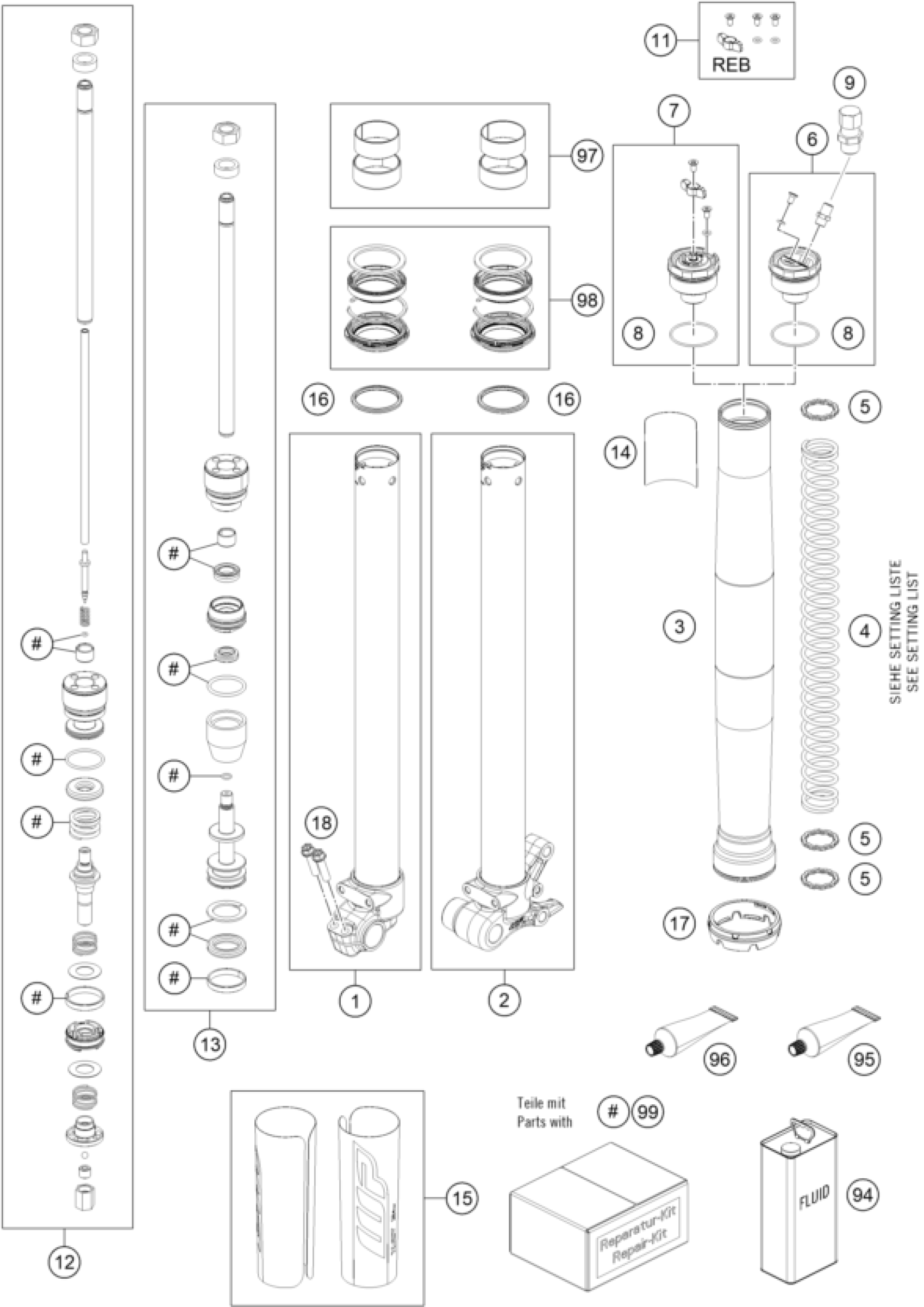

KTM SX-E 5 2024 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle-clamp right cpl. E3 MY202

S443500003S0200

$310.04

2

Fork shoe left cmpl.

S443500000S0300

$389.04

3

Fork outer tube 36x425 dt42 db

35480585

$166.70

4

SPRING 1,8 N/MM SET

95010055S

Unavailable

4

SPRING 2.0N/MM SET D=3.1MM

95010051S

$130.89

4

SPRING 2,2 N/MM SET

95010052S

Unavailable

5

Washer 22x30x2,5

35480497

Unavailable

6

Screw cap M38x1,5 air d42 cpl.

35480599S

$82.46

7

Screw cap M38x1,5 d42 cpl.

35480600S

$82.27

8

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

9

Schrader valve M8x1 cmpl.

48601494S

$24.98

11

Adjuster Kit screw cap

RP10021T

$5.70

12

pistonrod cpl. Right

35480551S6

$242.06

13

pistonrodcpl. Left

35480551S7

$216.82

14

sticker warning 60x40

52000350

$9.34

15

Sticker set XACT AER 140x141

52000223SET

$31.97

16

Stroke indicator d35 red

35480583

$4.11

17

Fork protection ring 48,4mm

35480623

$2.05

18

HH collar screw M6x25 TX30

0025060256

$3.08

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

95

Fuchs grease IPR (250g)

T14034

Unavailable

96

special grease AER Fork 400g

00062010053

Unavailable

97

BUSHING KIT 35MM

RP10006T

Unavailable

98

gasket kit 35mm black

RP10027T

Unavailable

99

REPAIR KIT 50+65SX AIR

RP10008T

Unavailable
