FRONT FORK DISASSEMBLED

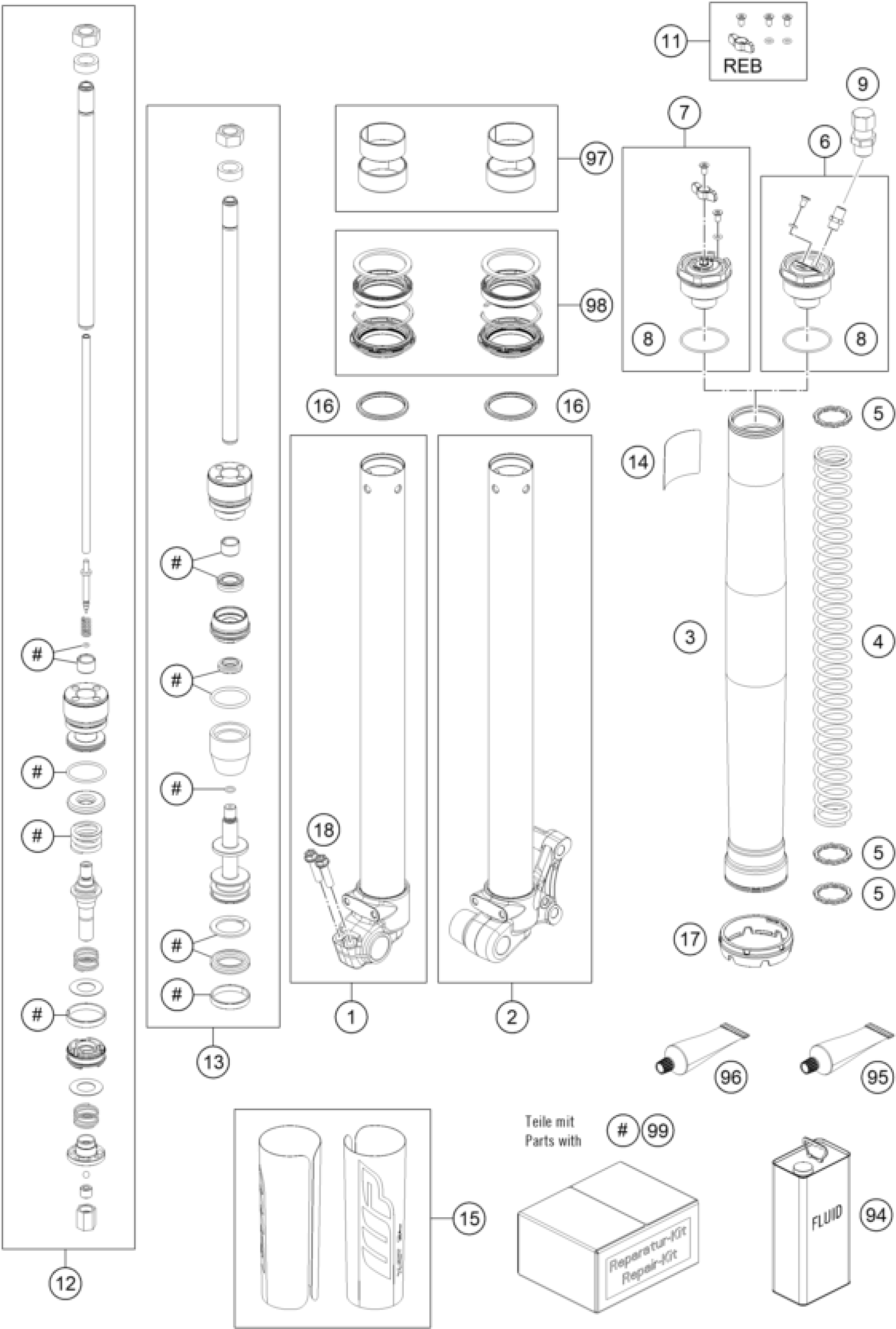

KTM SX-E 5 2020 FRONT FORK DISASSEMBLED Diagram
#
Description
Price
1
AXLE CLAMP R/S CPL. W. TUBE
35480455S3
$326.87
2
AXLE CLAMP L/S CPL. W. TUBE
35480456S2
$332.01
3
Fork outer tube 36x425 dt44 db
35480556
$211.11
4
SPRING 2.0N/MM SET D=3.1MM
95010051S
$130.89
5
Washer 22x30x2,5
35480497
Unavailable
6
screw cap M38x1,5 air cpl.
35480591S
$80.96
7
Screw cover M38x1,5 cmpl.
35480592S
$79.47
8
O-ring 35x1,5 NBR70 yellow
46180581
$2.05
9
Schrader valve M8x1 cmpl.
48601494S
$24.98
11
Adjuster kit screw cap
RP10021
$5.70
12
pistonrod cpl. Right
35480551S6
$242.06
13
pistonrodcpl. Left
35480551S7
$216.82
94
Fork Fluid Viscosity 4.0 5L
48601166S1
Unavailable
96
special grease AER Fork 400g
00062010053
Unavailable
97
BUSHING KIT 35MM
RP10006
Unavailable
98
gasket kit 35mm black
RP10027
Unavailable
99
REPAIR KIT 50+65SX AIR 2017
RP10008
Unavailable
14
Sticker warning 40x40
52000271
$24.02
15
Sticker set XACT AER 140x141
52000223SET
$31.97
16
Stroke indicator d35 red
35480583
$4.11
17
Fork Protection ring 48.1mm
35480581
$2.05
18
HH collar screw M6x25 TX30
0025060256
$3.08
95
Fuchs grease IPR (250g)
T14034
Unavailable
4
SPRING 1,8 N/MM SET
95010055S
Unavailable
4
SPRING 2,2 N/MM SET
95010052S
Unavailable
