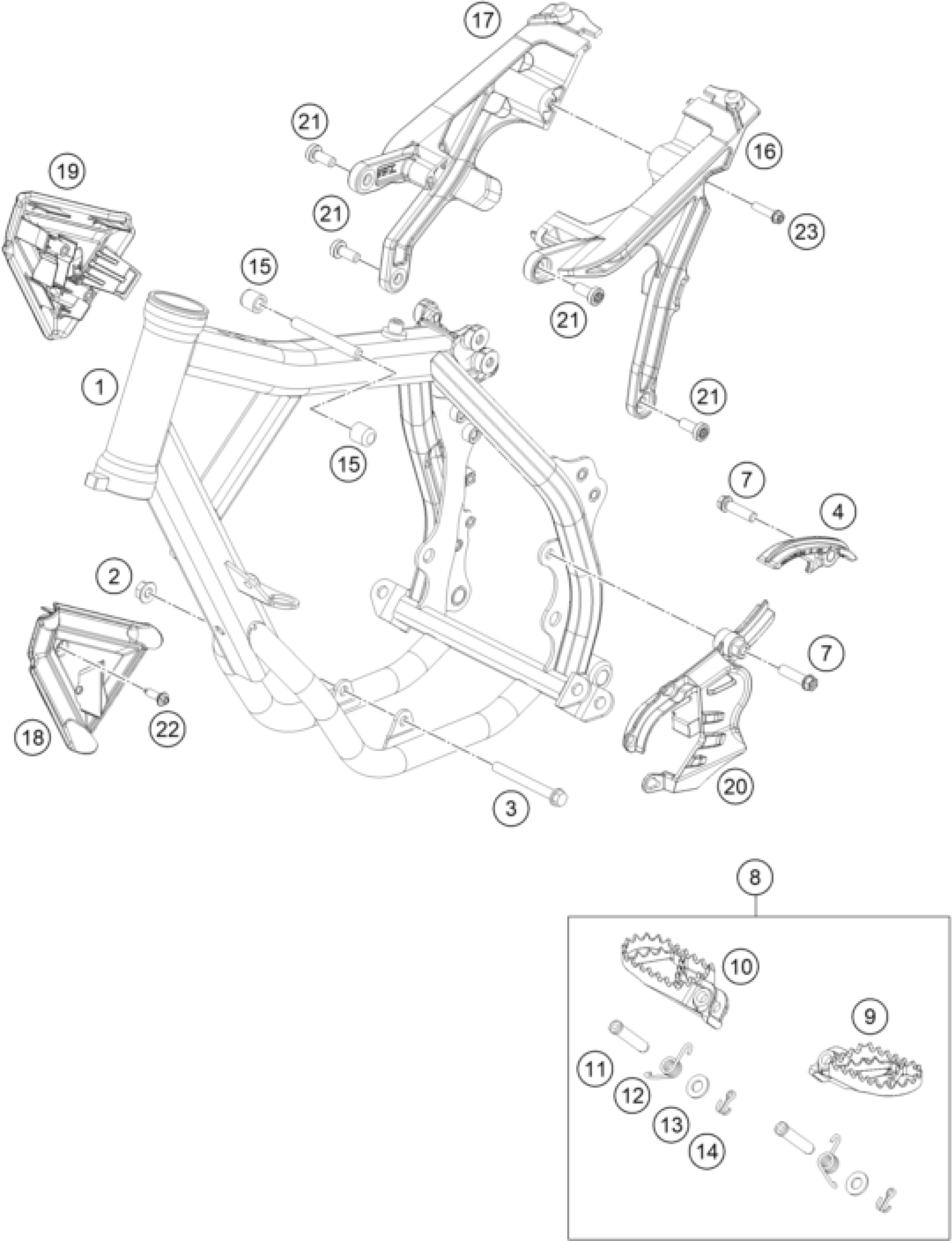

KTM SX-E 5 2020 FRAME Diagram

#

Description
Price

1

Frame 454T3

45403001000EB

$1,171.73

2

Self locking nut M8 10.9

54310086200

$3.08

3

Hexagonal bolt EN 1665-M8x80-1

01665080806

$1.49

4

Chain slider bottom

45303053000

$10.09

7

HH collar screw M8x30

0025080306

$3.08

8

FOOTREST CPL. 14

47103040033

$110.13

9

FOOTREST L/S

47103040000

$43.84

10

FOOTREST R/S

47103041000

$42.72

11

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

12

FOOTREST SPRING L/S & R/S

54603041000

$5.23

13

washer DIN 125 A 10.5

0125100003

$2.05

14

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

15

rubber grommet

76006014000

$1.49

16

Subframe left

45403002010

$34.96

17

Subframe right

45403002020

$34.96

18

Frame cover left

45403083000

$11.30

19

Frame cover right

45403084000

$11.96

20

Failure protection

45403096000

$20.00

21

SHCS M8x20 TX45

0035080206S

$5.32

22

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

23

HH collar screw M6x25 TX30

0025060256

$3.08
