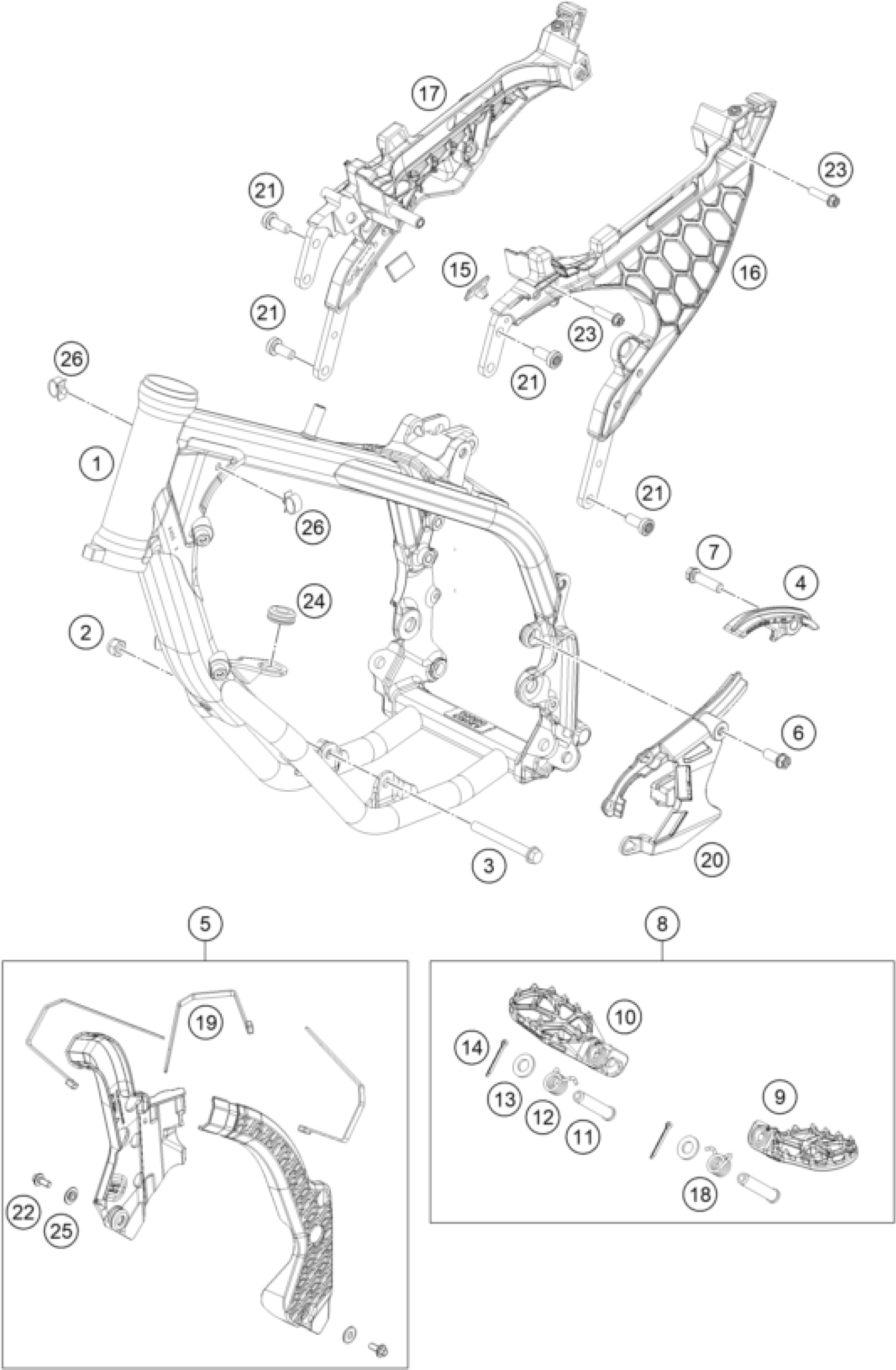

KTM SX-E 3 2025 FRAME Diagram

#

Description
Price

1

Frame

A20103001000EB

Unavailable

2

self-locking nut M8 Cu

51010086100

$3.08

3

Hex screw EN 1665-M8x85-10.9

01665080856

$1.96

4

Chain slider bottom

45303053000

$10.09

6

HH collar screw M6x12 TX30

0025060126

$3.08

7

HH collar screw M8x35 TX40

0025080356

$4.11

8

Footpeg set

A40003037033

$83.49

9

Footpeg left

A40003040000

$69.93

10

Footpeg right

A40003041000

$69.93

11

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

12

Footrest spring right

A46003045000

$1.49

13

washer DIN 125 A 10.5

0125100003

$2.05

14

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

16

Subframe left

A40003002010

$65.91

17

Subframe right

A40003002020

$80.03

20

Front sprocket cover

A20103096000

Unavailable

21

SHCS M8x20 TX45

0035080206S

$5.32

23

HH collar screw M6x25 TX30

0025060256

$3.08

24

RUBBER SLEEVE D=12MM

41001052000

$4.11

15

Isolation pad

77307040041

$2.05

18

Footrest spring left

A46003044000

$1.49

5

Frame protector set

A40003094000

Unavailable

19

Cable tie 200/4.6mm black

44011076200

$1.49

22

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

25

Bush f. frame protection 03

54803092060

$4.11

26

WIRING HOLDER 16MM

57013072100

$1.49
