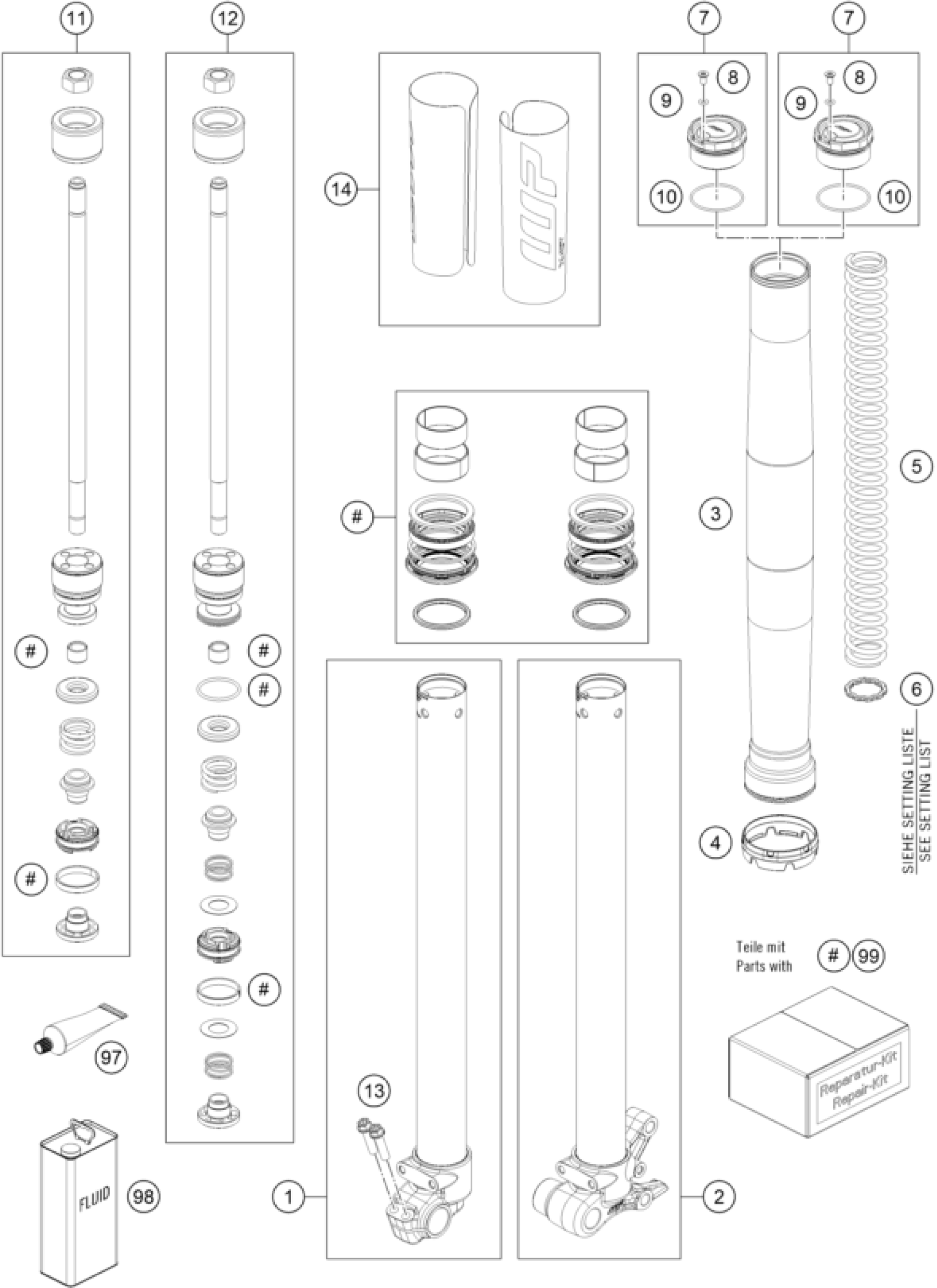

KTM SX-E 3 2023 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

Fork outer tube 36x425 dt42 db

35480585

$166.70

4

Fork protection ring 48,4mm

35480623

$2.05

5

main spring (29.0) 4.0-330 for

S80990001100000

$593.62

6

Washer 22x30x2,5

35480497

Unavailable

7

Screw cap M38x1,5 cpl.

35480602S

$52.54

8

ISA countersunk head screw M4x

00700007

$1.49

9

O-ring 4x1,5 NBR70

50180222

$1.49

10

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

13

HH collar screw M6x25

00250610

$1.49

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

99

Repair kit 35mm black 50SX/TC

RP10028

Unavailable

14

Sticker set XACT 140x141

52000220SET

$31.13

1

Axle-clamp right cpl. E3 MY202

S443500003S0200

$310.04

2

Axle-clamp left cpl. E3 MY2023

S443500000S0200

$324.62

11

Piston rod ri. with seal suppo

S501200015S0200

$132.48

12

Piston rod le. with main jet c

S501200015S0300

$116.77
