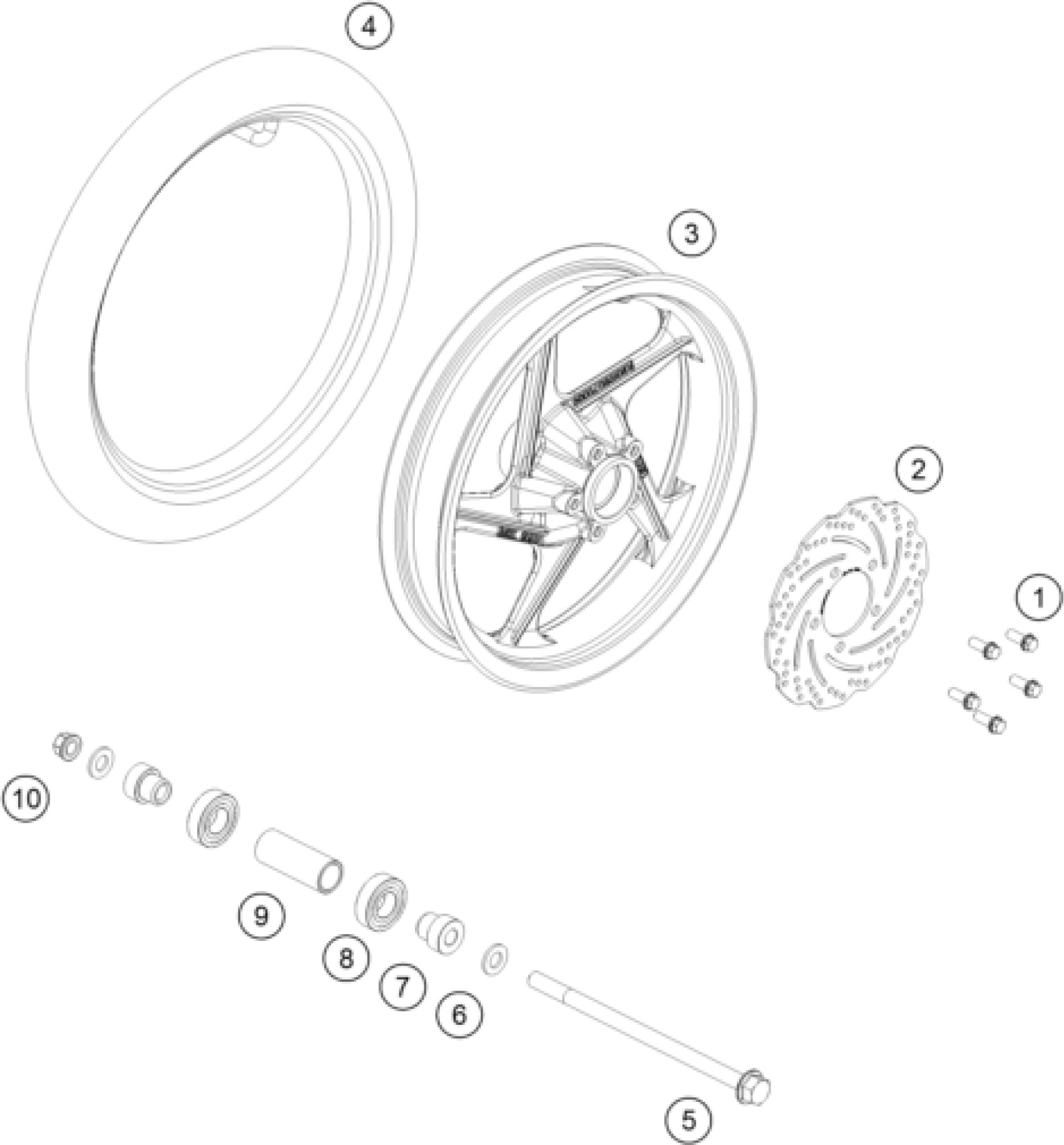

KTM SX-E 2 2024 FRONT WHEEL Diagram

#

Description

Price

1

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

2

Front and rear brake disc

A90109060000

$45.81

3

Front wheel 1.6x10

A90109070000

$134.16

4

Front tube 10"-2.5 angle valve

A90109075000

Unavailable

5

Hex screw EN 1665-M10x190-10.9

0016651019000

$13.46

6

washer DIN 125 A 10.5

0125100003

$2.05

7

Bushing 10.3x23x23

0800001102301

$5.79

8

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

9

Spacing tube front

45309011000

$11.59

10

COLLAR NUT M10 WS=13

54630044000

$1.49
