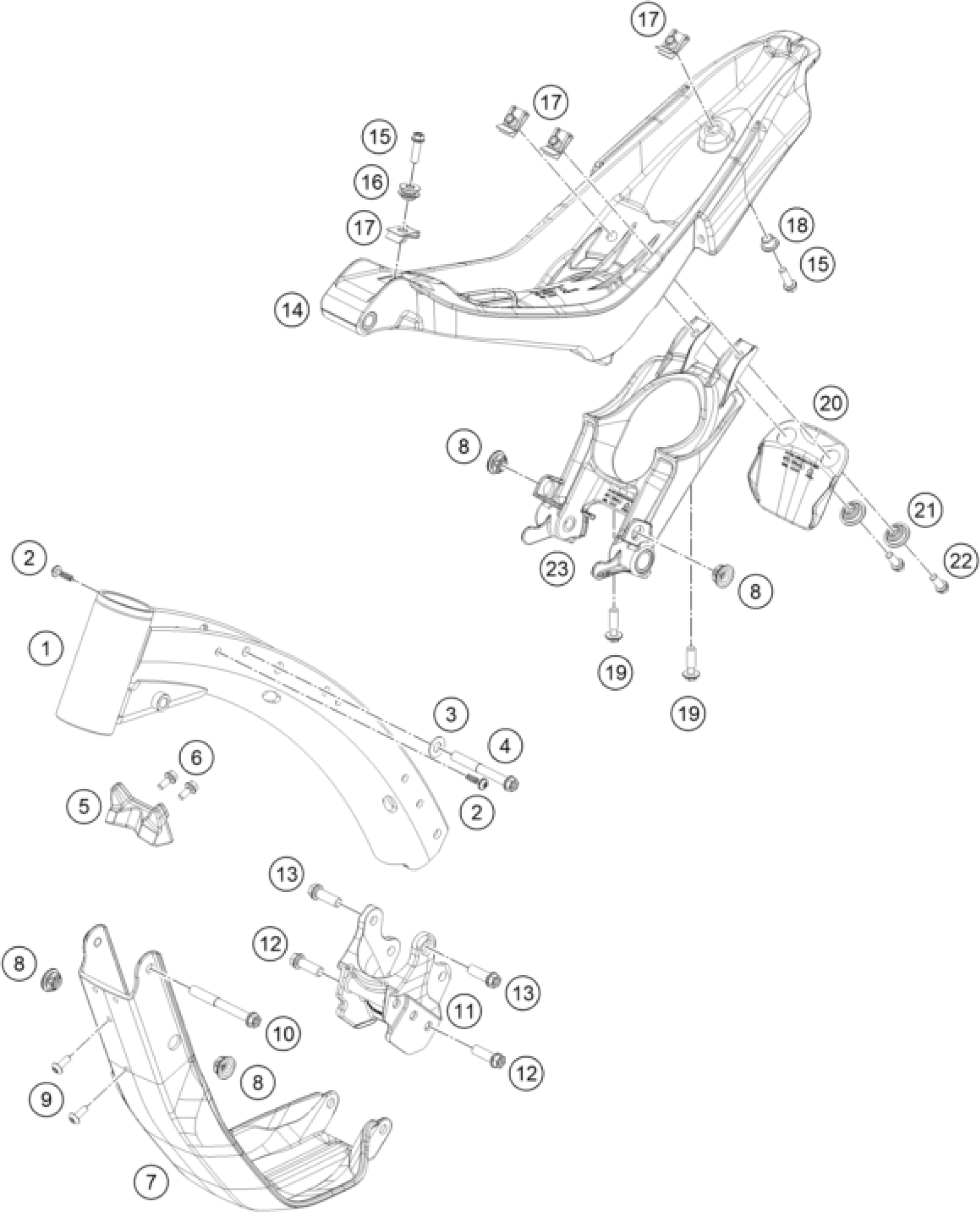

KTM SX-E 2 2024 FRAME Diagram

#

Description
Price

1

Frame E2

A90103001000C1

$1,469.34

2

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

3

WASHER 8,5X18X1 INOX

77003013050

$3.08

4

HH collar screw M8x65 TX40

0025080656

$4.11

5

Steering stop

A90101026000

$36.92

6

HH collar screw M5x12 TX30

0025050126

$3.08

7

Frame protector front top

A9010309101001

$106.49

8

quick release rubber grommet

47106003160

$4.11

9

Roundhead screw, M5x14 TX25

58605083114

$3.08

10

Special screw M8x70-8.8

0900000807000

$2.42

11

Footpeg bracket adapter

A90103037000

$95.36

12

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

13

HH collar screw M8x25

0025080256

$2.05

14

Subframe

A90103002000

$79.47

15

HH collar screw M6x20 TX30

0025060206

$3.08

16

Seat bushing

0800000601001

$3.64

17

clip nut M6

54603048100

$4.11

18

SPACER BUSHING FRONT FENDER

81208020000

$4.11

19

PLASTIC SCREW K7X25 PT1447

0016070253

$3.08

20

Shock absorber splash protecti

A90108075000

$16.82

21

COLLAR BUSHING 4,5/12,6/23

77306001030

$5.23

22

HH collar screw M6x16 TX30

0025060166

$3.08

23

Subframe support

A90103002064

$47.02
