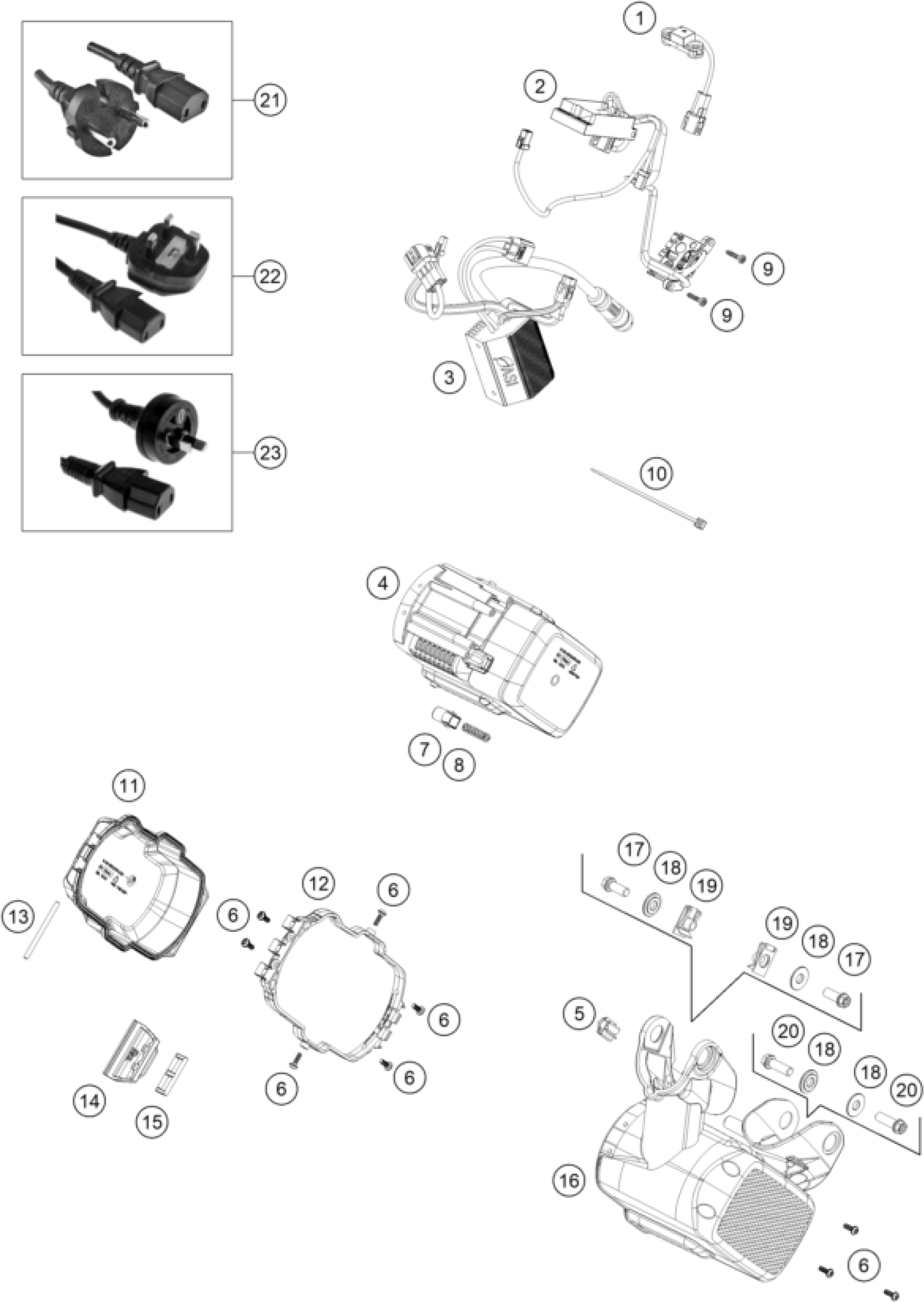

KTM SX-E 2 2024 BATTERY Diagram

#

Description
Price

1

Roll-over sensor

A46041088000

$36.64

2

Battery management system

A90146020000

$294.52

3

Engine control unit

A90141031000

$645.52

4

Battery compartment carrier in

A90111054010

$40.57

5

CABLE SUPPORT

61304042000

$2.05

6

EJOT Delta PT K40x12

0081040121

$3.08

7

Battery spring cap HQVAB

A90111054080

$1.49

8

Battery spring HQVAB

A90111054070

$1.49

9

EJOT PT screw K40x18 T20

0081240181

$1.49

10

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

11

Battery compartment cover

A90111054020C1C

$18.97

12

Battery compartment cpl.

A90111054044

$12.89

13

Basket shaft

0000070405800

$1.58

14

fastener

60714082000

$5.70

15

clamping lever

60714081000

$4.76

16

Battery compartment

A90111054000

$60.30

17

HH collar screw M8x20

0025080206

$2.05

18

Bush 8,5x22x3,2

0800000900400

$1.86

19

RANGE CHANGE METAL NUT M8

54603048000

$4.11

20

HH collar screw M8x25

0025080256

$2.05

21

EU power cord

A90129074010

Unavailable

22

UK power cord

A90129074020

Unavailable

23

OZ power cord

A90129074040

Unavailable
