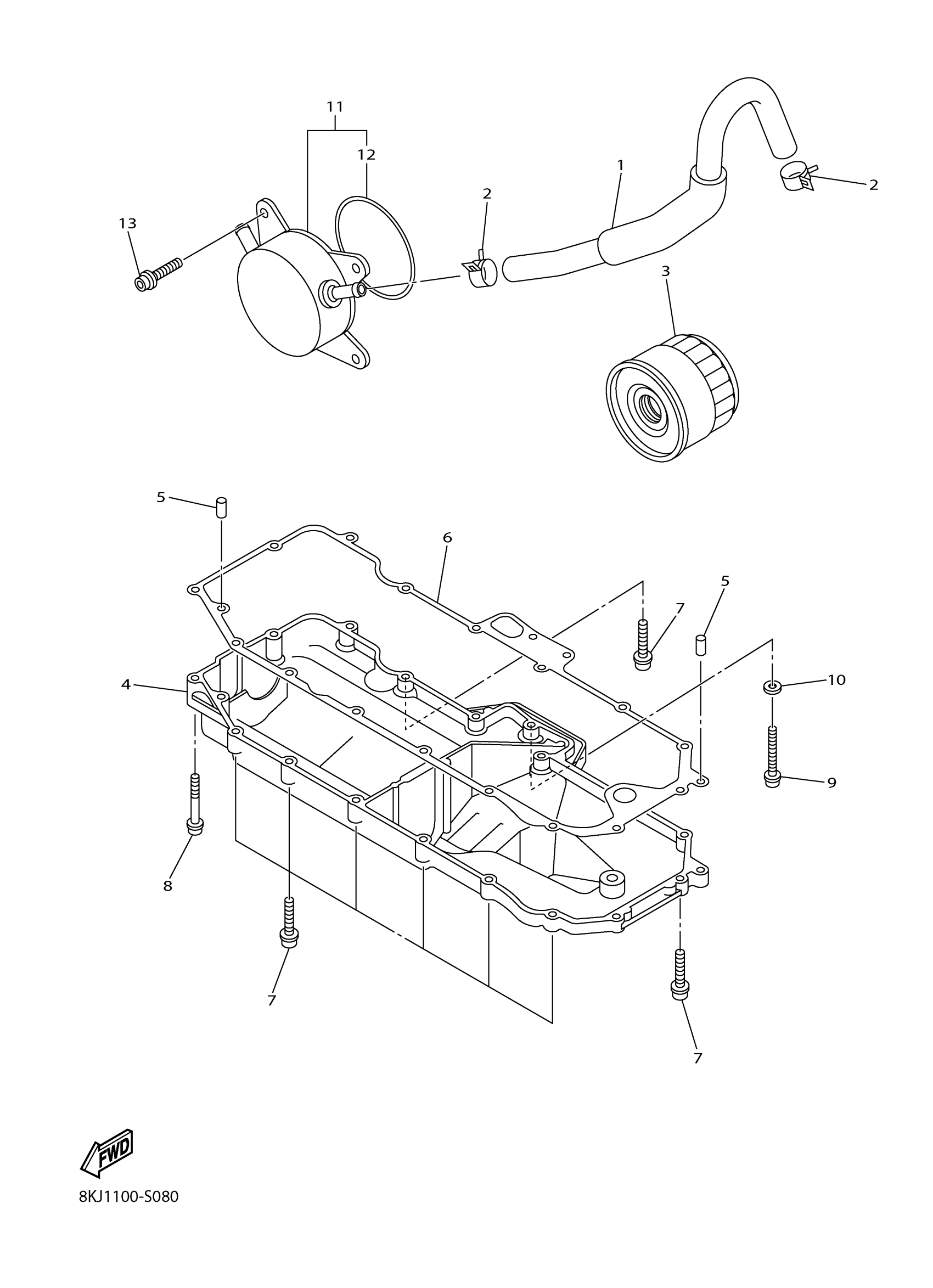

Yamaha SWENML62JW (SIDEWINDER M TX LE 162 50TH EARLY BUILD) 8MT3 2018 OIL CLEANER Diagram

#

Description
Price

1

HOSE 5

8ES-12588-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-18M09-00

$9.82

3

ELEMENT ASSY, OIL CLEANER

5DM-13440-00-00

$19.19

4

COVER, STRAINER

2HC-13417-00-00

$150.35

5

PIN, DOWEL

99530-08012-00

$4.89

6

GASKET, STRAINER C

2HC-13414-00-00

$16.30

7

BOLT,SOCKET

91317-06025-00

$1.91

8

BOLT,SOCKET

91317-06035-00

$3.27

9

BOLT

90109-06031-00

$1.80

10

GASKET (4V2)

90430-06166-00

$3.22

11

OIL COOLER ASSY

8ES-13470-01-00

$567.41

12

O-RING

5JW-13473-00-00

$33.95

13

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15
