- SWENML62JW (SIDEWINDER M TX LE 162 50TH EARLY BUILD) 8MT3 2018
ELECTRICAL 1

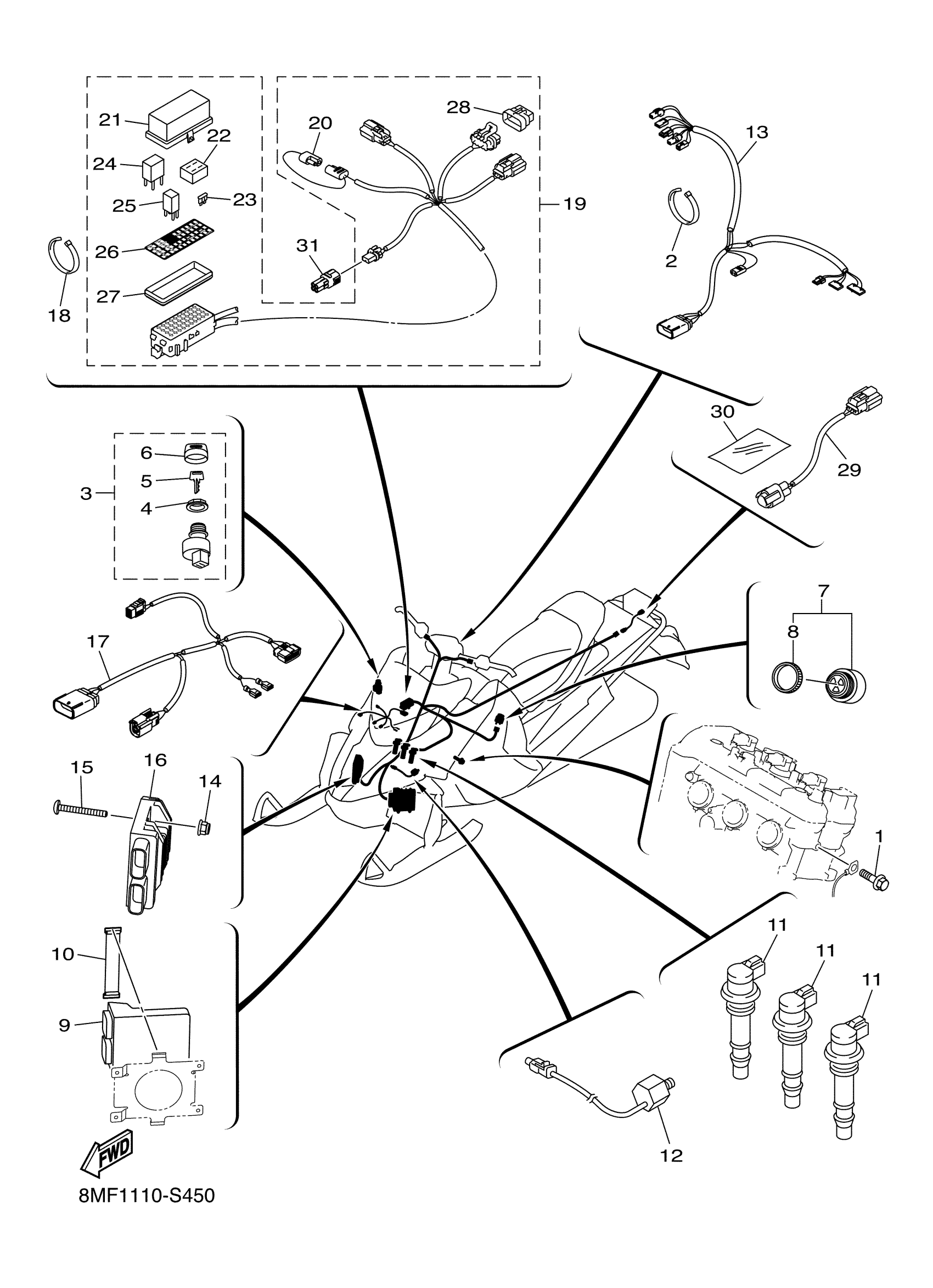

Yamaha SWENML62JW (SIDEWINDER M TX LE 162 50TH EARLY BUILD) 8MT3 2018 ELECTRICAL 1 Diagram
#
1
BOLT, FLANGE 1
8KC-RA1B5-00-00
$1.28
2
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
2
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
3
MAIN SWITCH ASSY
8JP-H2510-00-00
$53.99
4
. NUT, MAIN SWITCH
8JP-H2569-00-00
Unavailable
5
KEY (Y SERIESE, LE
8JP-H2511-00-00
$8.49
5
KEY (Z SERIES, RIG
8JP-H2511-10-00
$7.49
6
CAP, KEY
8JP-H2577-01-00
$18.99
7
ALARM UNIT
8JP-H2564-00-00
$97.99
8
RING, RETAINING
8JP-H4395-00-00
$15.99
9
ENGINE CONTROL UNI
8MD-H591A-00-00
Unavailable
10
BAND, BATTERY
2T4-82131-00-00
$8.99
11
IGNITION COIL ASSY
8ES-82310-00-00
$159.99
12
SENSOR, KNOCK
8FE-85780-00-00
Unavailable
13
WIRE, SUB-LEAD
8JP-H2318-00-00
$155.99
14
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
15
SCREW, M6X1.0X25
8JP-RA264-00-00
Unavailable
16
RECTIFIER & REGULA
8JP-H1960-00-00
Unavailable
17
WIRE HARNESS
8KC-H2105-00-00
Unavailable
18
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
18
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
18
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
19
WIRE HARNESS ASSY
8KC-H2590-00-00
Unavailable
20
. ANCHOR, CABLE 1
8JP-G8352-00-00
Unavailable
21
COVER, FUSE BOX
8JP-H2172-00-00
Unavailable
22
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
23
FUSE (15A)
8JP-H2151-00-00
Unavailable
23
FUSE (20A)
8JP-H2151-10-00
Unavailable
23
FUSE (25A)
8JP-H2151-20-00
Unavailable
23
FUSE (30A)
8JP-H2151-30-00
Unavailable
24
RELAY 1
8MS-H2185-00-00
Unavailable
25
RELAY 2
8MS-H2189-00-00
Unavailable
26
EMBLEM 1
8KC-R2391-00-00
Unavailable
27
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
28
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
29
EXTENSION, WIRE HARNESS
8KT-H2586-00-00
Unavailable
30
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
31
COVER, CONNECTER
8JP-H1662-20-00
Unavailable
