- SWENLLJW (SIDEWINDER L TX LE 50TH EARLY BUILD) 8LY3 2018
FRAME 2

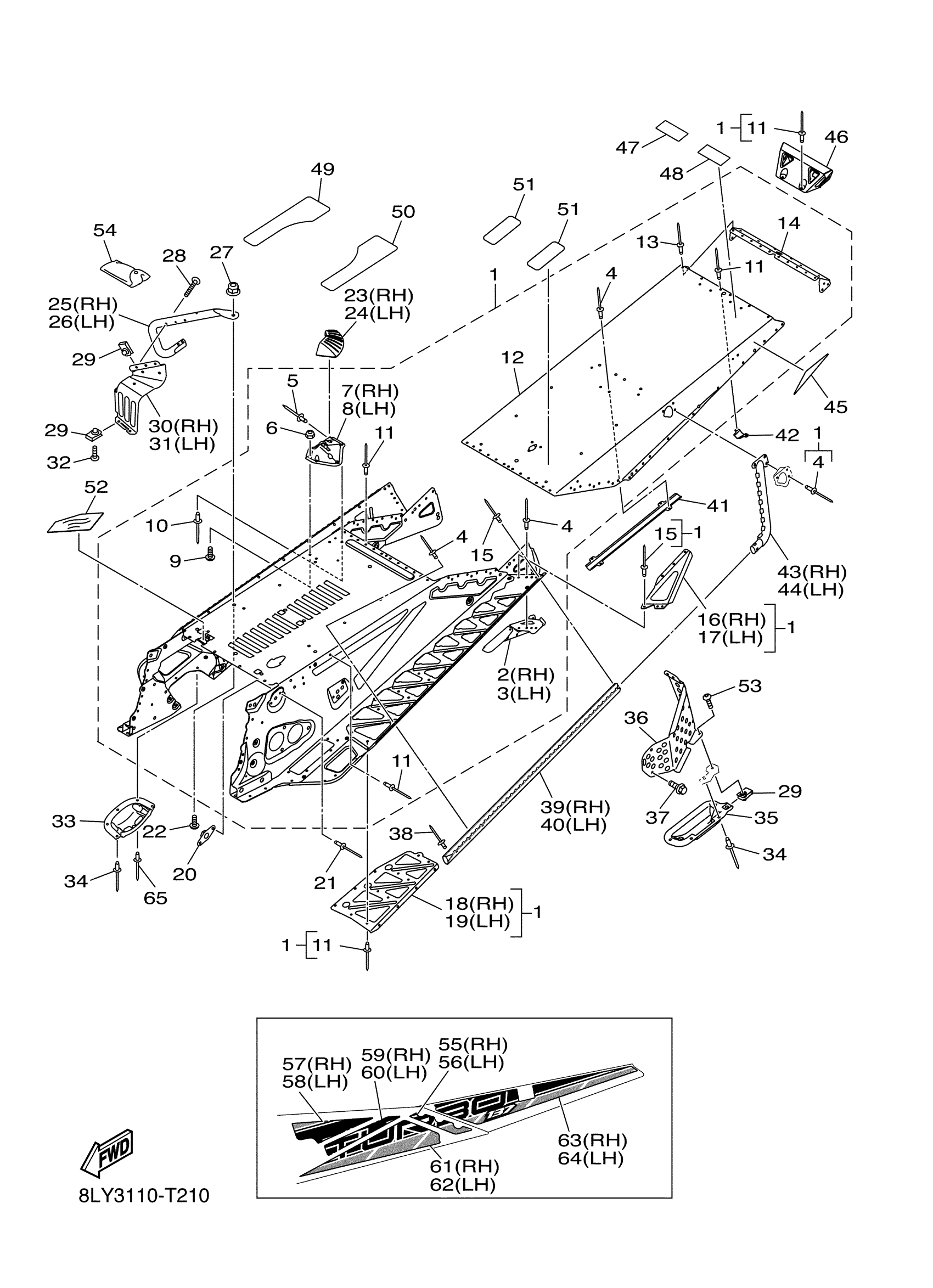

Yamaha SWENLLJW (SIDEWINDER L TX LE 50TH EARLY BUILD) 8LY3 2018 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8LY-F1950-10-00
Unavailable
2
BRACKET,RR.TRACK S
8LY-F1954-00-00
$59.99
3
BRACKET,RR.TRACK S
8LY-F1944-00-00
Unavailable
4
RIVET, 11
8JP-RA520-00-00
$0.70
5
RIVET, 20
8JP-RA532-00-00
$2.82
6
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
7
BRKT., MEMBER 2
8JW-F115M-10-00
Unavailable
8
BRACKET, MEMBER 1
8JW-F115L-10-00
Unavailable
9
. SCREW, 5
8JP-RA239-00-00
Unavailable
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 17
8JP-RA529-00-00
$0.54
12
PANEL, SUB FRAME 1
8LY-F1912-00-00
Unavailable
13
RIVET, 5
8JP-RA514-10-00
$0.70
14
REINEFORCEMENT, FR
8MT-F1923-00-00
$46.99
15
RIVET, 3/16
8JP-RA527-00-00
$2.22
16
GUSSET
8LY-F1134-00-00
Unavailable
17
GUSSET
8LY-F1135-00-00
Unavailable
18
REINEFORCEMENT, FR
8LR-F1921-00-00
Unavailable
19
REINFORCEMENT, FRA
8LR-F1931-00-00
Unavailable
20
BRACKET
8JP-F1919-00-00
Unavailable
21
RIVET, 10
8JP-RA519-00-00
Unavailable
22
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
23
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
24
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
25
REINFORCEMENT, FRA
8KC-F192E-00-00
Unavailable
26
REINFORCEMENT, FRA
8KC-F1929-00-00
Unavailable
27
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
28
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
29
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
30
REINFORCEMENT SUB
8LR-F1996-00-00
Unavailable
31
REINFORCEMENT SUB
8LR-F1995-00-00
Unavailable
32
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
33
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
34
RIVET, 14
8JP-RA523-00-00
Unavailable
35
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
36
PROTECTOR, DISK BR
8LR-F5718-00-00
Unavailable
37
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
38
RIVET, 3/16
8JP-RA526-00-00
Unavailable
39
REINFORCEMENT, RR.
8LY-F1937-00-00
Unavailable
40
REINFORCEMENT, RR.
8LY-F1927-00-00
Unavailable
41
PROTECTER, WIRE HA
8MH-H2589-00-00
Unavailable
42
EXTENSION, WIRE HA
8MG-H258A-00-00
Unavailable
43
GUSSET
8MT-F1137-00-00
Unavailable
44
GUSSET
8MT-F1136-00-00
Unavailable
45
LABEL 1
8JP-F151A-10-00
Unavailable
46
BRACKET, TAILLIGHT
8MT-F117E-00-00
Unavailable
47
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
48
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
49
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
50
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
51
PROTECTOR, FRAME A
8LN-F195A-00-00
Unavailable
52
PROTECTOR 7
8KC-K7557-10-00
Unavailable
53
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
54
TOOL KIT
8JP-F8100-00-00
Unavailable
55
GRAPHIC 8
8MT-F199N-00-00
Unavailable
56
GRAPHIC 7
8MT-F199M-00-00
Unavailable
57
GRAPHIC 4
8MT-F199D-00-00
Unavailable
58
GRAPHIC 3
8MT-F199C-00-00
Unavailable
59
GRAPHIC 6
8MT-F199L-00-00
Unavailable
60
GRAPHIC 5
8MT-F199K-00-00
Unavailable
61
GRAPHIC 2
8MT-F199B-00-00
Unavailable
62
GRAPHIC 1
8MT-F199A-00-00
Unavailable
63
GRAPHIC 10
8LY-F199R-50-00
Unavailable
64
GRAPHIC 9
8LY-F199P-50-00
Unavailable
65
RIVET, 15
8JP-RA524-00-00
Unavailable
