SEAT - LUGGAGE BOX

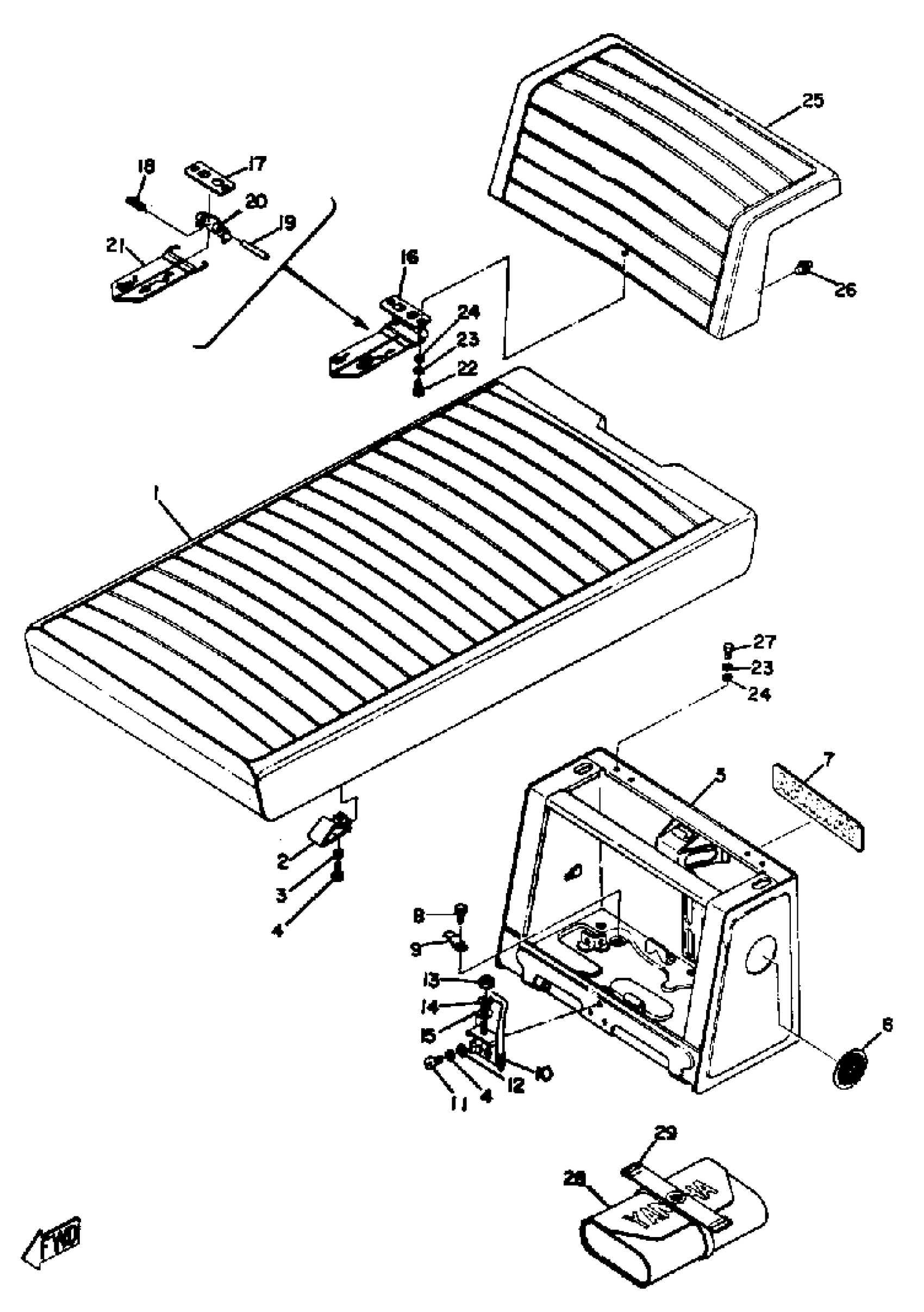

Yamaha SW433E 1971 SEAT - LUGGAGE BOX Diagram
#
1
DOUBLE SEAT ASSEMBLY
(811-24730-00-00)
Unavailable
1
COVER, DOUBLE SEAT
(811-24731-00-00)
Unavailable
2
PLATE, SEAT FITTING
(809-24744-00-00)
Unavailable
3
SCREW, PAN
98507-06014-00
$8.49
4
WASHER, SPRING
92995-06100-00
Unavailable
5
LUGGAGE BOX
(811-77391-00-00)
Unavailable
6
EMBLEM 2
806-77352-00-00
Unavailable
7
EMBLEM 3
806-77353-00-00
Unavailable
8
BOLT (661)
97013-06012-00
$5.60
9
WASHER, LOCK
(806-77396-00-00)
Unavailable
10
BRACKET, SEAT
(810-24738-00-00)
Unavailable
11
SCREW, PAN
98517-06012-00
$3.78
12
WASHER(6TA)
92907-06200-00
$8.49
13
NUT(6TA)
95337-08600-00
$8.49
14
WASHER(JN5)
92907-08100-00
$8.49
15
WASHER(6TC)
92907-08200-00
Unavailable
16
SEAT LEVER ASSEMBLY
(811-24760-00-00)
Unavailable
17
UNAVAILABLE IN PRICE BOOK
(810-24797-00-00)
Unavailable
18
SPRING, SEAT BACK
(810-24794-00-00)
Unavailable
19
PIN
(810-24793-00-00)
Unavailable
20
COVER
(810-24796-00-00)
Unavailable
21
HOOK
(811-24798-00-00)
Unavailable
22
SCREW, PAN
98517-06012-00
$3.78
23
WASHER, SPRING
92907-06100-00
Unavailable
24
WASHER(6TA)
92907-06200-00
$8.49
25
SEAT BACK ASSEMBLY
(811-24790-00-00)
Unavailable
26
STOPPER, CUSHION
(806-24714-00-00)
Unavailable
27
BOLT
97027-05010-00
Unavailable
28
TOOL KIT
(811-28100-00-00)
Unavailable
29
BAND, BATTERY
26L-82131-00-00
Unavailable
