Description

Price

1

SHAFT, WORM

(802-13175-00-00)

Unavailable

2

PIN,DOWEL (137)

93603-22028-00

$3.76

3

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

4

BRACKET, PUMP

(807-13199-00-00)

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

GEAR, PUMP DRIVE

(810-13178-00-00)

Unavailable

7

BELT (810-13189-00)

808-13189-00-00

Unavailable

8

WASHER, WAVE (137)

90206-11016-00

Unavailable

9

PLATE, CAM THRUST

137-13148-00-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

SCREW PAN HEAD

98580-06020-00

$8.49

12

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

13

WASHER, SPRING

92995-06100-00

Unavailable

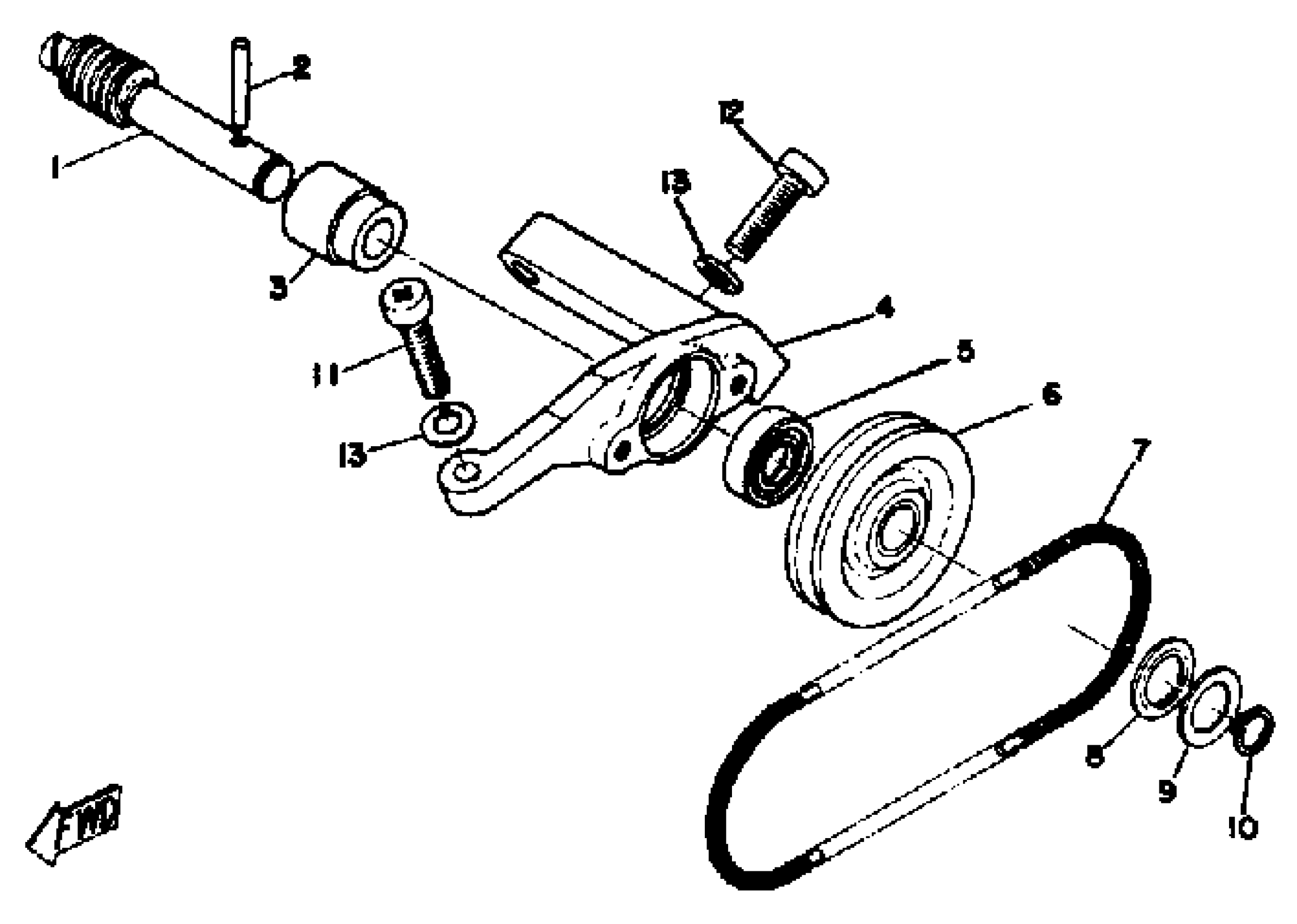

Yamaha SW433E 1971 PUMP GEAR UNIT Diagram

SHAFT, WORM

PIN,DOWEL (137)

METAL, WORM SHAFT OUTER

BRACKET, PUMP

OIL SEAL (10X22X7-137)

GEAR, PUMP DRIVE

BELT (810-13189-00)

WASHER, WAVE (137)

PLATE, CAM THRUST

CIRCLIP(10W)

SCREW PAN HEAD

SCREW, PAN HEAD (76T)

WASHER, SPRING
