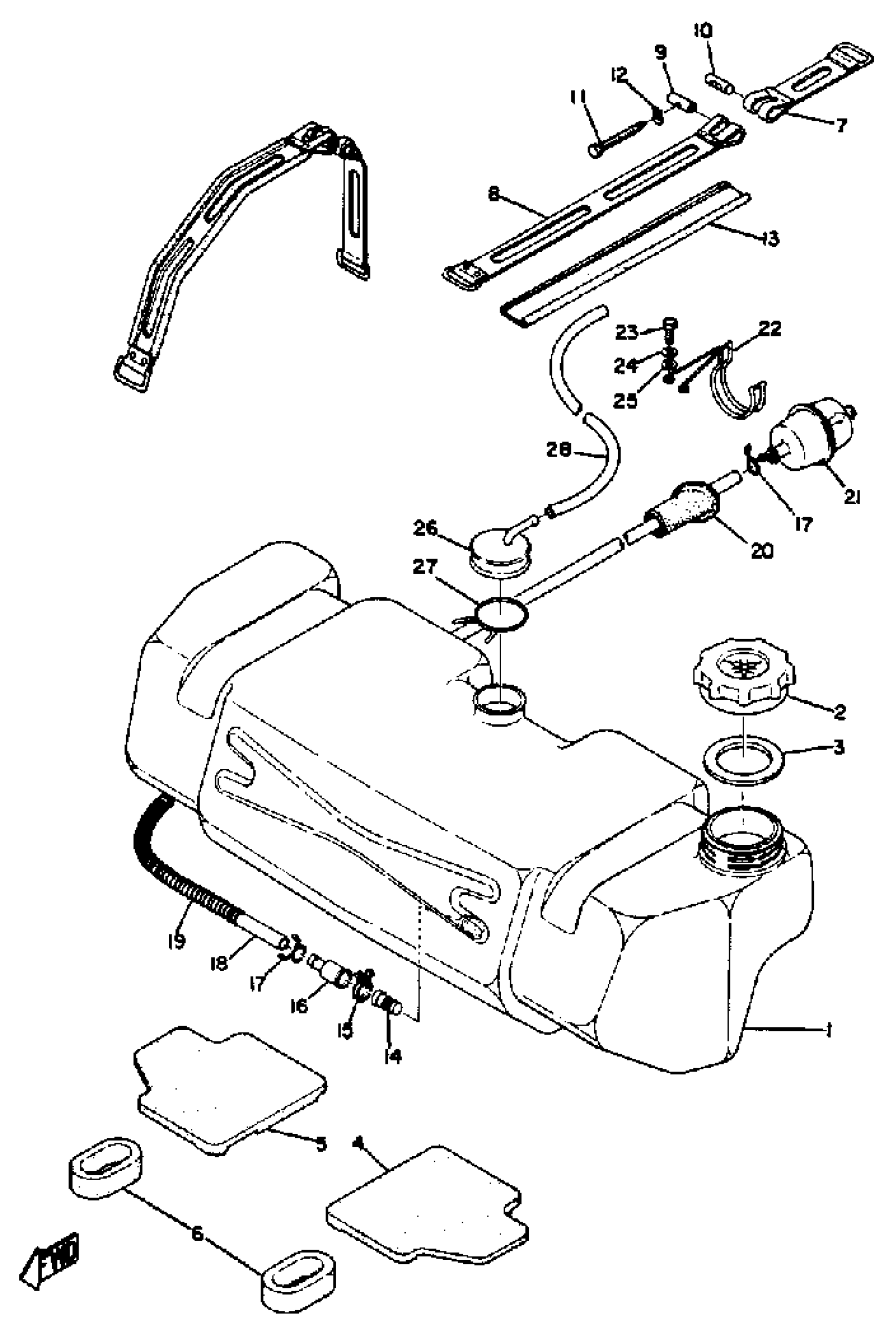

Yamaha SW433E 1971 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(811-24111-00-00)

Unavailable

1

CLIP (8L2)

90467-08017-00

$10.49

2

BODY, CAP

J10-24611-00-00

Unavailable

3

GASKET, CAP

(806-24612-00-00)

Unavailable

4

DAMPER, LOCATING 1

(811-24181-00-00)

Unavailable

5

DAMPER, LOCATING 2

(811-24182-00-00)

Unavailable

6

DAMPER, LOCATING 4

(807-24184-00-00)

Unavailable

7

BAND, TNK FITTING 1

810-24173-00-00

Unavailable

8

BAND, TNK FITTING 2

(811-24199-00-00)

Unavailable

9

CLAMP

806-24135-00-00

Unavailable

10

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

Unavailable

11

SCREW, HEXAGON

(90153-05002-00)

Unavailable

12

WASHER, LOCK

(90215-05058-00)

Unavailable

13

DAMPER, LOCATING 3

(807-24183-00-00)

Unavailable

14

NET, FILTER 1

(810-24514-00-00)

Unavailable

15

CLIP, PIPE 4

810-24359-00-00

Unavailable

16

PIPE, SUCTION 1

807-24335-00-00

Unavailable

17

CLIP (8J7)

90467-11009-00

Unavailable

18

PIPE 4

(806-24314-00-00)

Unavailable

19

PROTECTOR, PIPE

(810-24326-00-00)

Unavailable

20

PROTECTOR, PIPE

(810-24327-00-00)

Unavailable

21

FILTER ASSY

1FK-24560-10-00

Unavailable

22

HOLDER, FILTER

(811-24558-00-00)

Unavailable

23

BOLT, HEXAGON

97013-05010-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

. WASHER, PLAIN

92990-05200-00

Unavailable

26

BODY, CAP

810-24644-00-00

Unavailable

27

CLIP, PIPE 3

(810-24358-00-00)

Unavailable

28

HOSE

90446-09015-00

Unavailable
