FLYWHEEL MAGNETO

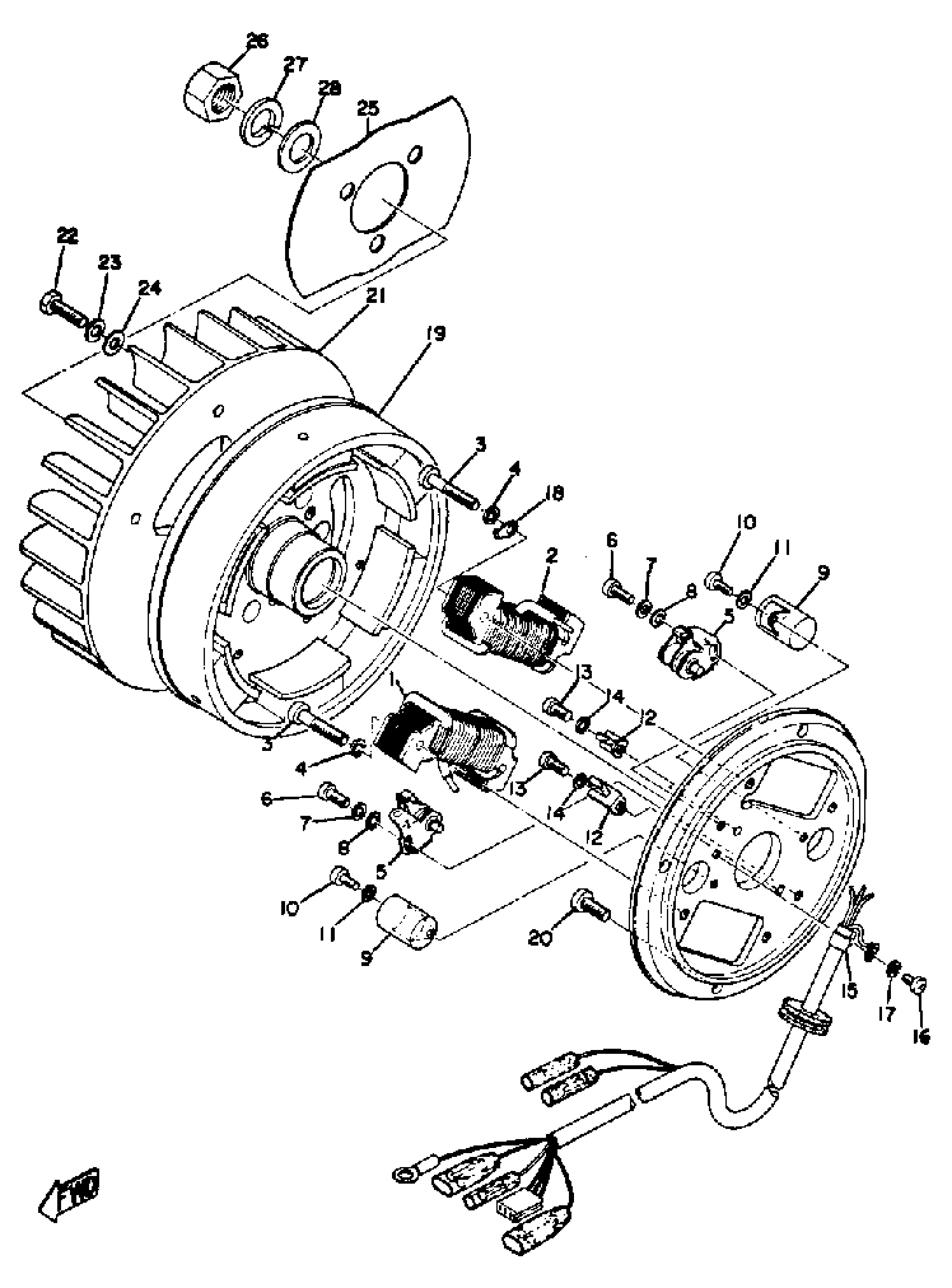

Yamaha SW433E 1971 FLYWHEEL MAGNETO Diagram
#
1
FLYWHL MAGNETO ASSEMBLY
(810-81300-20-00)
Unavailable
1
COIL, SOURCE
(810-81312-20-00)
Unavailable
2
. COIL, LIGHTING 1
810-81313-20-00
Unavailable
3
SCREW, PAN HEAD
98517-05030-00
$10.49
4
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
5
. CONTACT BRKR ASSEMBLY
806-81321-20-00
Unavailable
6
SCREW, PAN HEAD
110-81346-21-00
$5.49
7
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
8
YBS66-4 WASHER, PLAIN
92990-04200-00
$1.86
9
. CONDENSER 1
802-81325-90-00
Unavailable
10
SCREW, PAN HEAD
110-81346-21-00
$5.49
11
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
12
. LUBRICATOR
116-81331-20-00
Unavailable
13
SCREW, PAN HEAD
110-81346-21-00
$5.49
14
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
15
CLAMP, LEAD
104-81328-20-00
Unavailable
16
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
18
PLATE, TIMING
(810-81332-20-00)
Unavailable
19
ROTOR ASSEMBLY
(810-81350-20-00)
Unavailable
20
SCREW, PAN
98507-06014-00
Unavailable
21
FAN
818-12611-00-00
Unavailable
22
BOLT
(90101-06006-00)
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
WASHER, PLATE
90201-06M08-00
Unavailable
25
COVER, HOLE
(807-81362-00-00)
Unavailable
26
NUT
90170-16425-00
Unavailable
27
WASHER(JN5)
92907-16100-00
Unavailable
28
WASHER, PLATE (32N)
90201-163G6-00
Unavailable
