Description

Price

1

CASE, FAN

(811-12621-00-00)

Unavailable

2

CASE, FAN 2

(811-12622-00-00)

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

BOLT

(807-12623-00-00)

Unavailable

5

WASHER, LOCK 1

(807-12624-00-00)

Unavailable

6

WASHER, LOCK 2

(807-12625-00-00)

Unavailable

7

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

SCREW PAN HEAD

98580-06040-00

$8.49

9

DEFLECTOR 1

(807-12631-00-00)

Unavailable

10

AIR SHROUD, CYLINDER 1

(811-12651-00-00)

Unavailable

11

AIR SHROUD, CYLINDER 2

(811-12652-00-00)

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

SCREW PAN HEAD

98580-06010-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

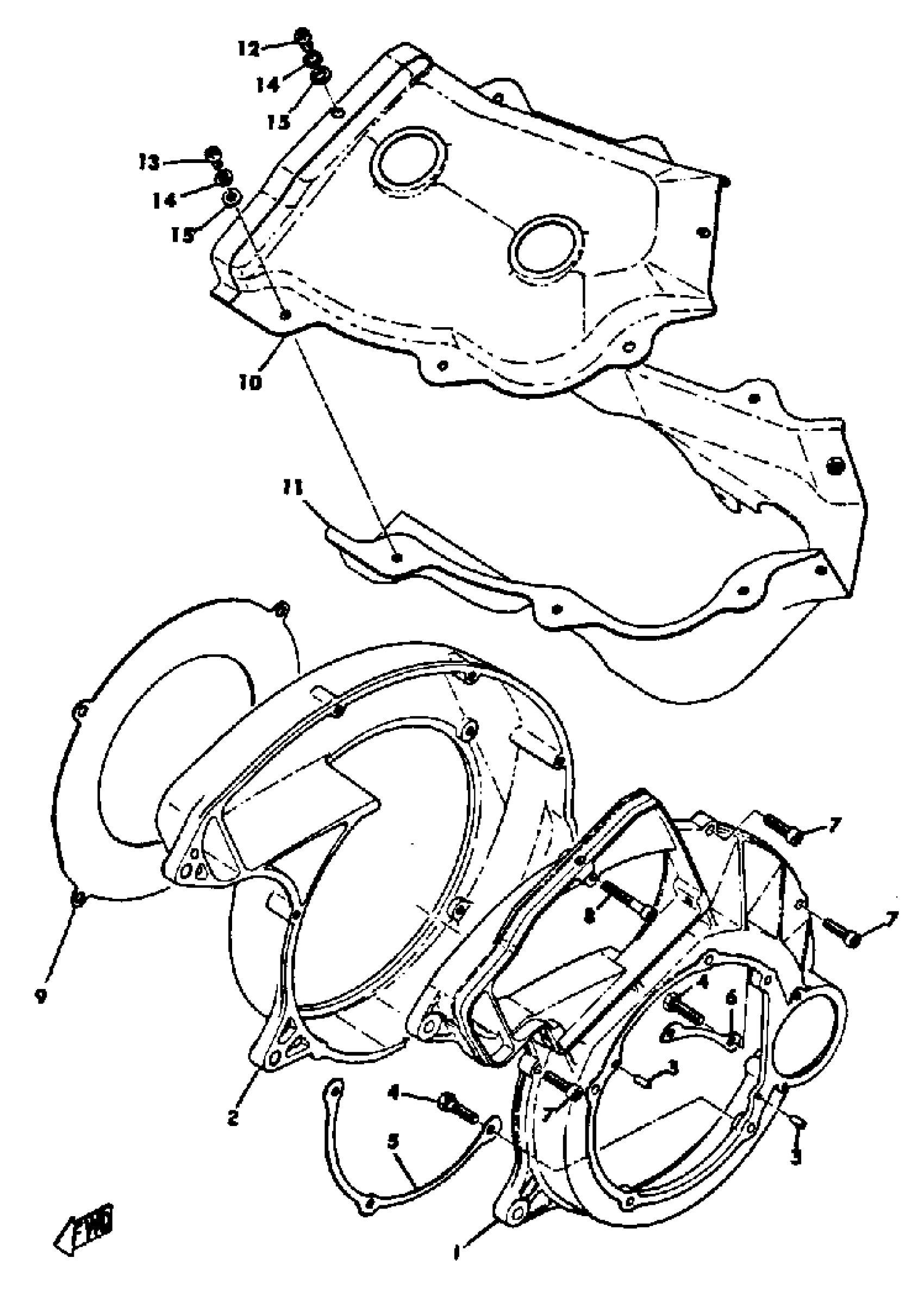

Yamaha SW433E 1971 FAN CASE - AIR SHROUD Diagram

CASE, FAN

CASE, FAN 2

PIN,DOWEL (137)

BOLT

WASHER, LOCK 1

WASHER, LOCK 2

SCREW, PAN HEAD (76T)

SCREW PAN HEAD

DEFLECTOR 1

AIR SHROUD, CYLINDER 1

AIR SHROUD, CYLINDER 2

SCREW, PAN HEAD(62J)

SCREW PAN HEAD

WASHER, SPRING

YBS66-6 WASHER, PLAIN
