1971 Yamaha SW433E Engine Bracket Diagram

← All diagrams

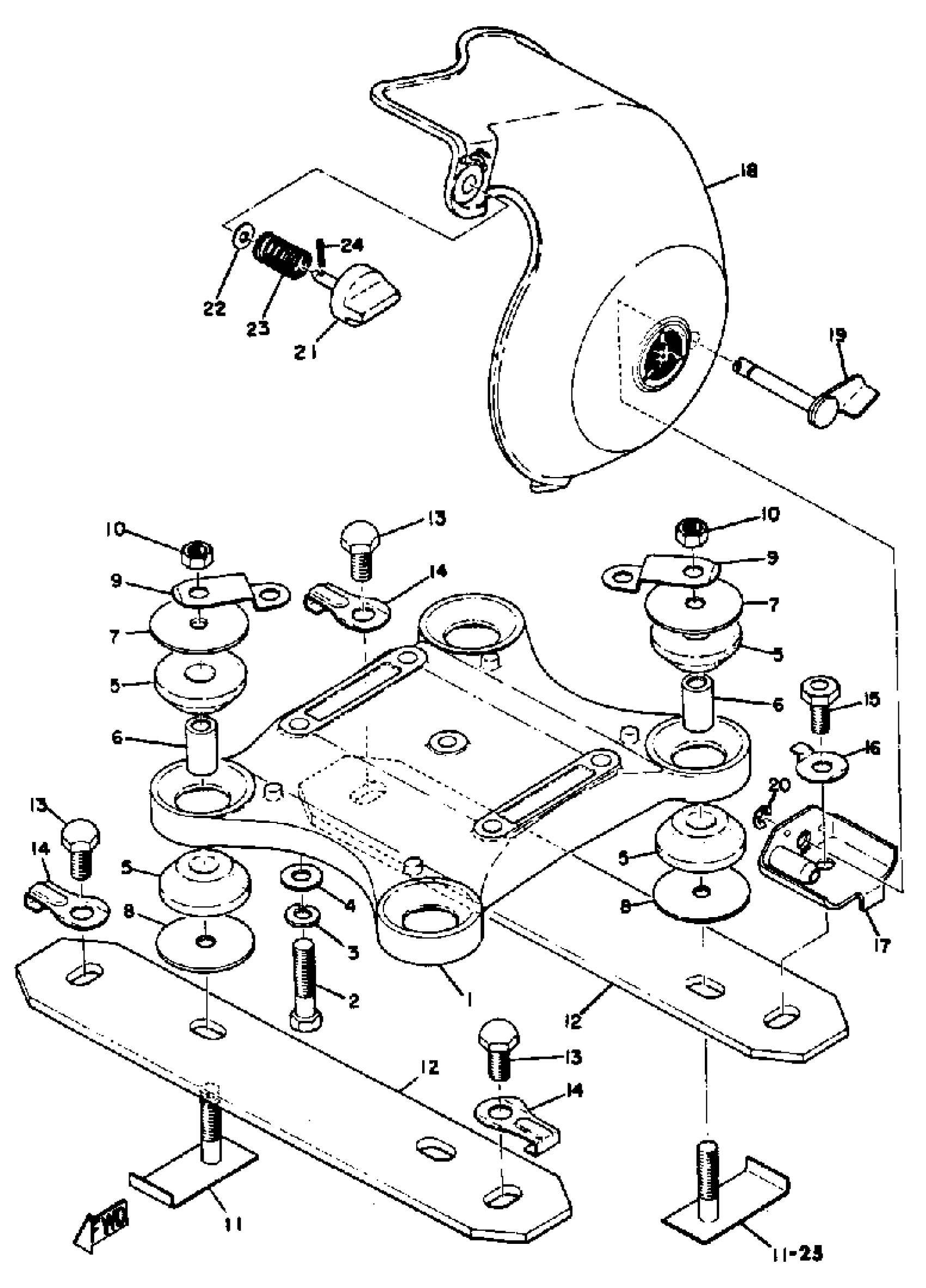

Find the part on the Engine Bracket diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(810-21411-00-00)

1
Out of stock

2

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

3

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

4

1

$3.00

In stock

5

DAMPER, ENG MOUNT 1

807-15316-00-00

1
Out of stock

6

SPACER

90560-10020-00

1
Out of stock

7

WASHER, LOCK

(807-21491-00-00)

1
Out of stock

8

WASHER, PLATE (807-21492-00)

90201-10152-00

1
Out of stock

9

GASKET, BLIND PLG 2

(810-15176-00-00)

1
Out of stock

10

NUT (682)

95380-10700-00

1

$5.78

In stock

11

BOLT, ENG MNTNG 2

(807-21482-00-00)

1
Out of stock

12

BRACKET, ENGINE 2

(807-21419-00-00)

1
Out of stock

13

BOLT(8BT)

97017-10020-00

1
Out of stock

14

WASHER, LOCK

(810-21492-00-00)

1
Out of stock

15

BOLT

90101-10055-00

1
Out of stock

16

WASHER 823214910000

90208-10012-00

—

$13.20

In stock

16

WASHER, LOCK

90215-10073-00

1
Out of stock

17

BRACKET 1

(806-77315-01-00)

1
Out of stock

18

GUARD, DRIVE

(810-77311-01-00)

1
Out of stock

19

ARM, FITTING

806-77314-00-00

1
Out of stock

20

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

21

KNOB

(806-77324-00-00)

1
Out of stock

22

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

23

SPRING 1

806-77325-00-00

1
Out of stock

24

PIN, SPRING

91690-25016-00

—
Out of stock

25

BOLT, ENG MNTNG 3

(810-21483-00-00)

1
Out of stock
← Crankcase - Cylinder Engine Cowl →
