TRANSMISSION

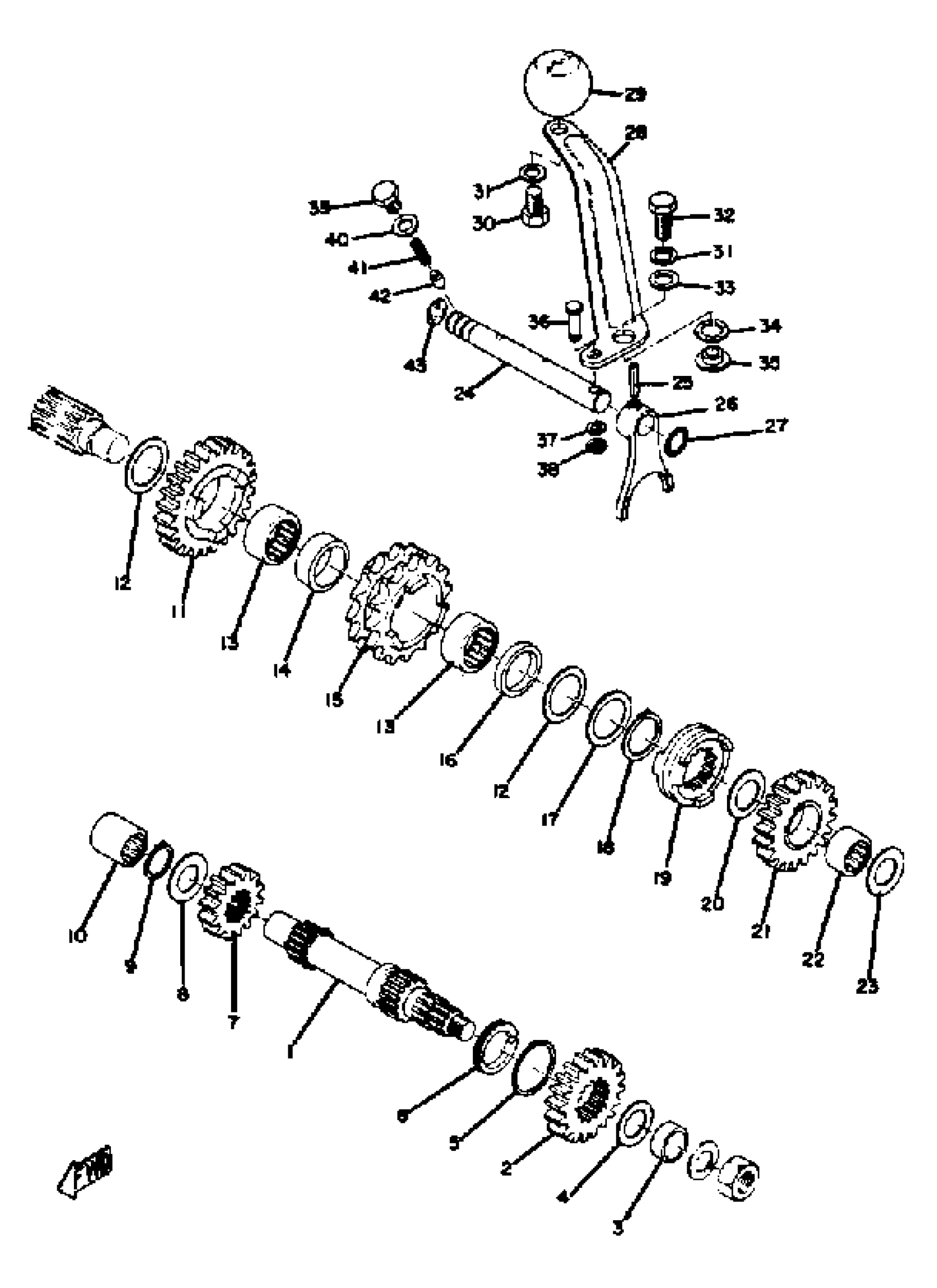

Yamaha SW433C 1973 TRANSMISSION Diagram
#
1
AXLE, DRIVE
838-17421-00-00
Unavailable
2
GEAR, 2ND WHEEL
826-17221-00-00
Unavailable
3
COLLAR
90387-17134-00
Unavailable
4
SHIM 1
150-17417-00-02
Unavailable
4
SHIM 1
(150-17417-00-03)
Unavailable
5
CIRCLIP(4A6)
99009-30400-00
$8.49
6
COLLAR
806-17645-00-00
Unavailable
7
GEAR, 3RD WHEEL
826-17231-00-00
Unavailable
8
SHIM
826-17219-00-00
Unavailable
9
CIRCLIP(1AR)
99009-15400-00
$8.49
10
BEARING, CYLINDER.#20
93320-31501-00
Unavailable
11
GEAR, 3RD PINION
826-17131-00-00
Unavailable
12
SHIM
826-17229-00-00
Unavailable
13
BEARING, CYLINDER.#15
93315-22414-00
Unavailable
14
COLLAR
90387-24183-00
Unavailable
15
SPRKT, CHAIN DR 14T
826-17682-40-00
Unavailable
15
SPRKT, CHAIN DR 15T
(826-17682-50-00)
Unavailable
16
COLLAR
(90387-24182-00)
Unavailable
17
SHIM 3
826-17238-00-00
Unavailable
18
CIRCLIP
99009-24400-00
Unavailable
19
DOG, TRANS SHIFT
826-17492-00-00
Unavailable
20
WASHER, PLATE(39K)
90201-191J4-00
Unavailable
21
GEAR, 2ND PINION
826-17121-00-00
Unavailable
22
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
Unavailable
23
SHIM 1
136-17417-00-10
Unavailable
24
BAR, SHIF FRK GDE 1
(826-18531-00-00)
Unavailable
25
PIN, SPRING
91690-40020-00
Unavailable
26
FORK, SHIFT 1
826-18511-01-00
Unavailable
27
O-RING (137)
93210-12014-00
Unavailable
28
LEVER
838-18198-00-00
Unavailable
29
KNOB, CHANGE
(826-18199-00-00)
Unavailable
30
BOLT(62E)
97013-08012-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
BOLT(JA9)
90101-08691-00
Unavailable
33
SPACER
(90560-08065-00)
Unavailable
34
WASHER, WAVE (17W)
90206-12074-00
Unavailable
35
SPACER
90560-08067-00
Unavailable
36
PIN, SPEC''L SHAPE
(90249-06019-00)
Unavailable
37
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
38
CIRCLIP(22K)
99080-05600-00
Unavailable
39
BOLT(8X2)
90101-08344-00
Unavailable
40
GASKET
90430-08023-00
Unavailable
41
SPRING COMPRESSION826181830000
90501-10060-00
Unavailable
42
PIN, SPEC''L SHAPE
90249-07004-00
Unavailable
43
PLUG, EXPANSION
(90330-16002-00)
Unavailable
