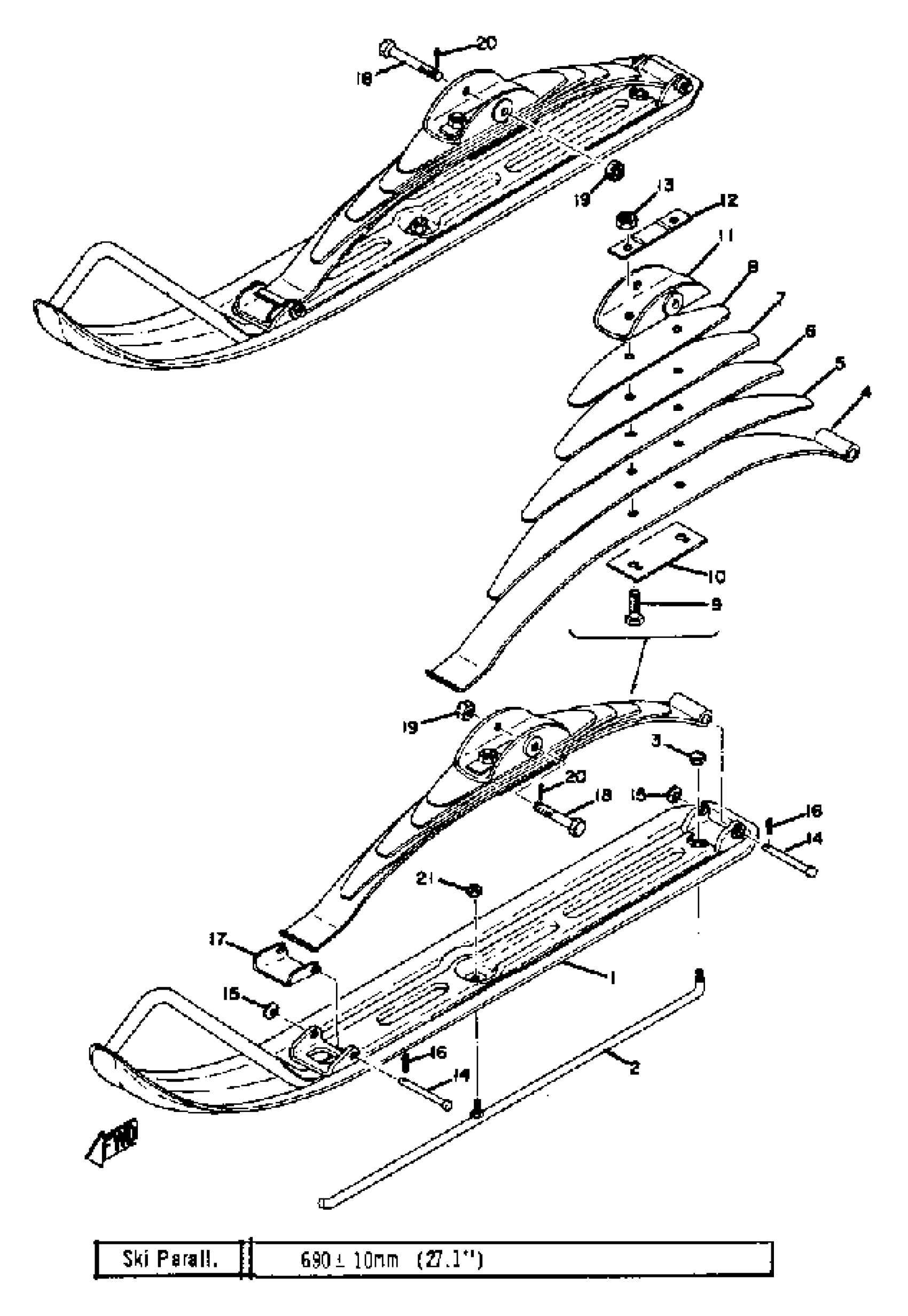

Yamaha SW433C 1973 SKI Diagram
#
Description
Price
1
SPRING ASSEMBLY 1
(811-23760-00-00)
Unavailable
1
SKI 1
(838-23710-01-00)
Unavailable
2
SPRING ASSEMBLY 2
(811-23770-00-00)
Unavailable
2
RUNNER 1
838-23731-03-00
Unavailable
4
. LEAF 1
811-23761-00-00
Unavailable
5
LEAF 2
(811-23762-00-00)
Unavailable
6
. LEAF 3
811-23763-00-00
Unavailable
7
LEAF 3
(810-23763-00-00)
Unavailable
8
LEAF 4
(810-23764-00-00)
Unavailable
9
BOLT
90109-105E9-00
Unavailable
10
. SEAT, SPRING 1
802-23768-00-00
Unavailable
11
. SADDLE 1
806-23766-00-00
Unavailable
12
. WASHER, SPEC''L SHAP
90209-10069-00
Unavailable
14
PIN, CLEVIS (801-23733-00)
90240-08035-00
Unavailable
15
WASHER(6TC)
92907-08200-00
Unavailable
16
PIN COTTER
91490-30025-00
Unavailable
17
PLATE, WEAR 1
802-23735-00-00
Unavailable
18
BOLT, WITH HOLE
90102-10023-00
Unavailable
19
NUT, SLOTTED
95306-10900-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
NUT(6TA)
95337-08600-00
Unavailable
