SHROUD

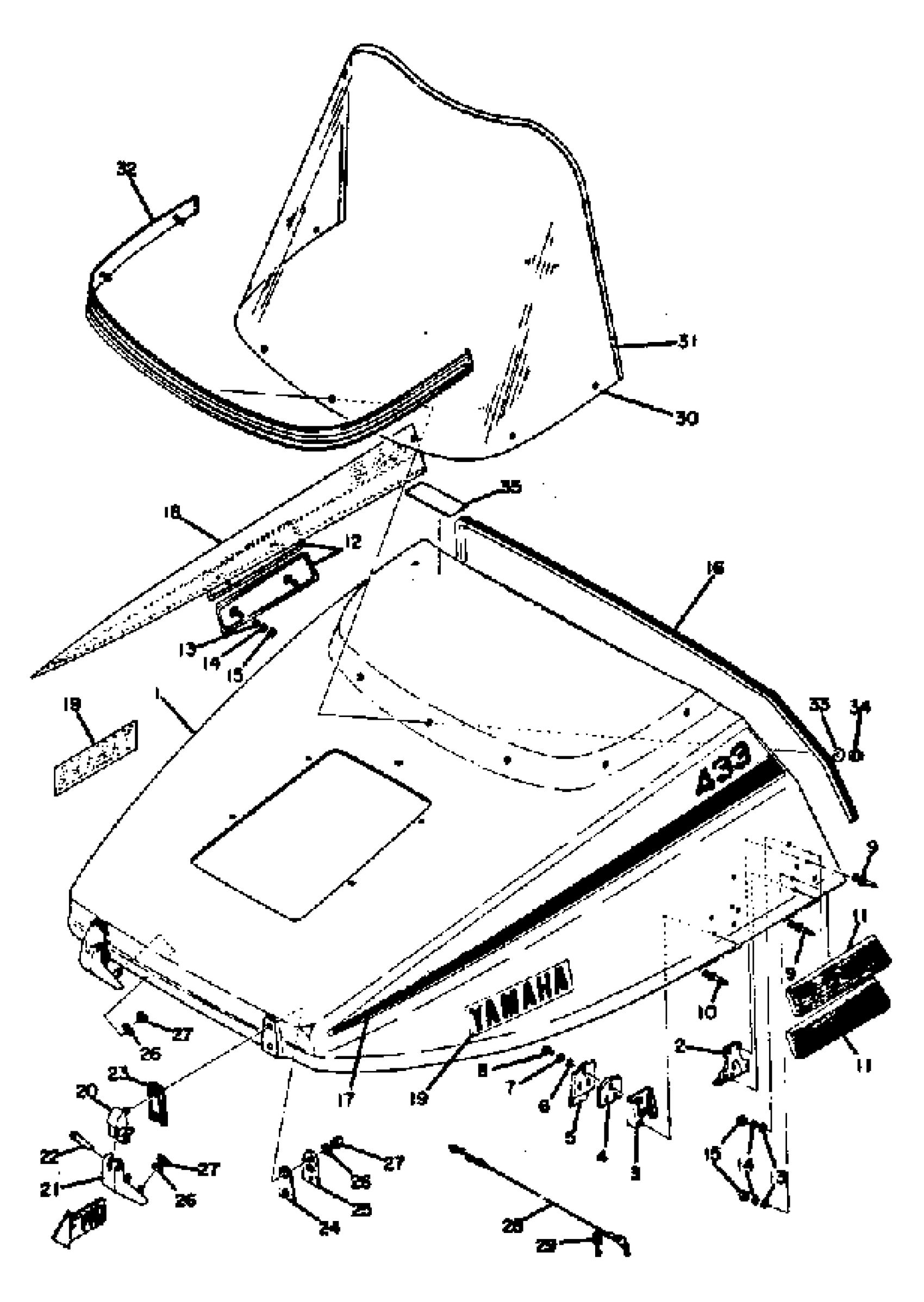

Yamaha SW433C 1973 SHROUD Diagram
#
1
SHROUD
838-77111-00-00
Unavailable
2
. BODY, LATCH 1
806-77171-00-00
Unavailable
3
CLAMP 4
(811-77138-00-00)
Unavailable
4
WASHER 2
810-77179-00-00
Unavailable
5
CLAMP 2
810-77136-00-00
Unavailable
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
BOLT, HEXAGON
97013-05010-00
$0.59
9
RIVET, BLIND
90267-40936-00
Unavailable
10
RIVET, BLIND
90267-40936-00
Unavailable
11
LOUVER 1
(838-77131-00-00)
Unavailable
12
LOUVER 2
838-77132-00-00
Unavailable
13
. WASHER, PLAIN
92990-05200-00
Unavailable
14
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
15
NUT, HEXAGON (663)
95380-05600-00
$8.49
16
TRIM 2
(838-77166-00-00)
Unavailable
17
ORNAMENT 1
838-77163-00-00
Unavailable
18
ORNAMENT 2
838-77164-00-00
Unavailable
19
EMBLEM 7
(838-77357-00-00)
Unavailable
20
HINGE 1
(806-77145-00-00)
Unavailable
21
HINGE 3
806-77147-00-00
Unavailable
22
PIN (806-77157-00)
90243-05002-00
Unavailable
23
DAMPER 1
(806-77198-00-00)
Unavailable
24
DAMPER 2
810-77199-00-00
Unavailable
25
PLATE, BACK UP 1
810-77153-00-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
STOPPER, SHROUD
(838-77118-00-00)
Unavailable
29
CLAMP,ROD
838-77159-00-00
Unavailable
30
WINDSHIELD
(838-77210-01-00)
Unavailable
31
TOOL
UNA-VAILA-BL-EI
Unavailable
32
TRIM LOWER ASSEMBLY
(838-77220-00-00)
Unavailable
33
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
34
NUT, NYLON
95707-05300-00
Unavailable
35
LABEL, SAFETY
288-21659-00-00
Unavailable
35
WINDSHEALD COMP
(850-77210-01-00)
Unavailable
